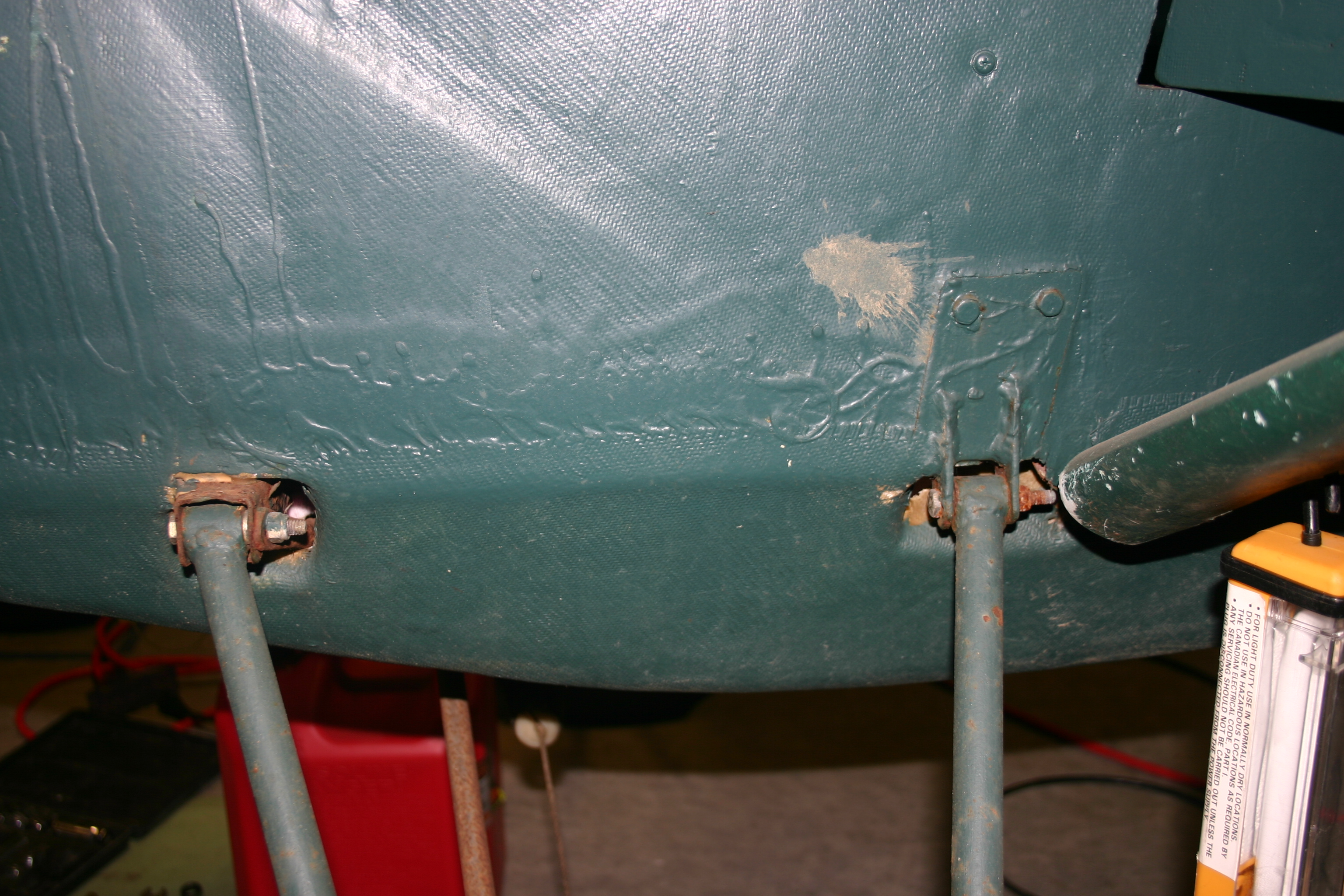

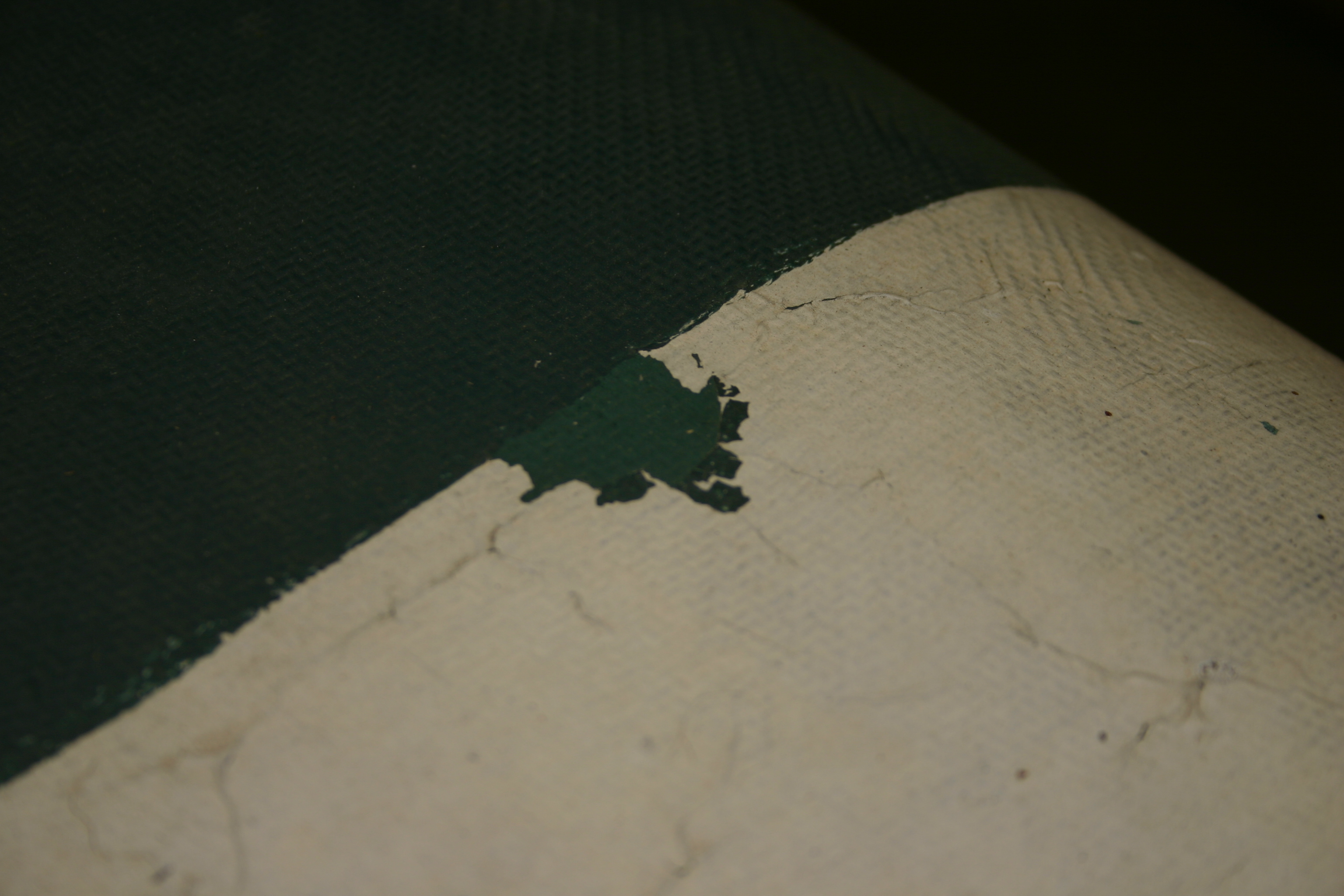

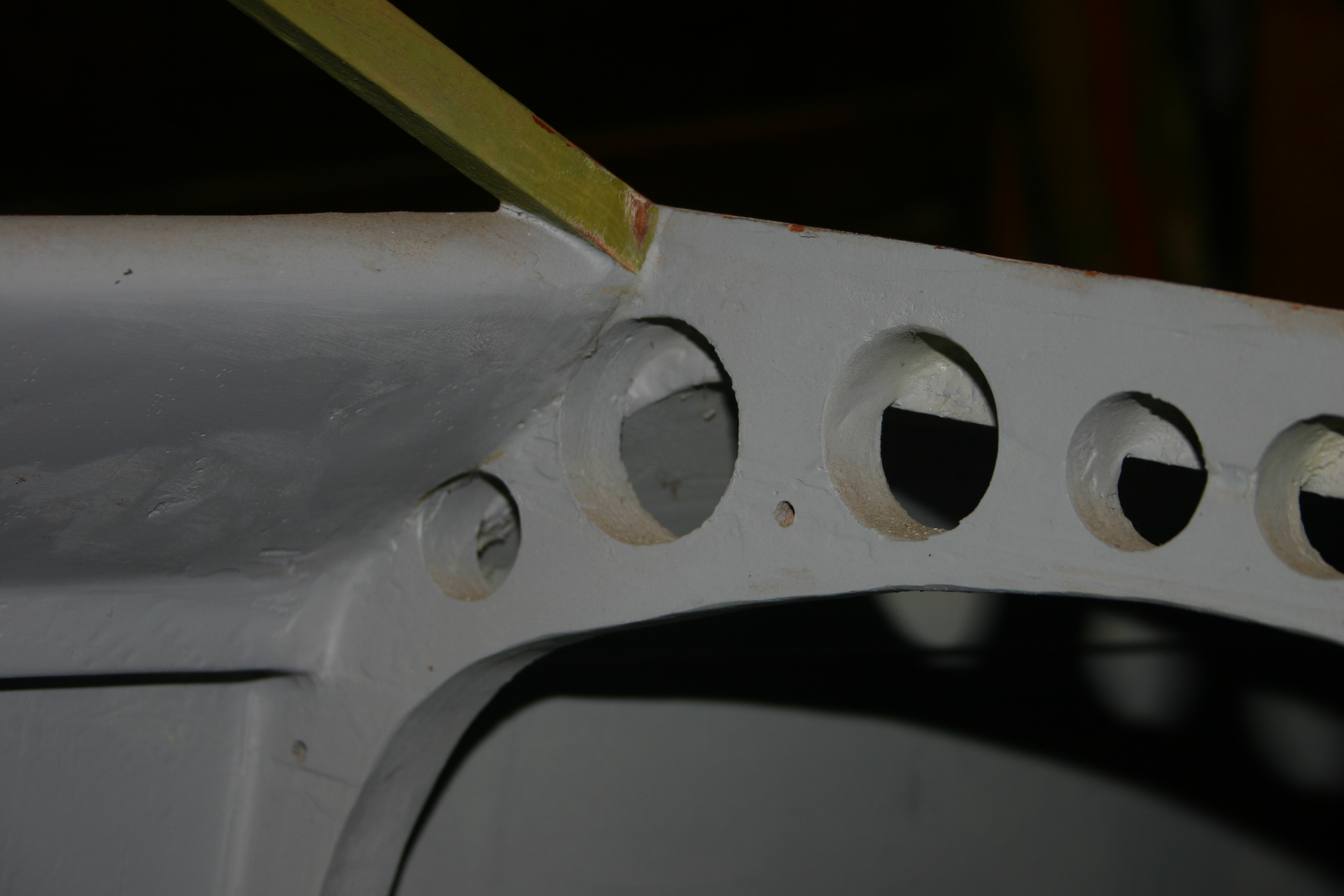

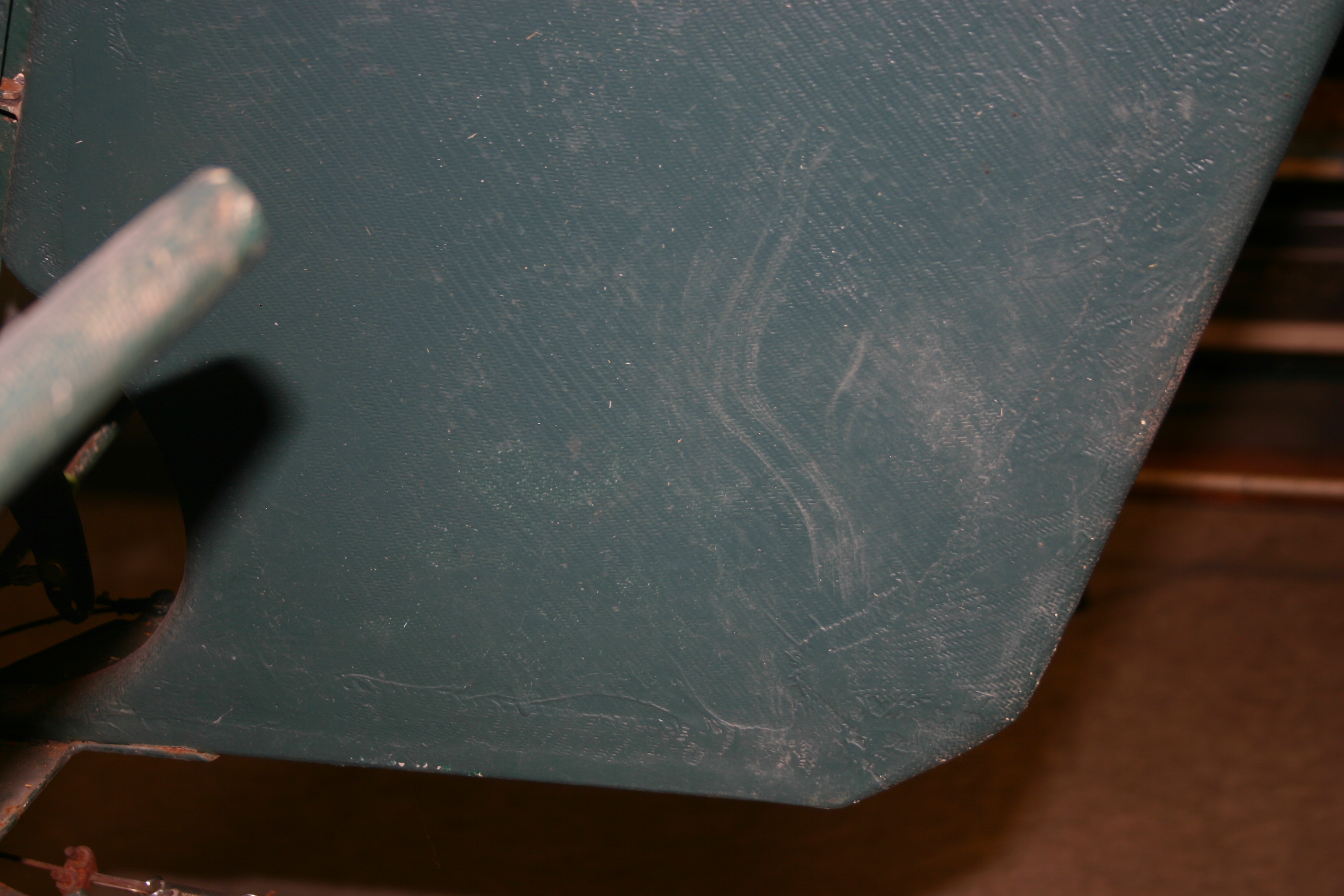

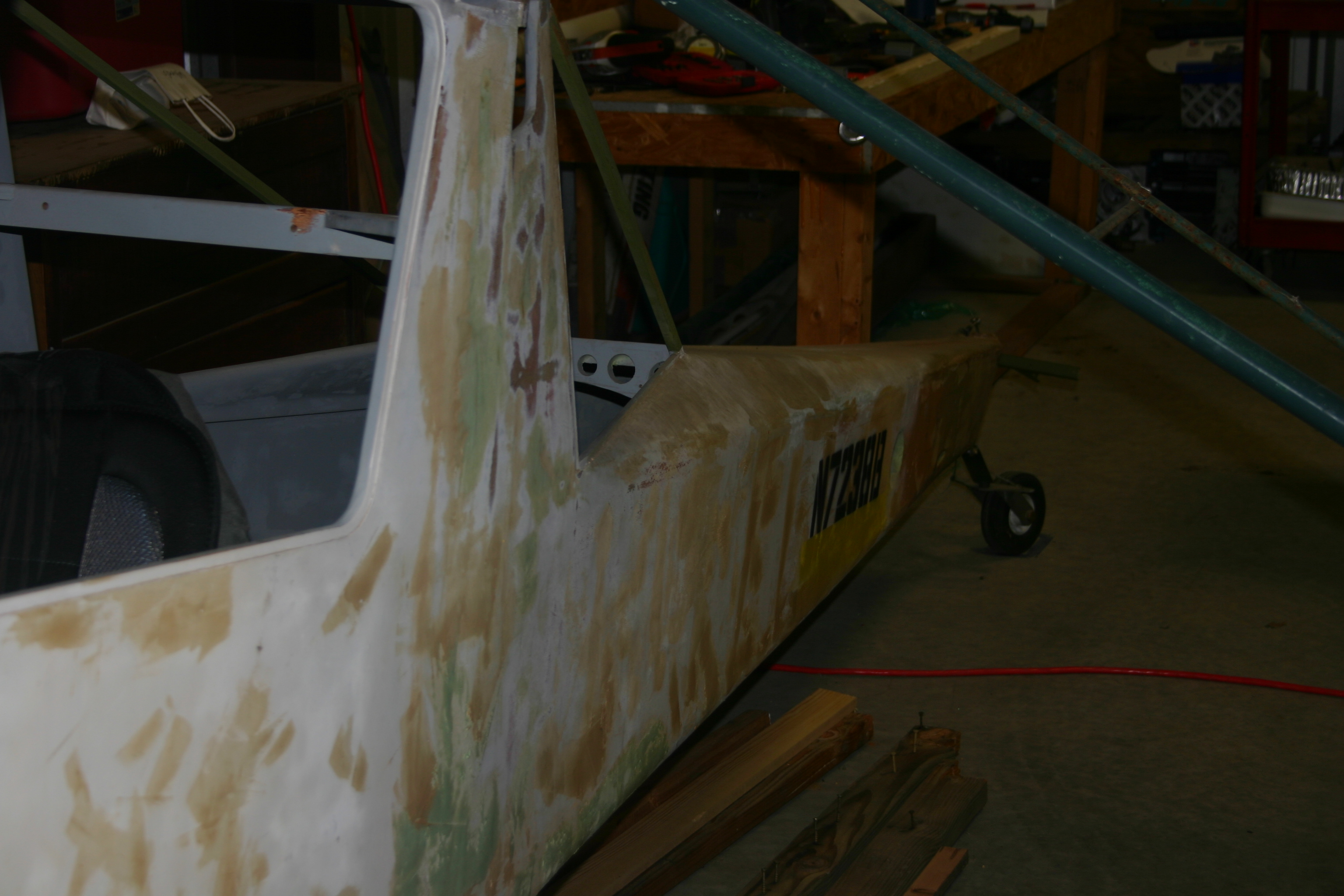

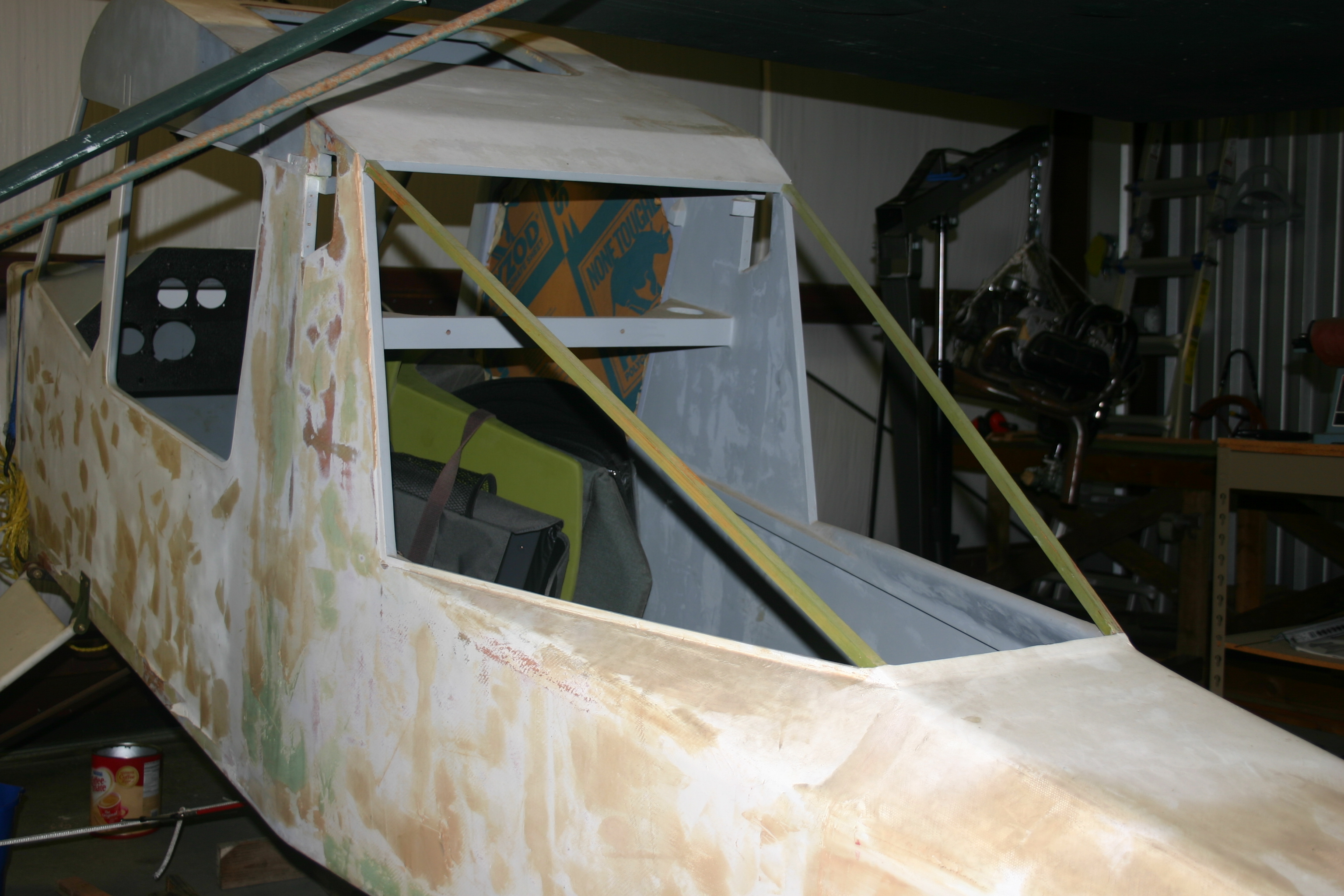

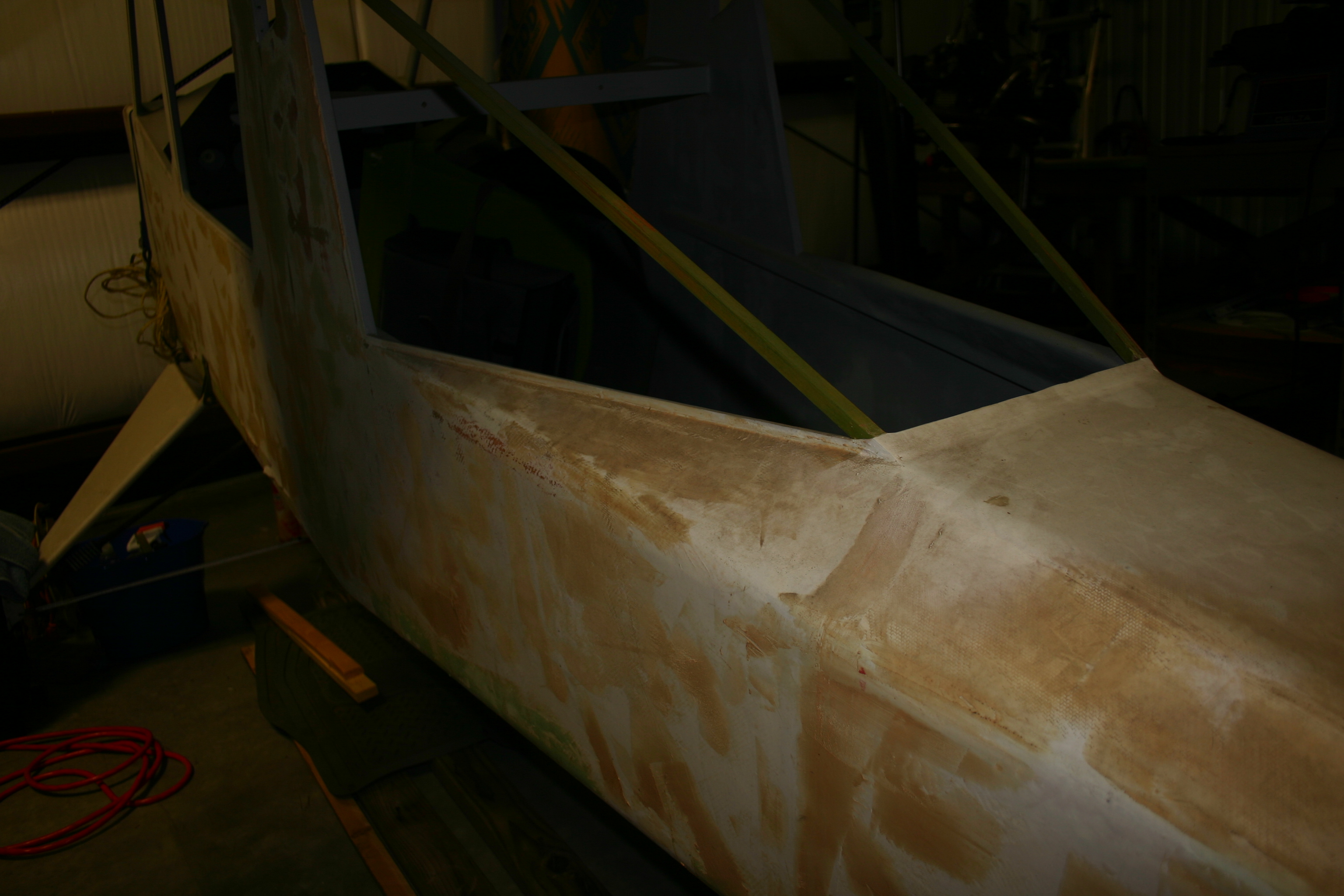

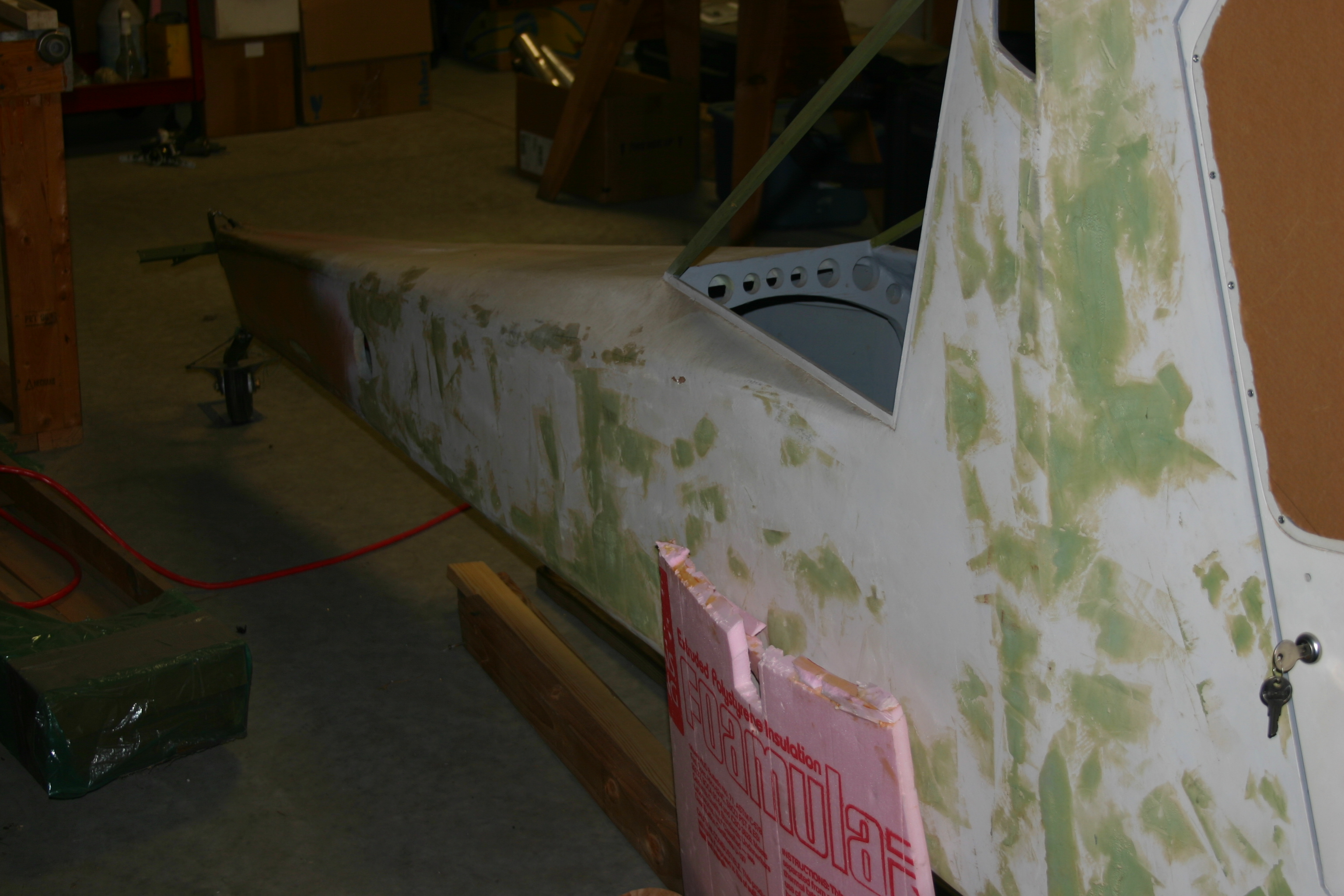

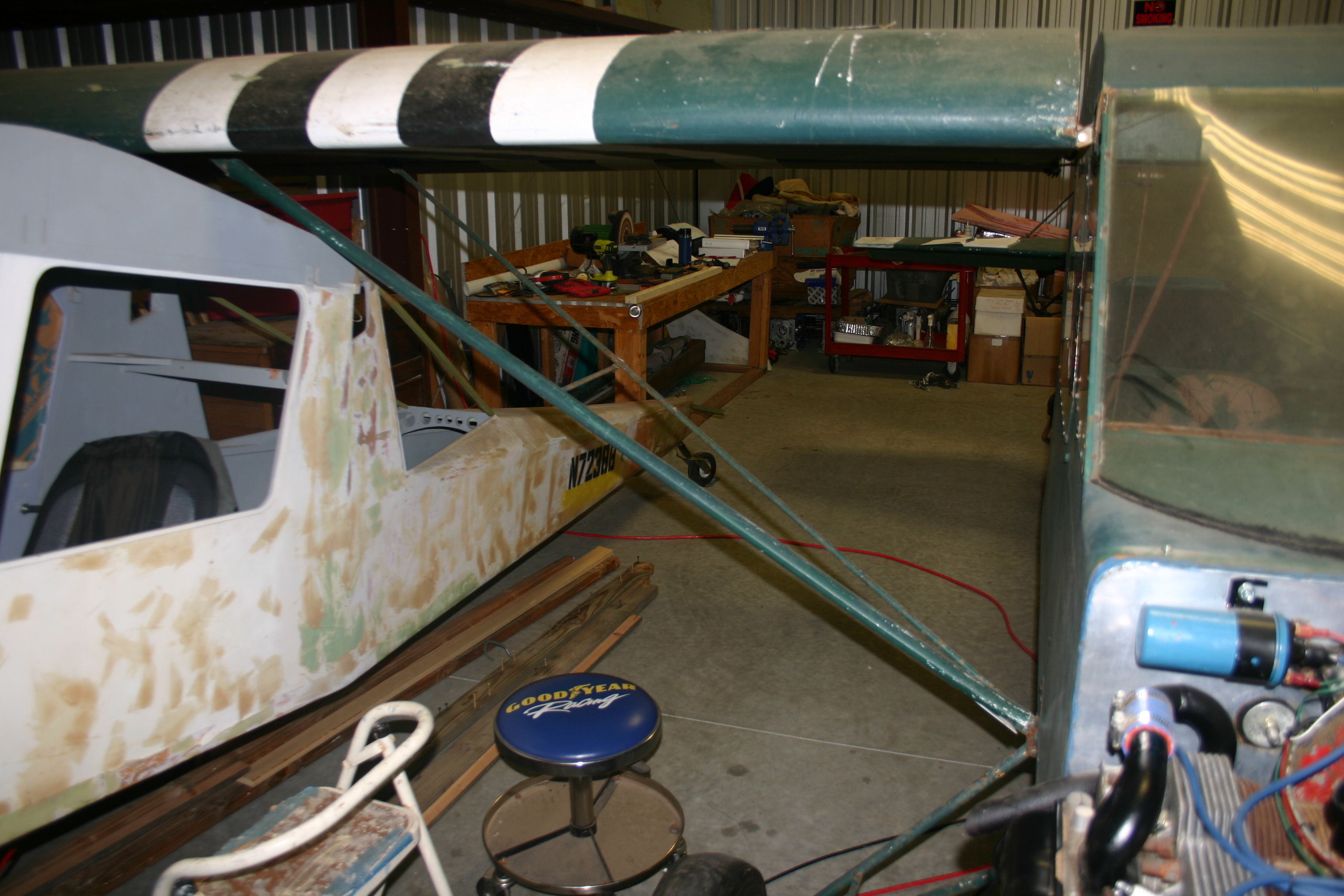

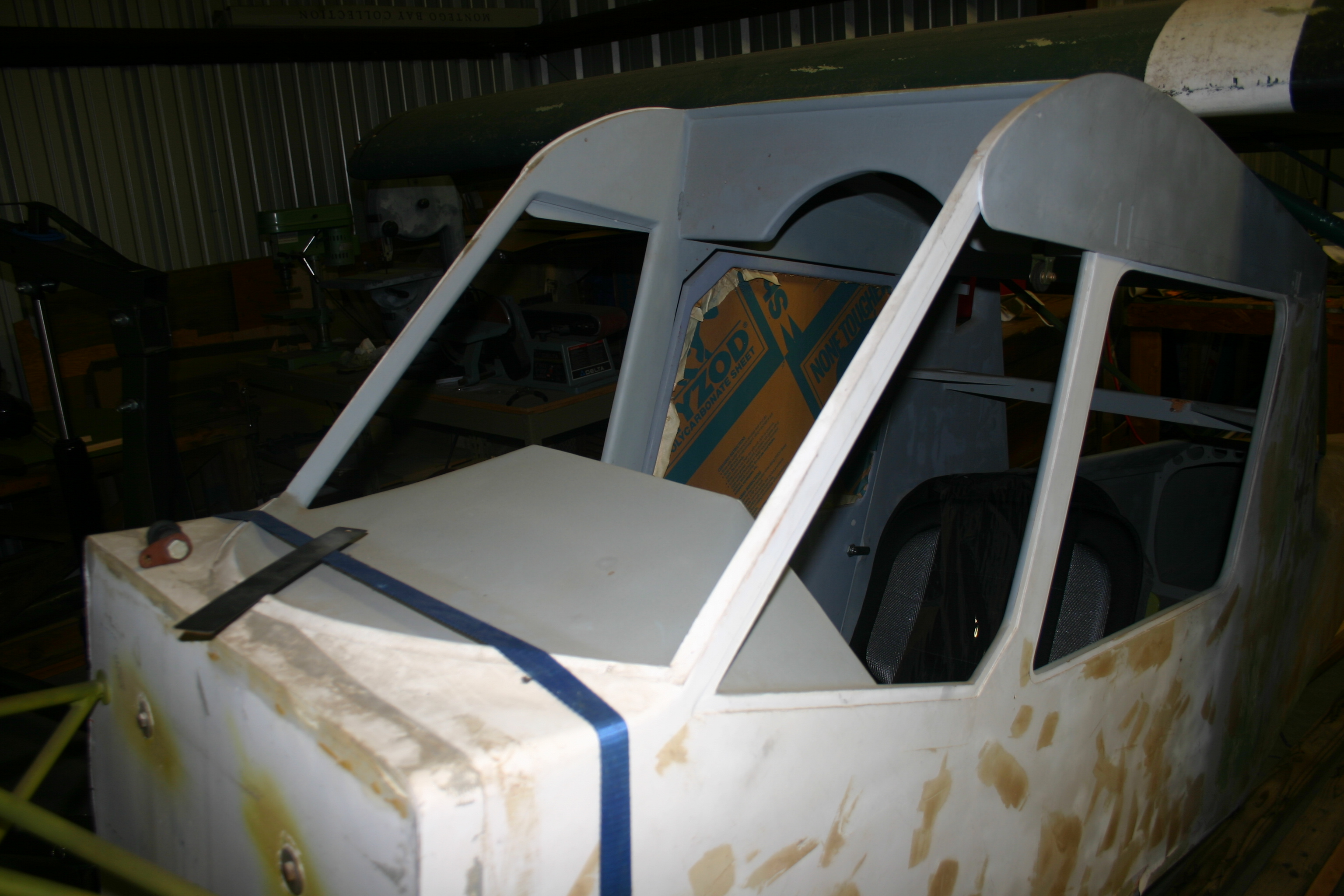

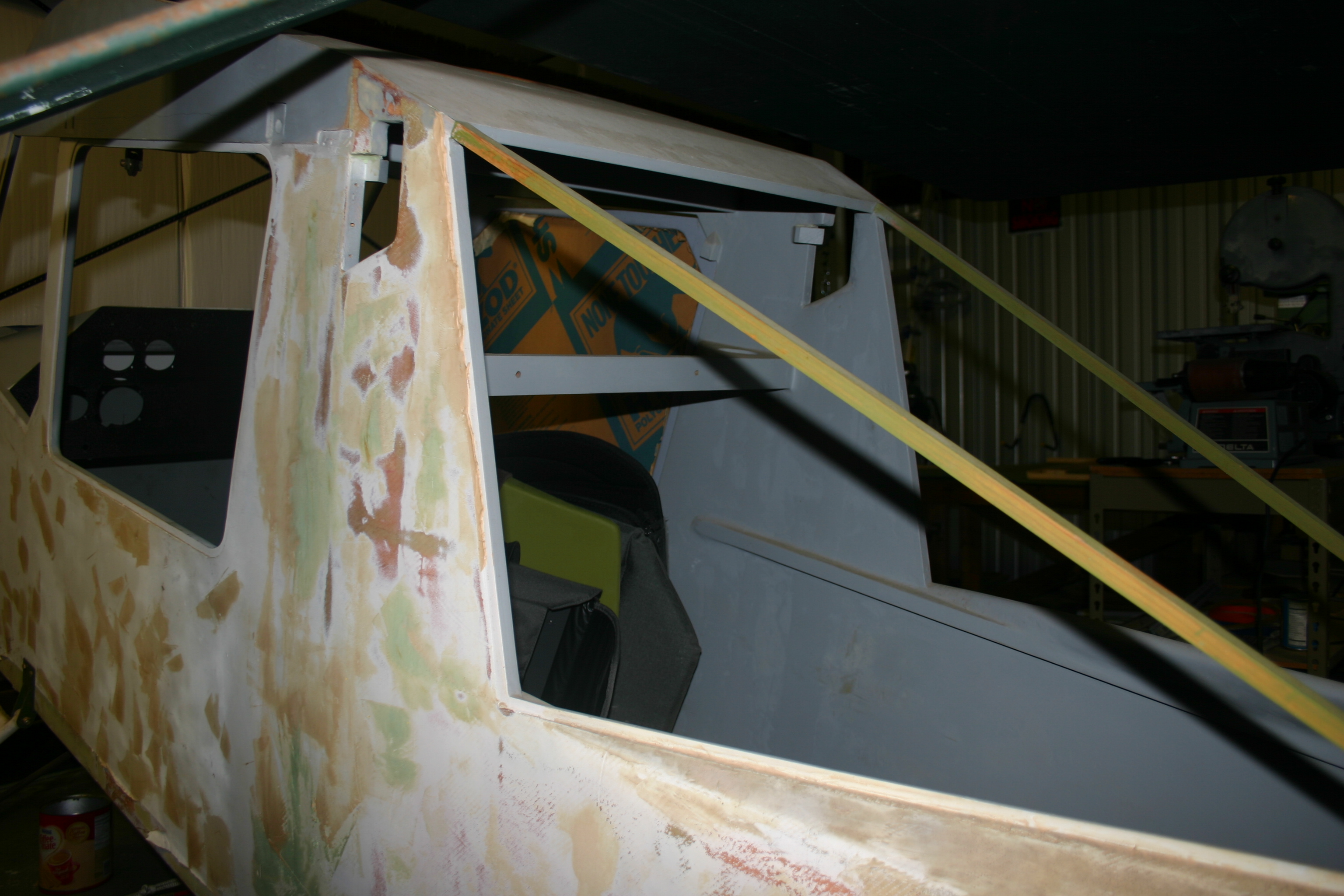

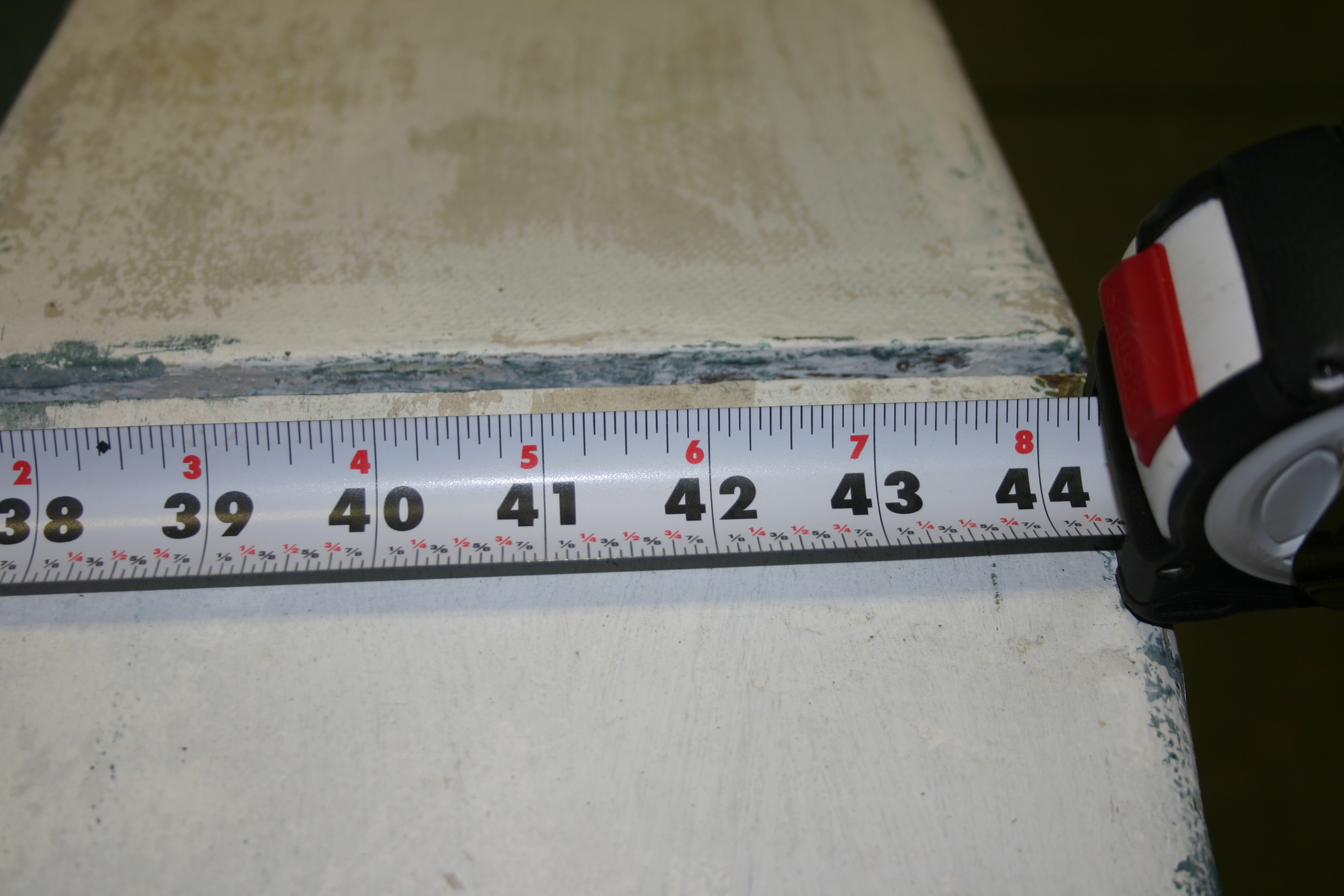

20231204 Visited Oscar's Medford, Oregon "Build Hangar" to spend some time refreshing details involved in my own M-19 project build. OZ graciously gave me wide open access to literally climb all over Marvin's airplane (well I guess it's Oscar's now) to get hands on for measurements and these photos. I've run ito a few questions about how details were implemented. Getting over 8 hours in the hangar by myself allowed me to further my knowledge and document just how Marvin put his airplane together. These images should be useful when it's time to compare what I've constructed to the known good protype at DAR airworthiness inspection. Note that all photos of Marvin's airplane feature green paint somewhere. Any photos in white or primer are of Oscar's build in progress.

Click any image for the full detail resolution photo

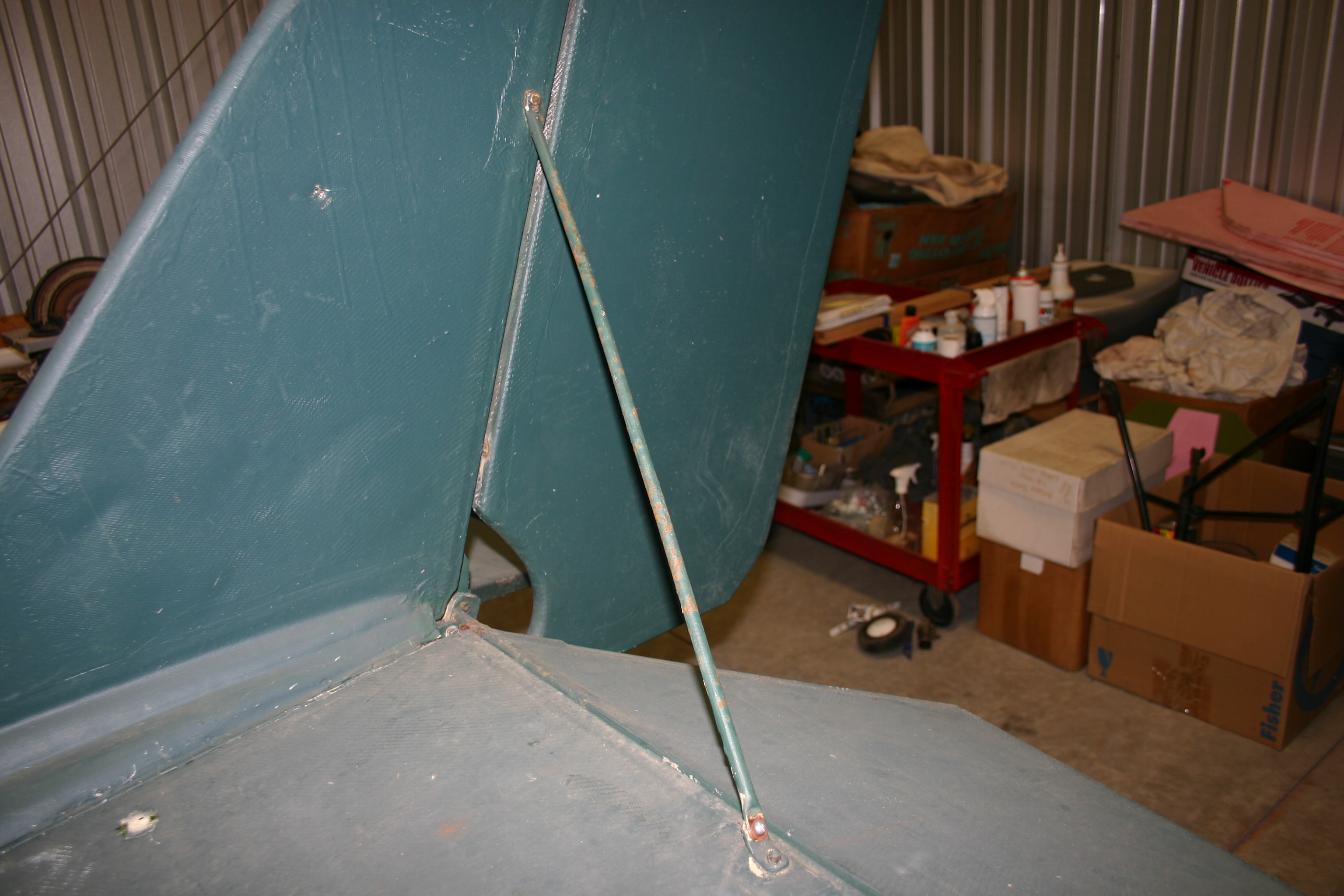

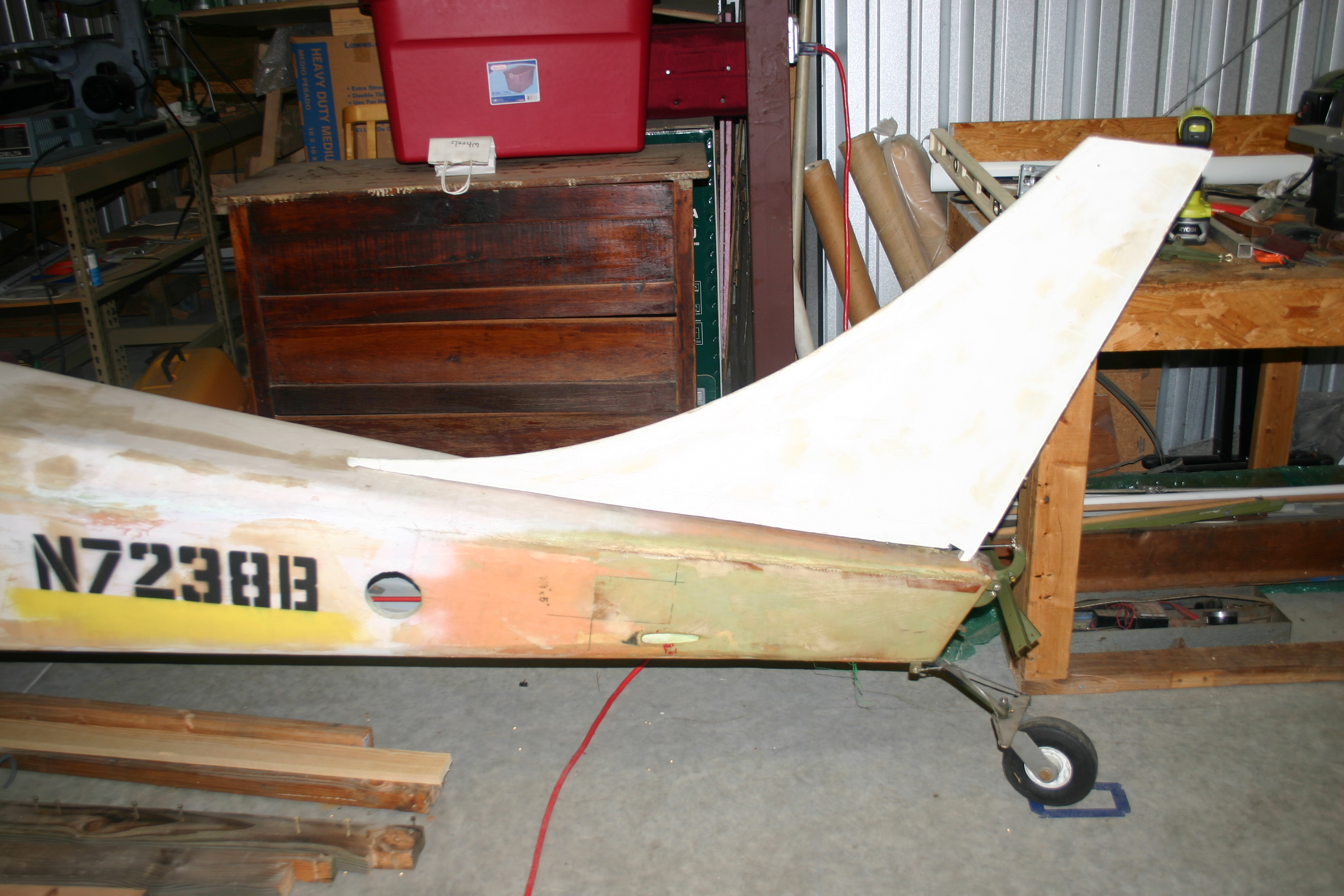

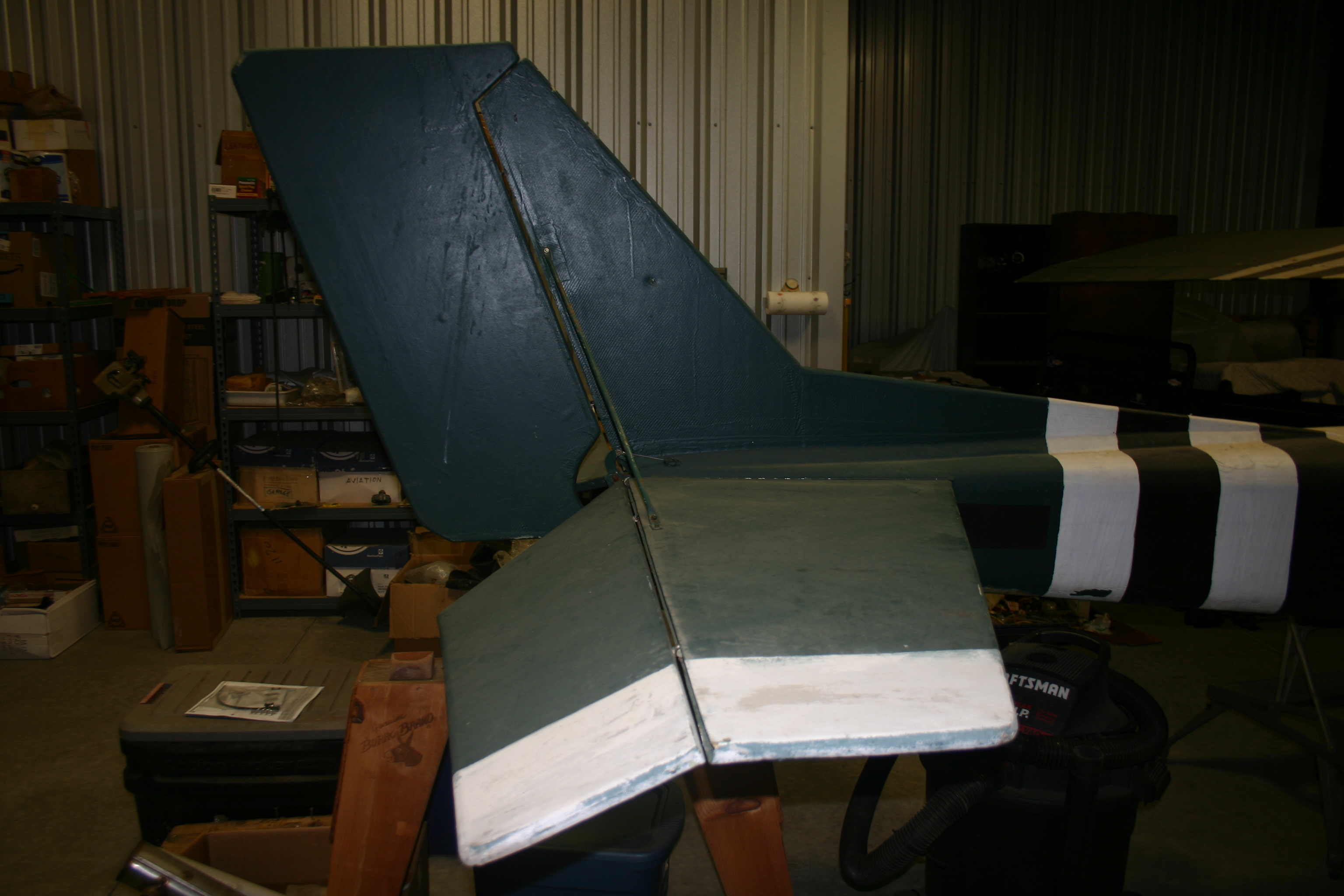

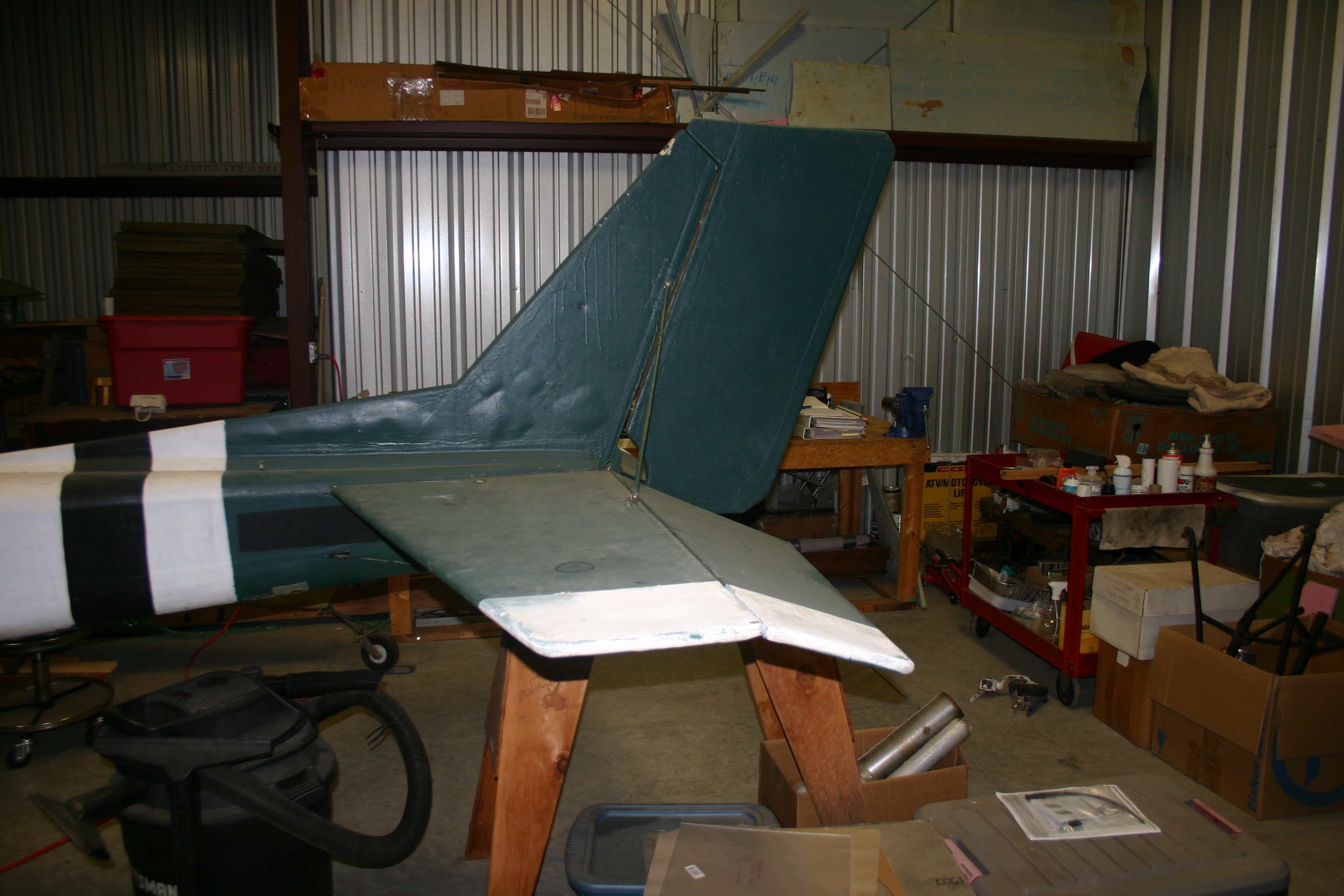

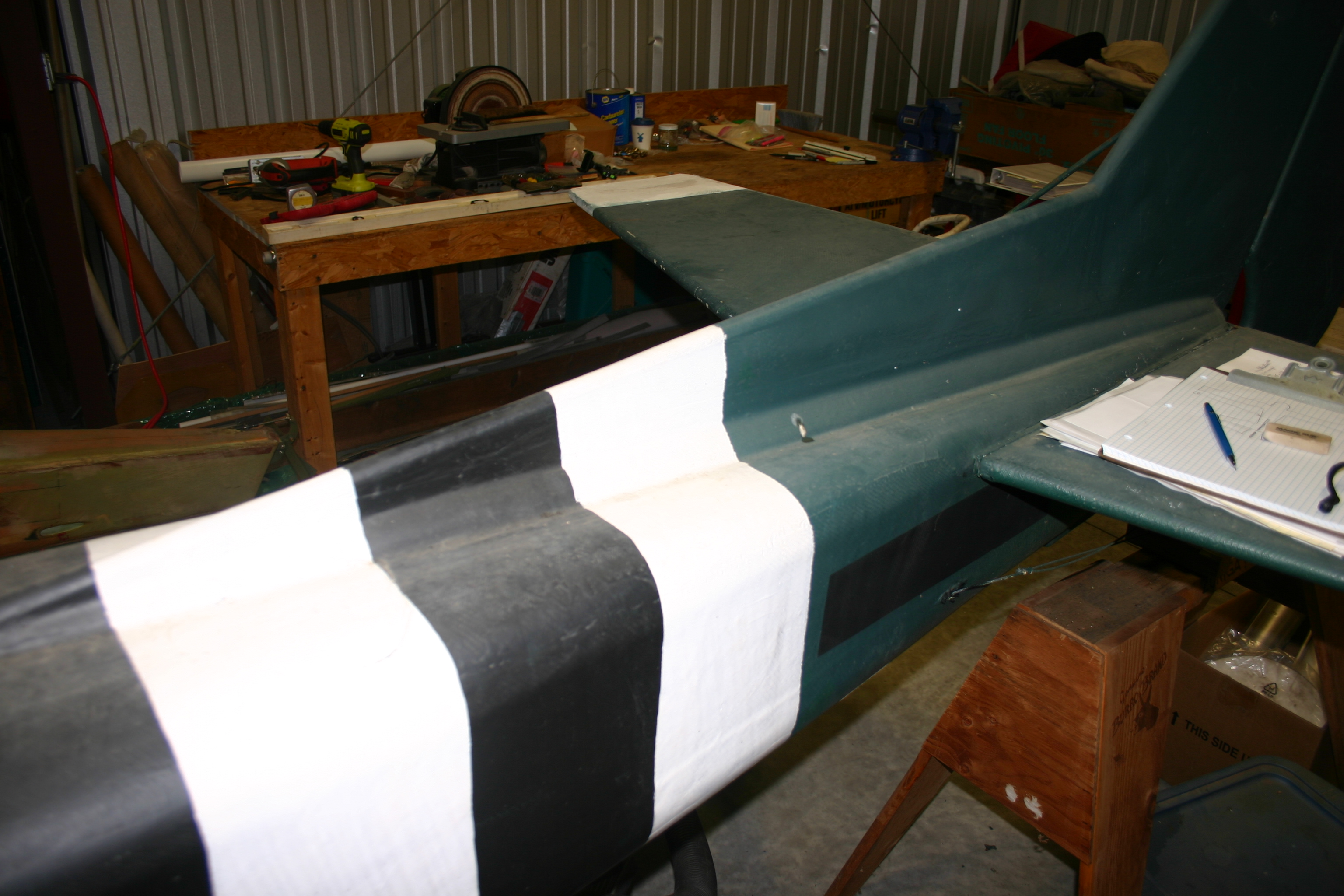

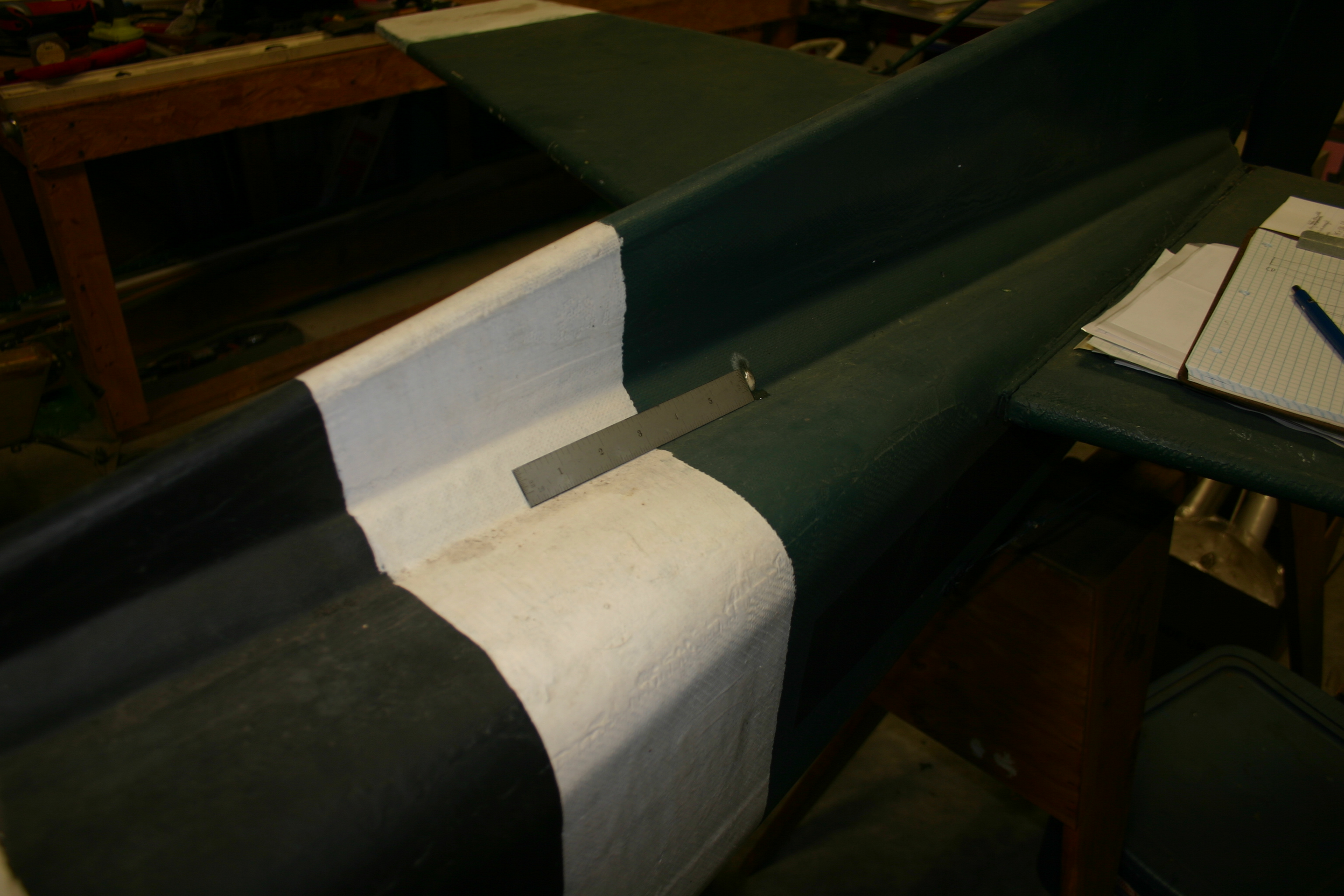

Empennage

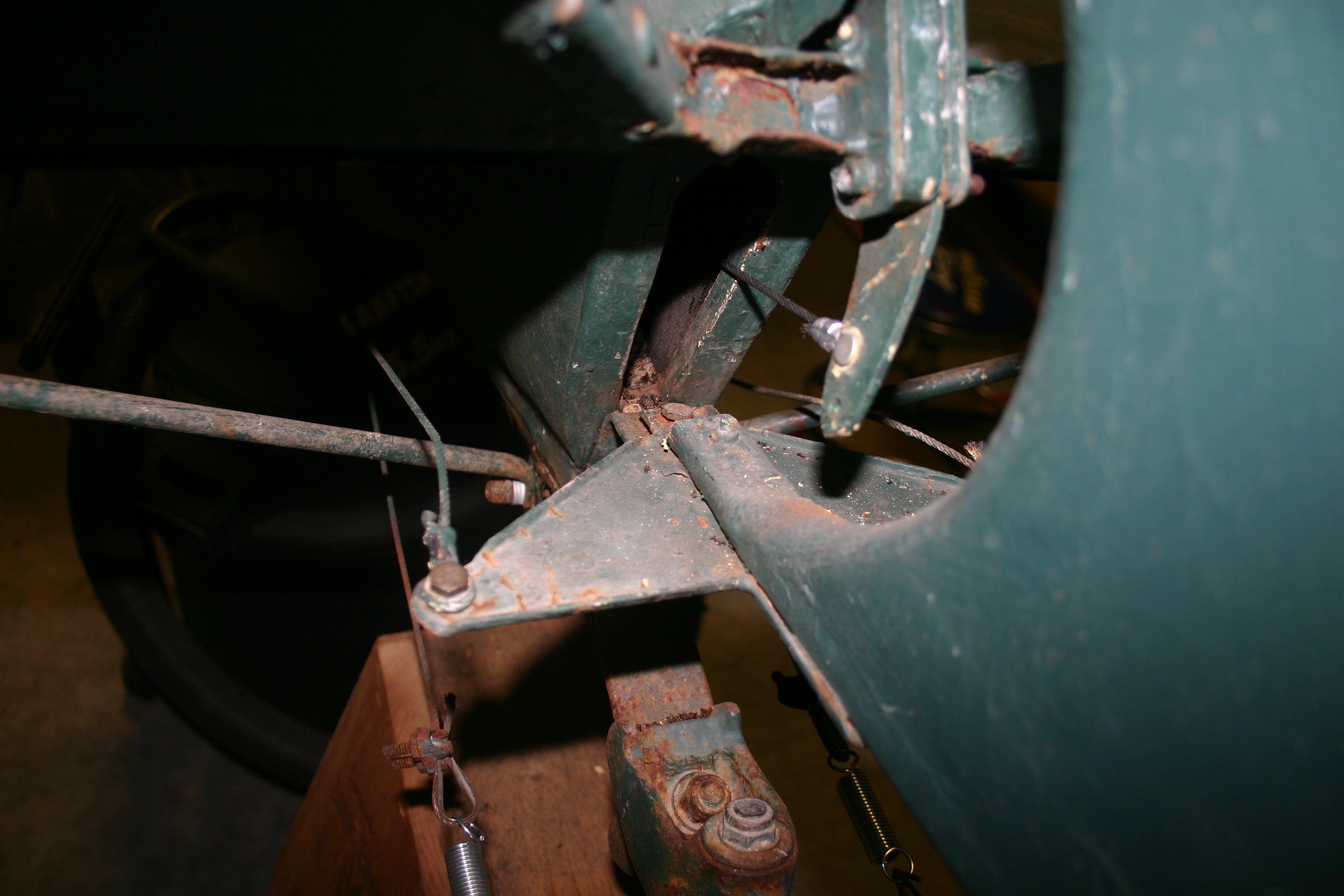

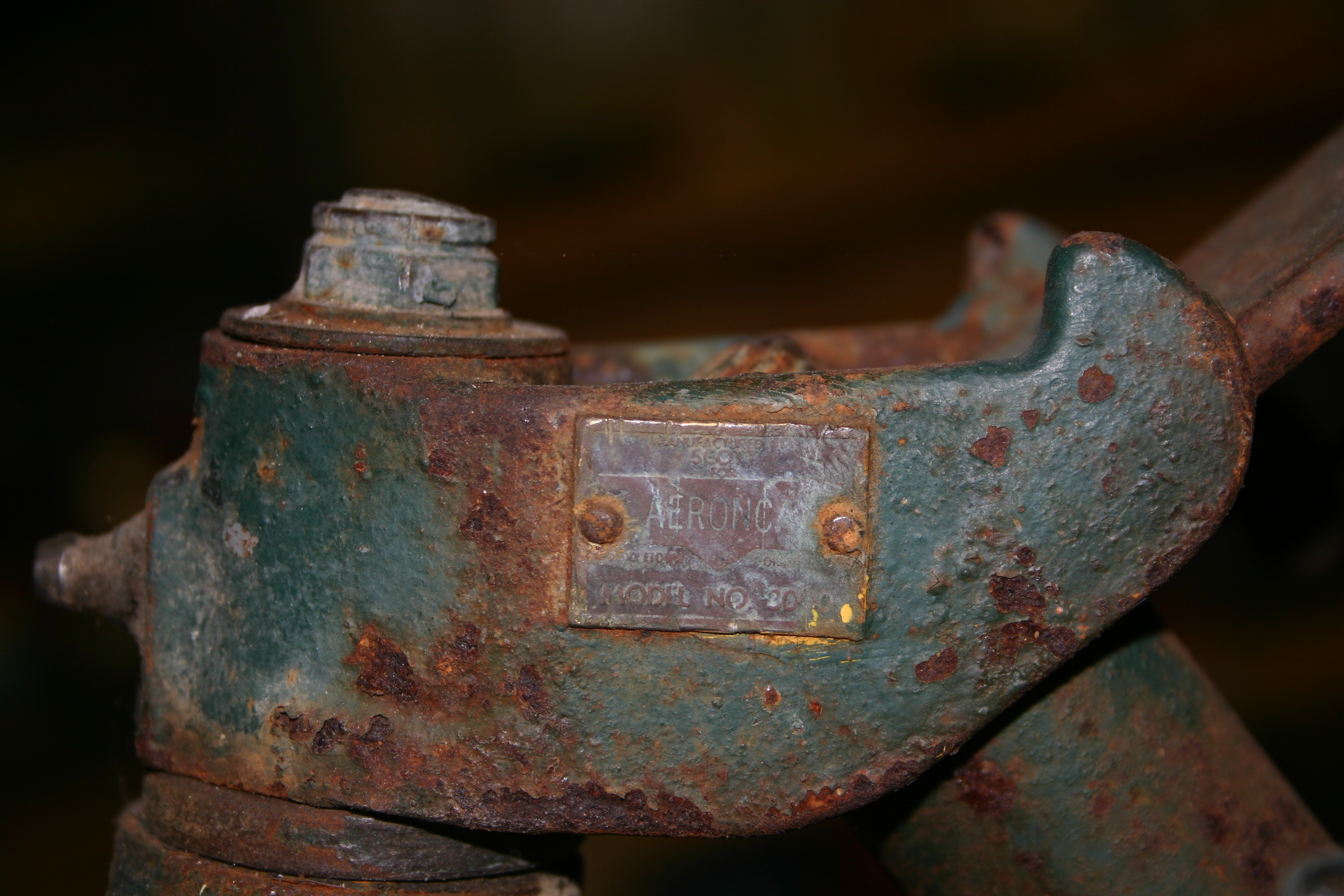

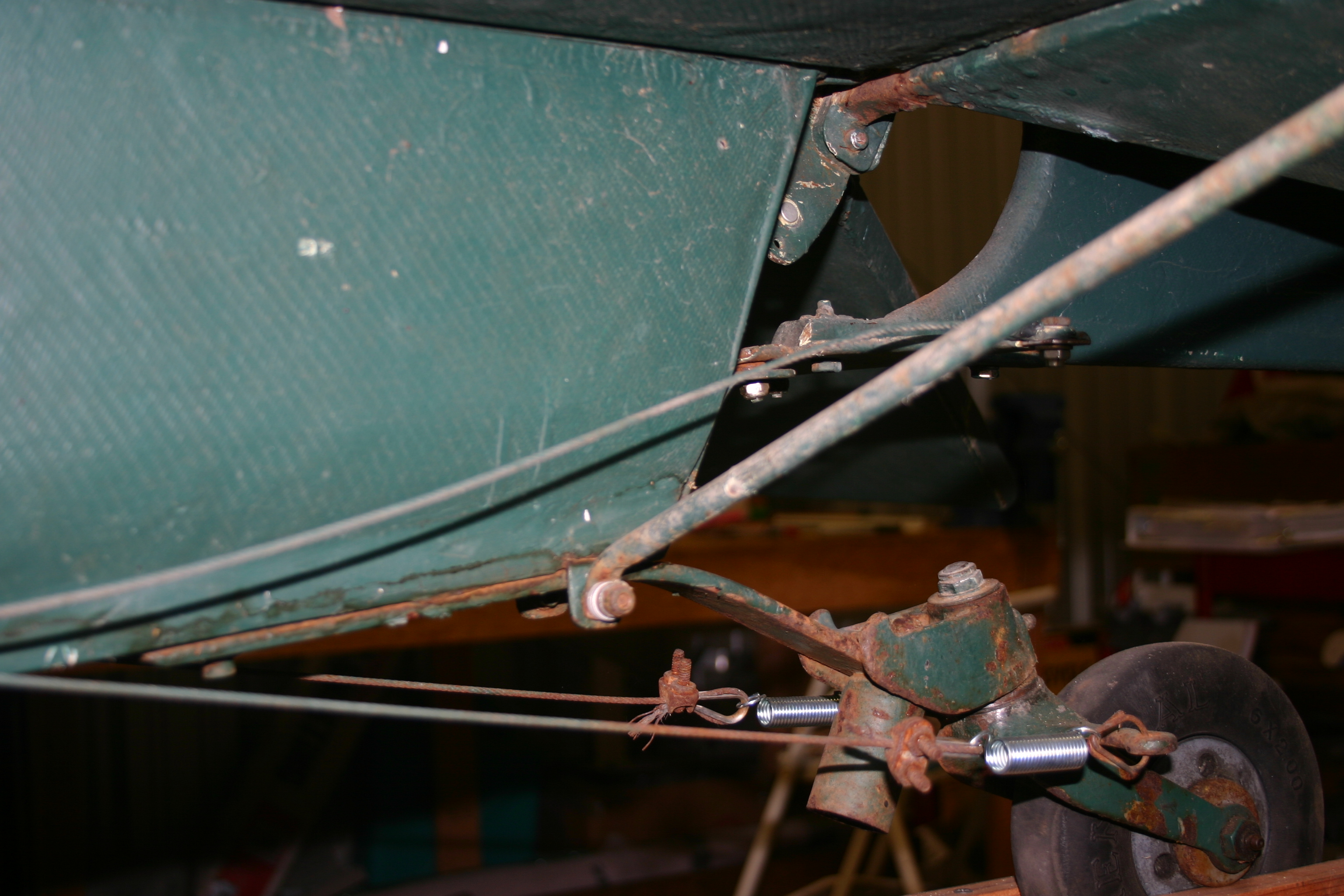

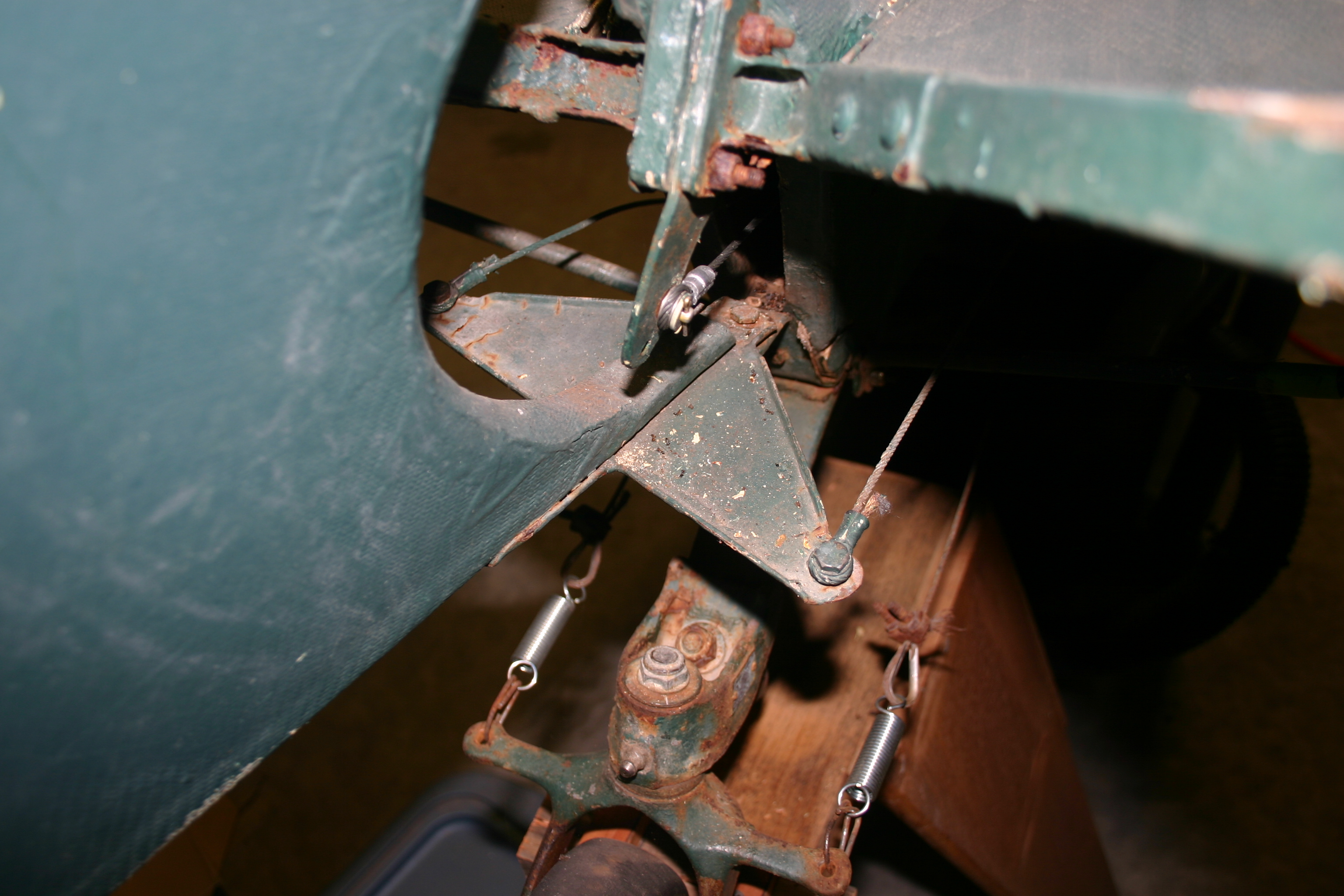

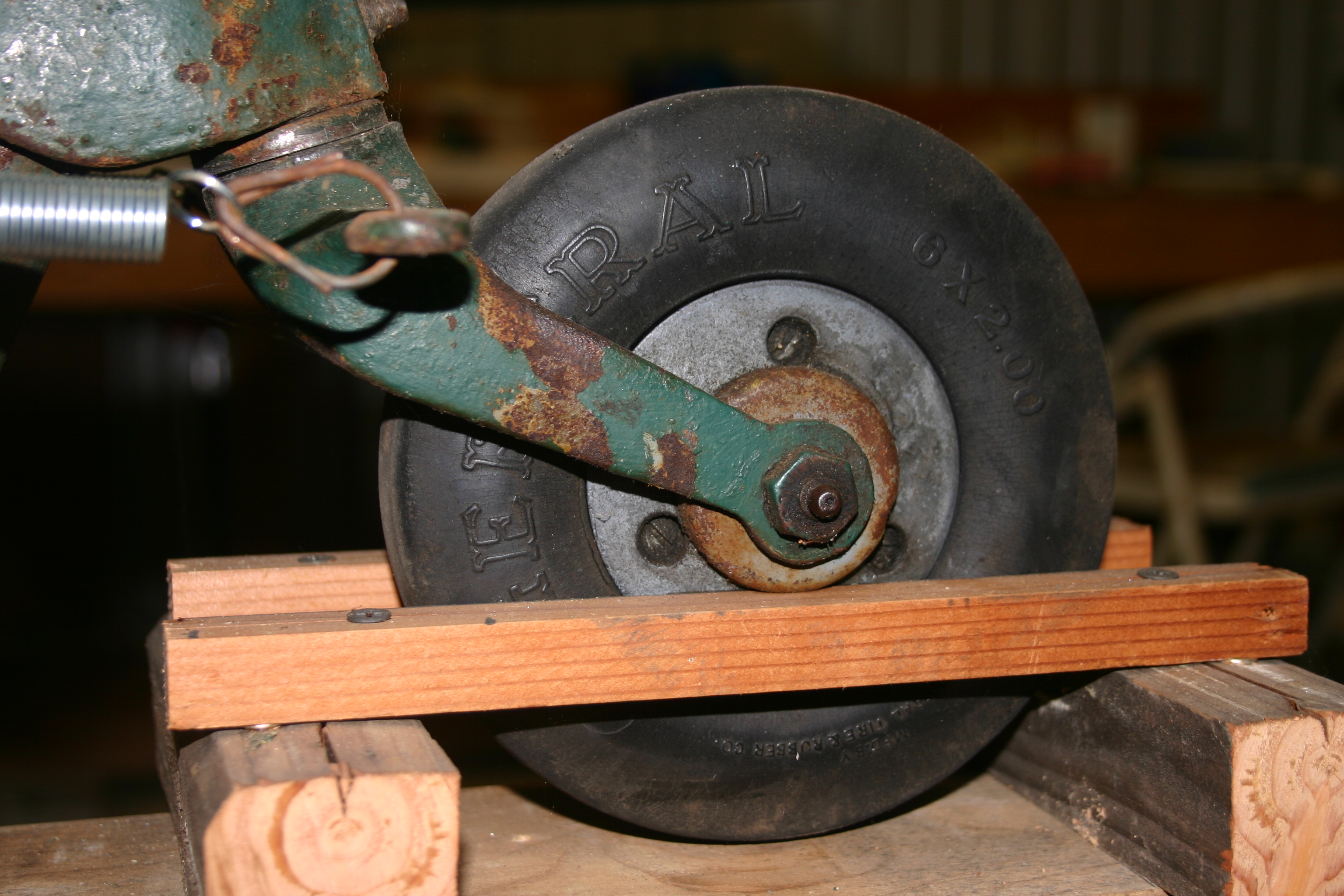

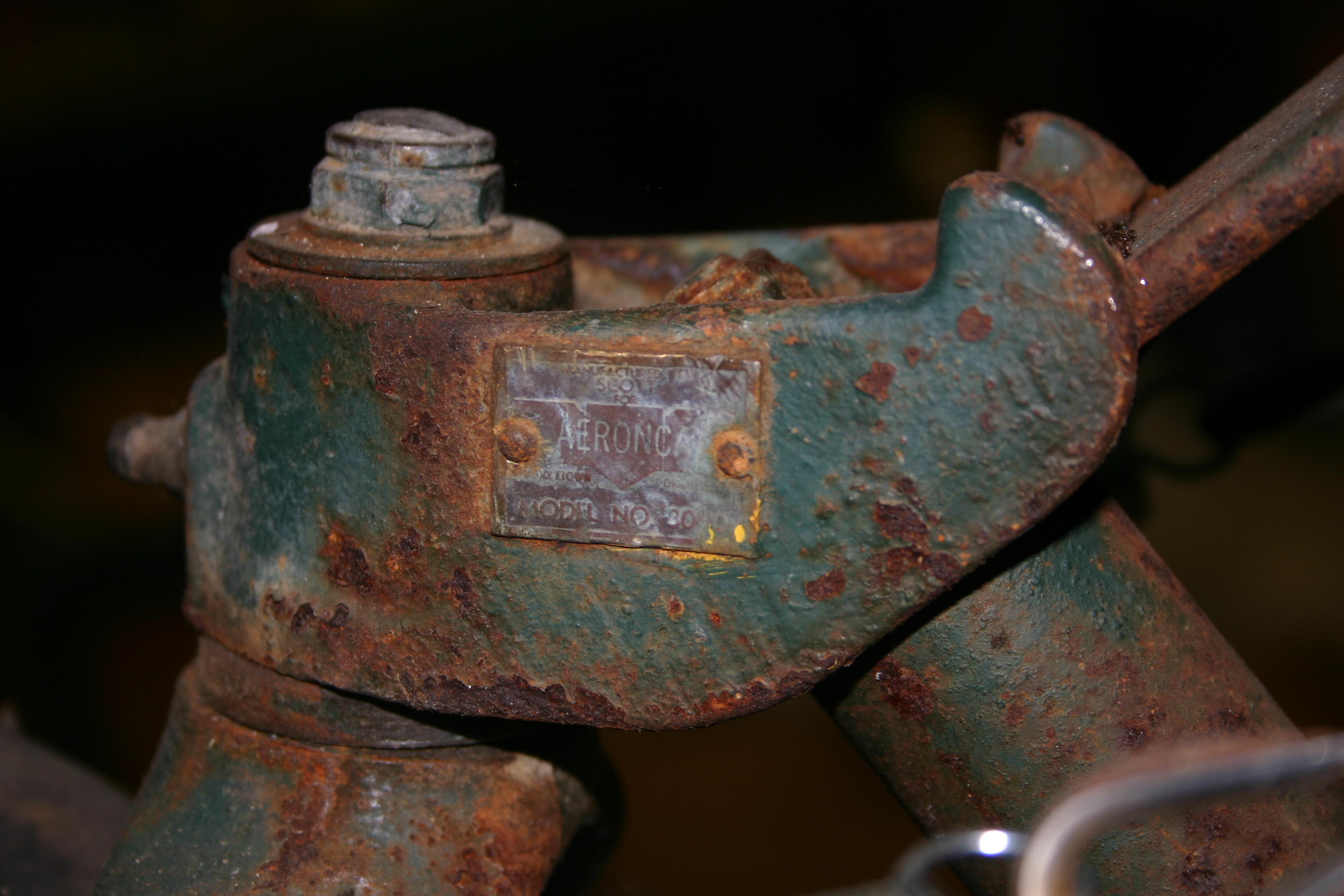

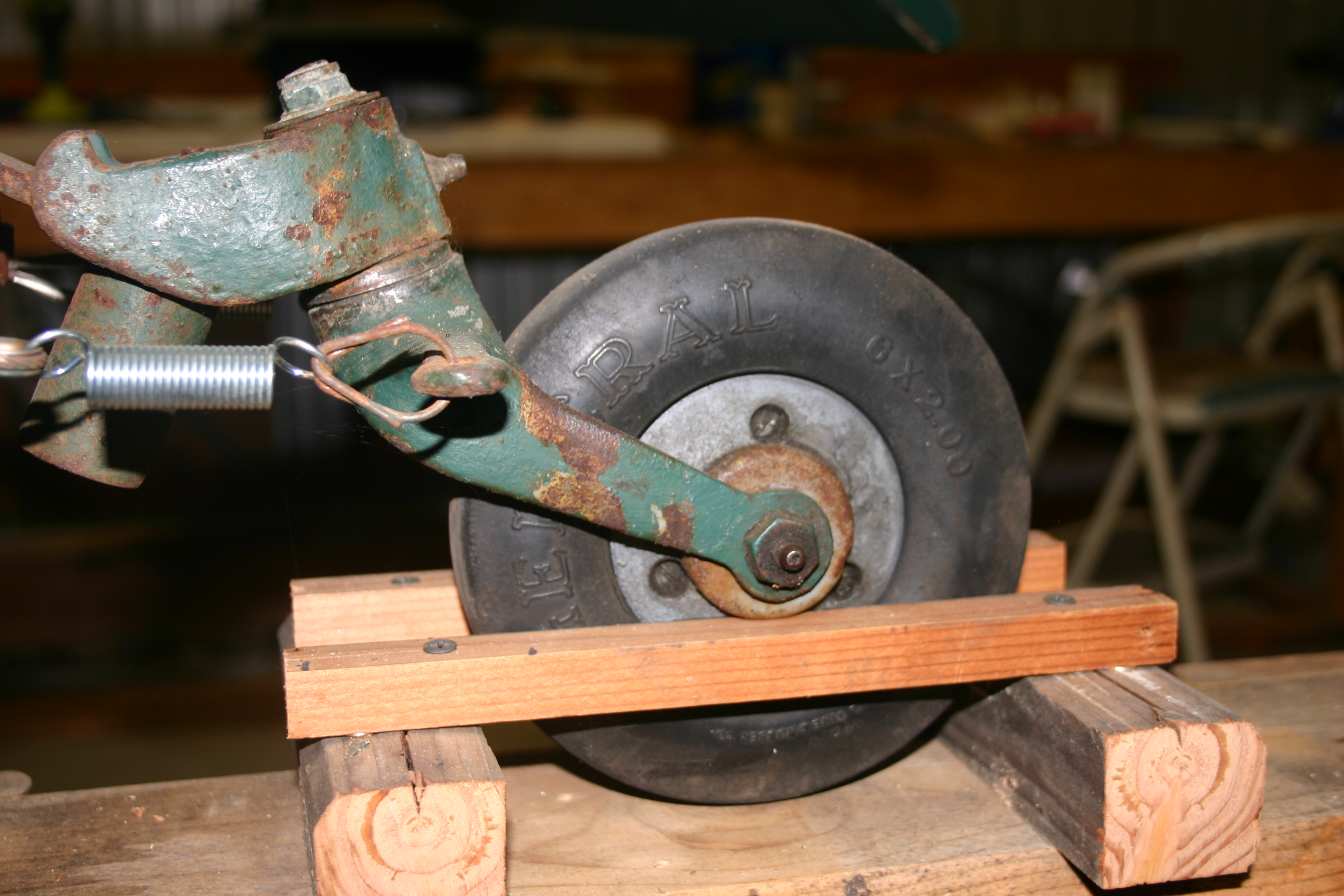

Tailwheel installation

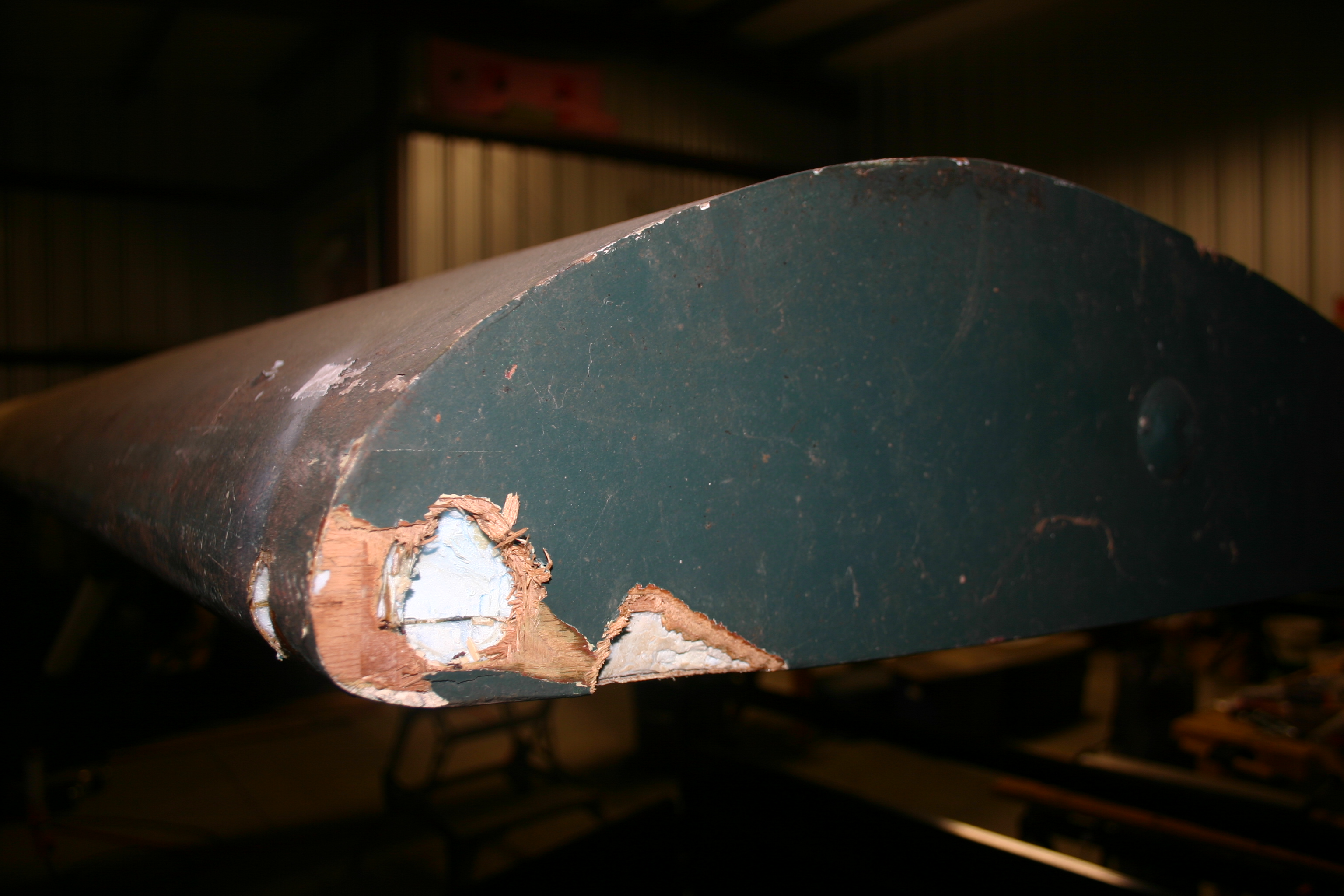

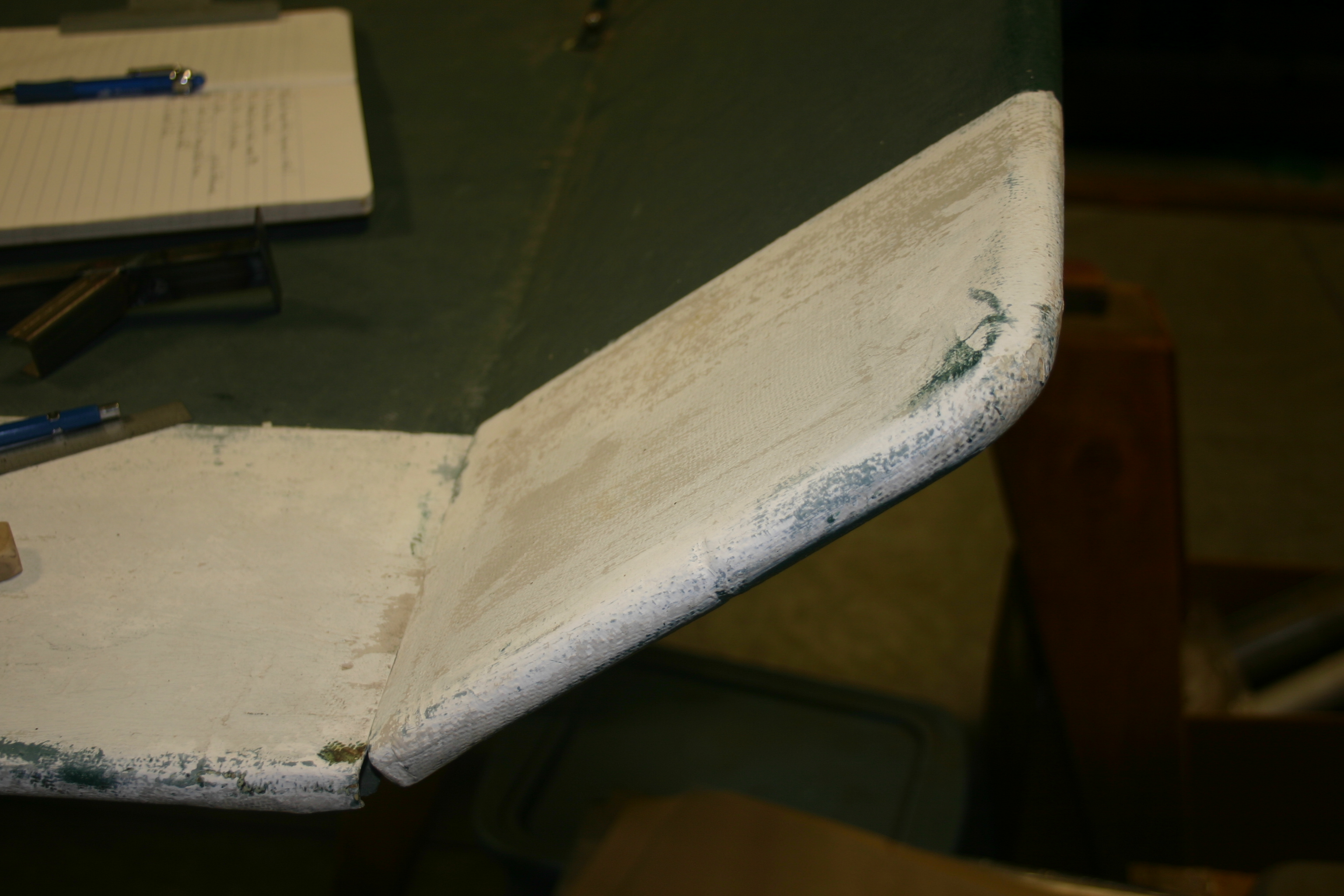

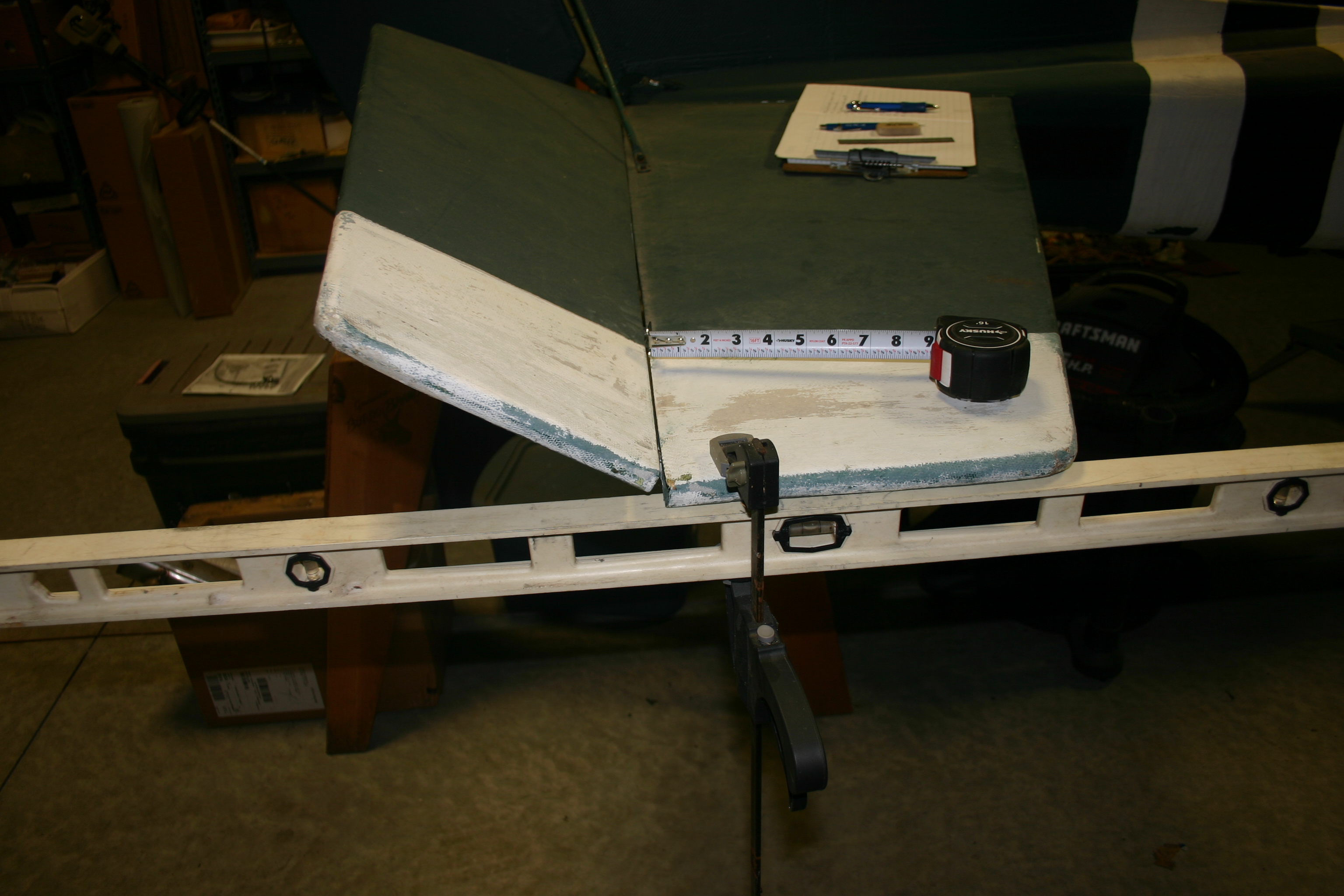

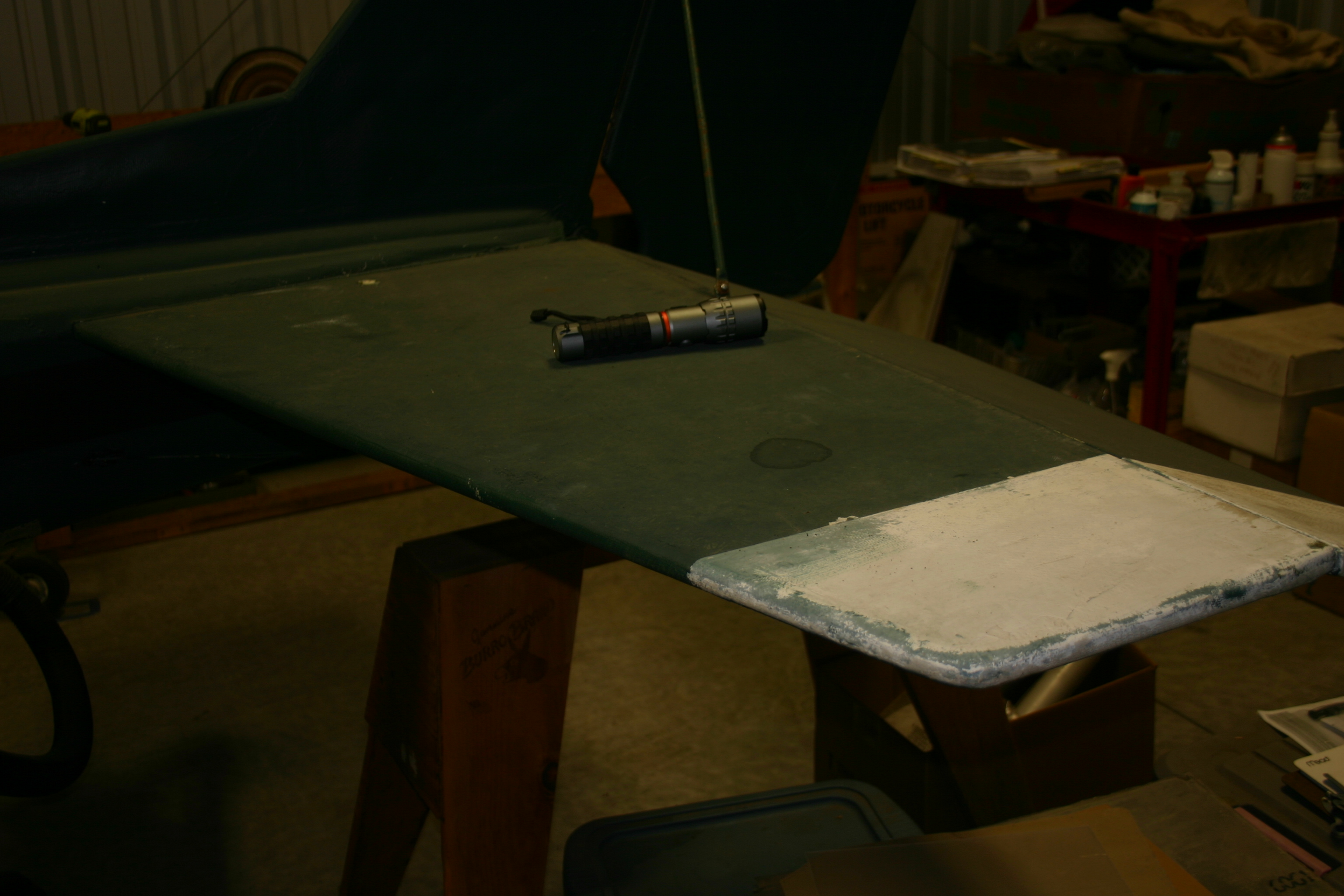

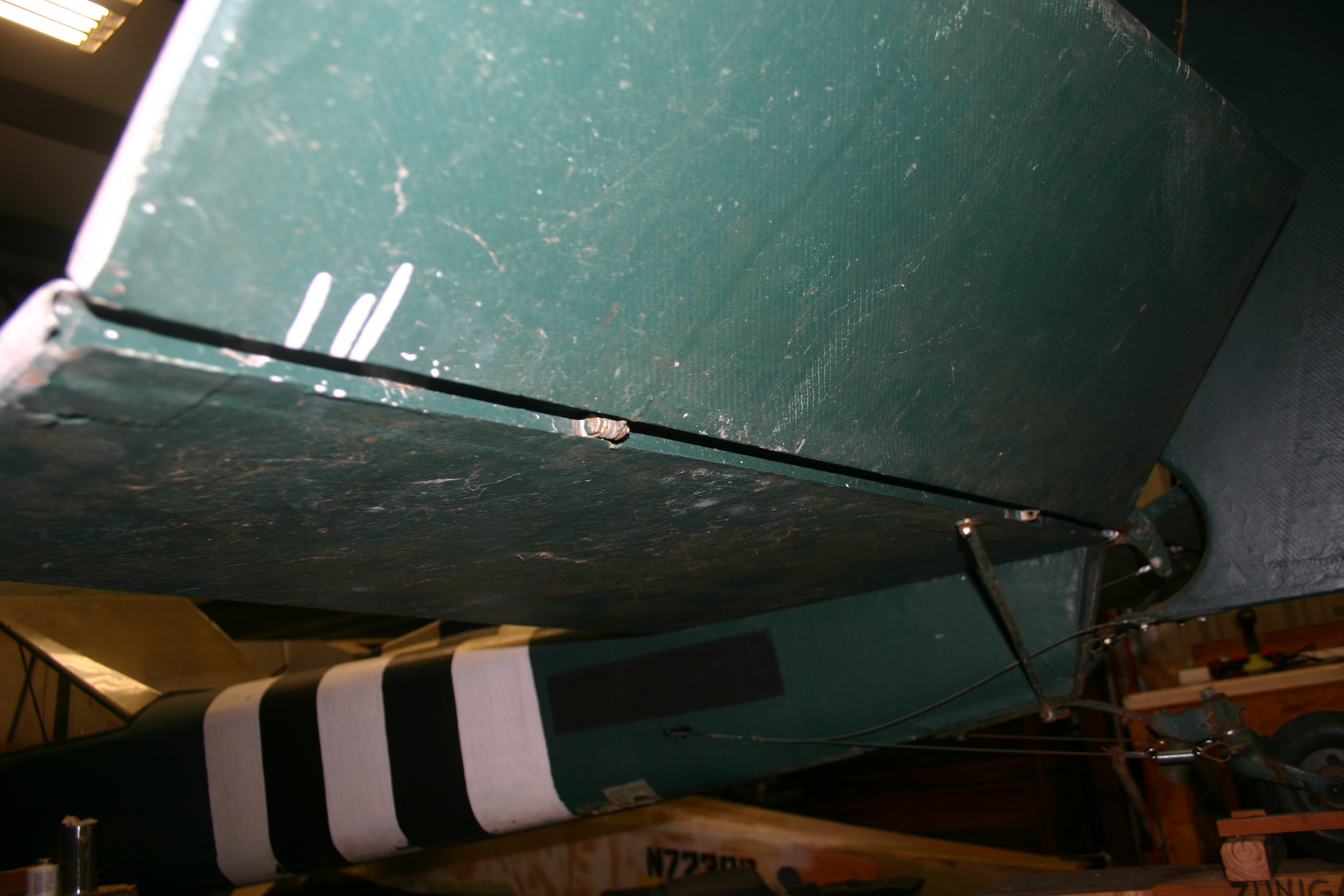

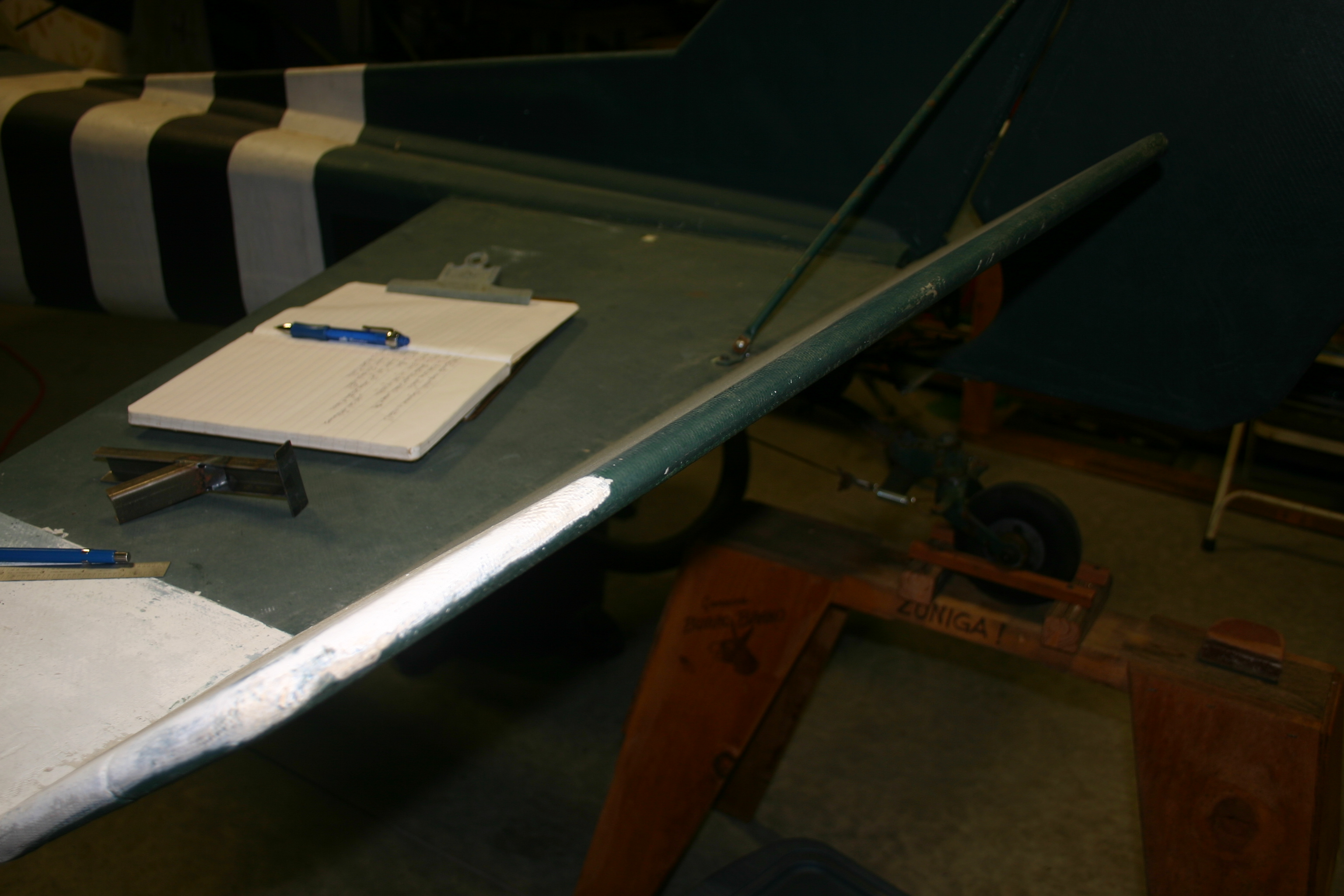

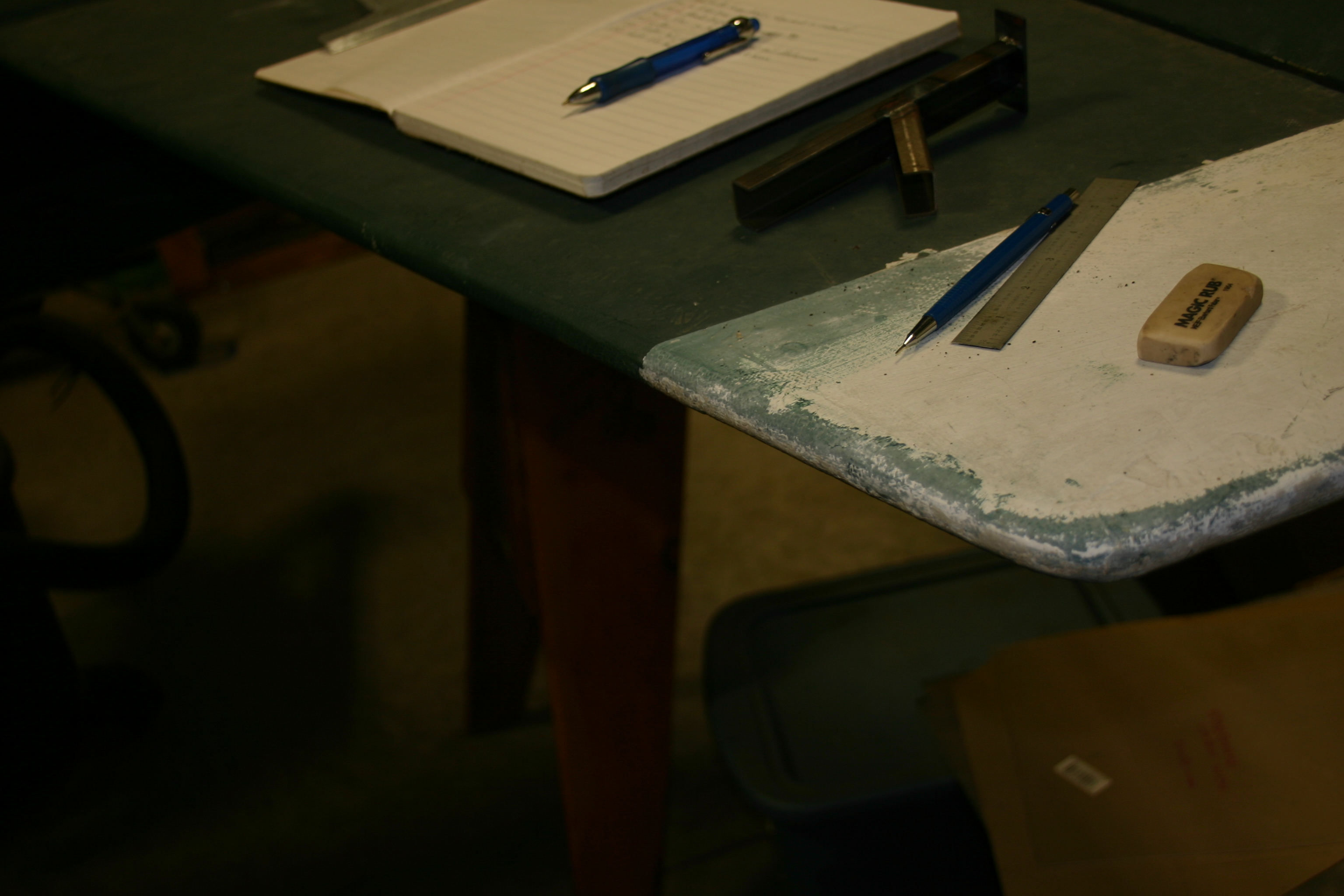

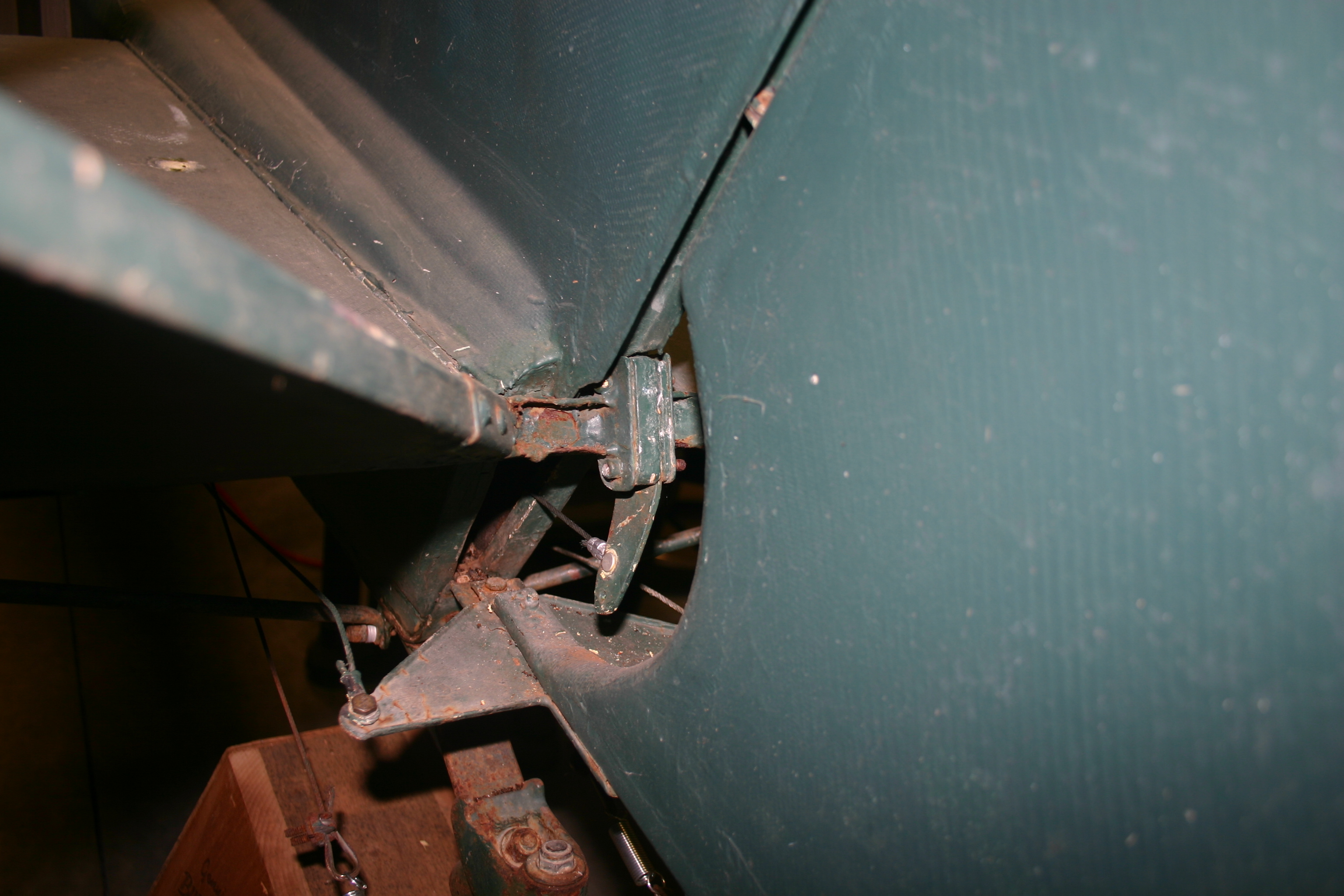

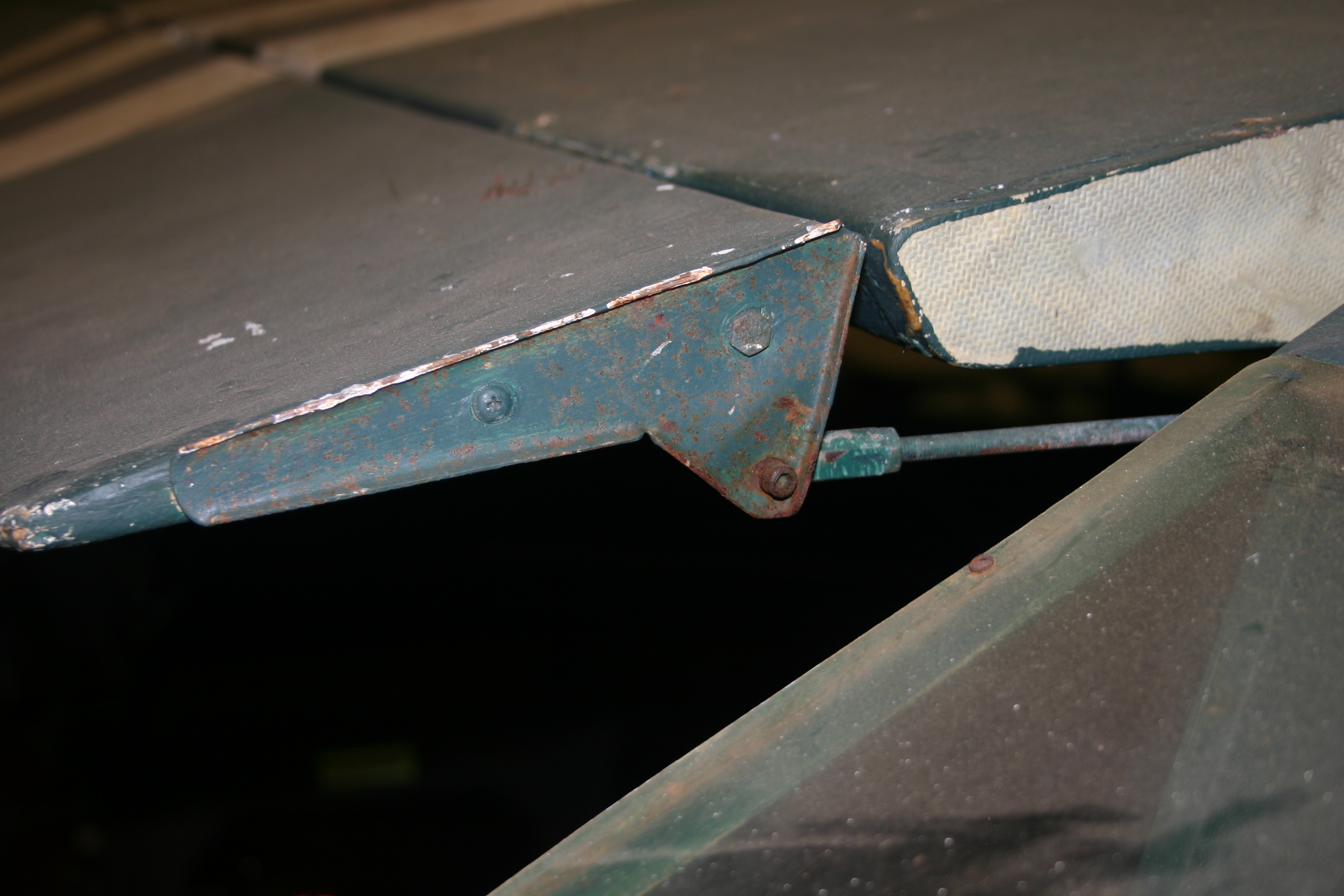

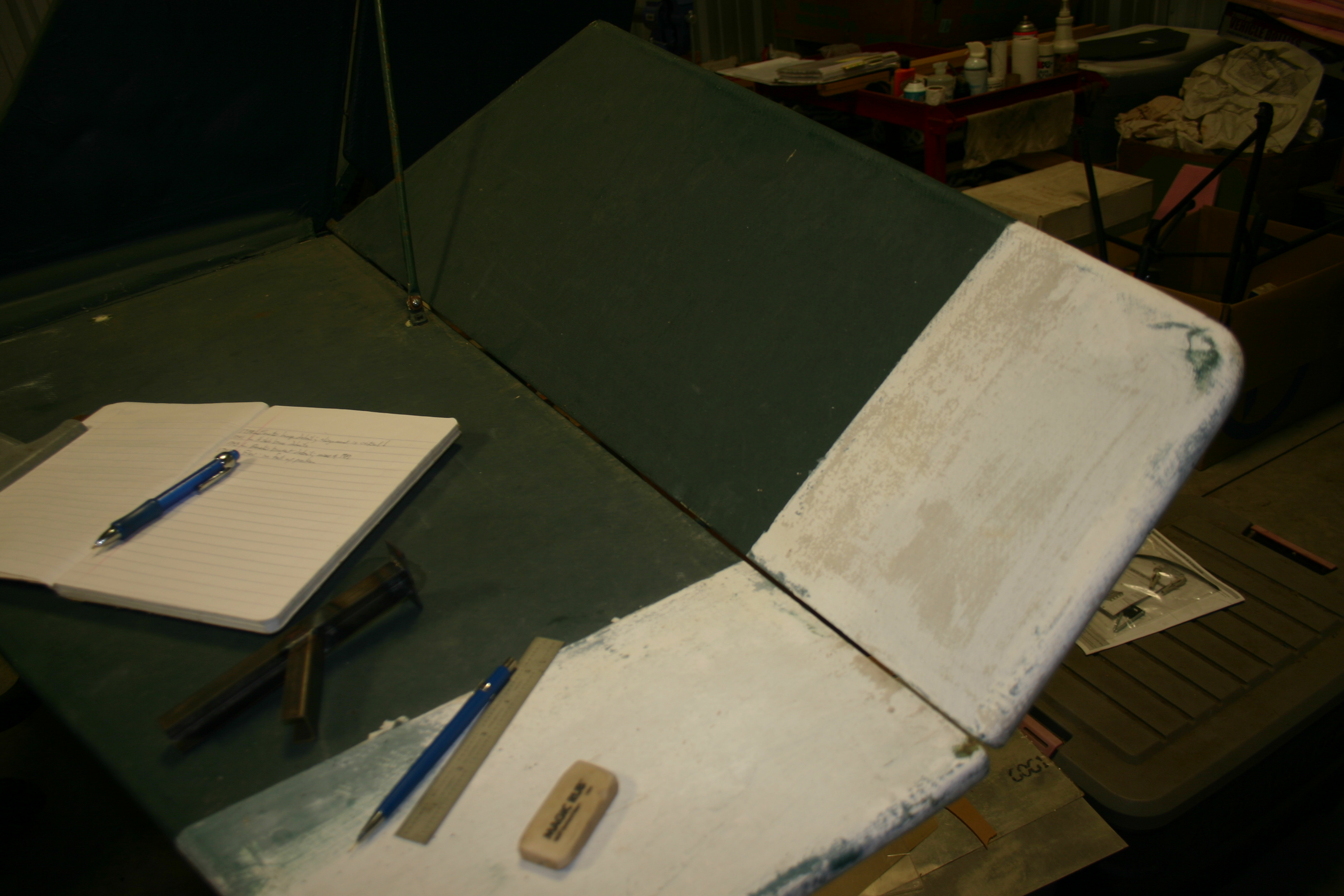

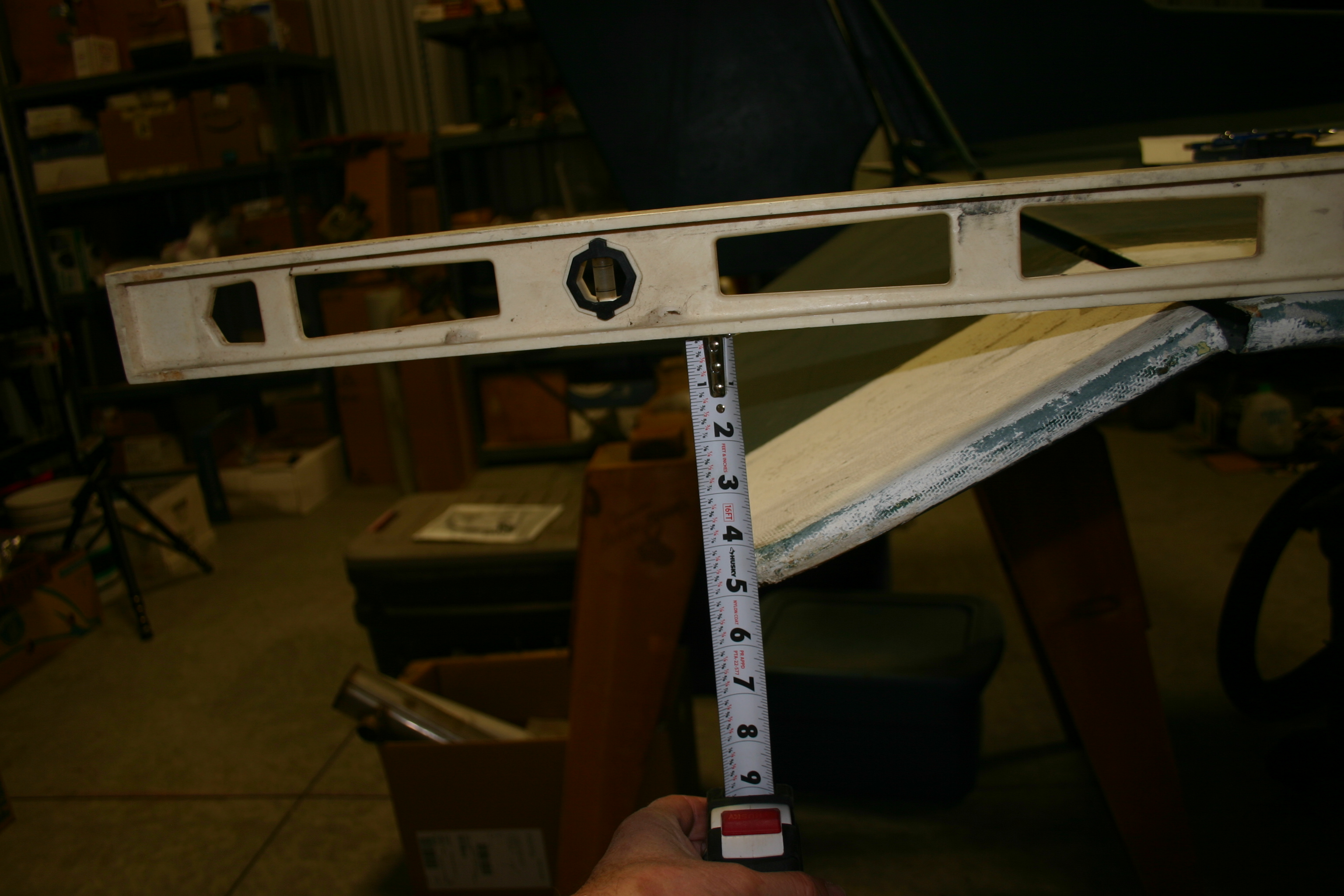

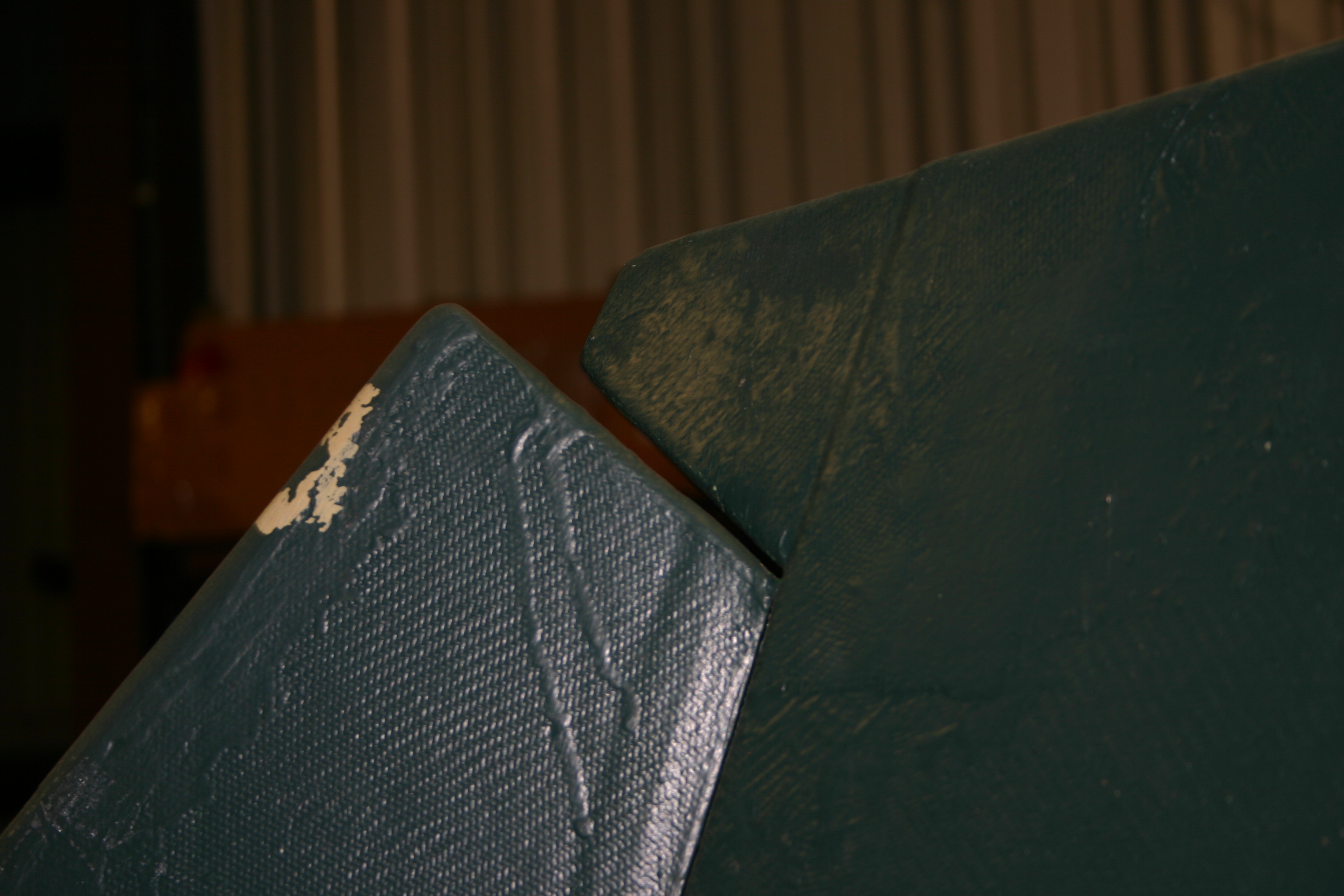

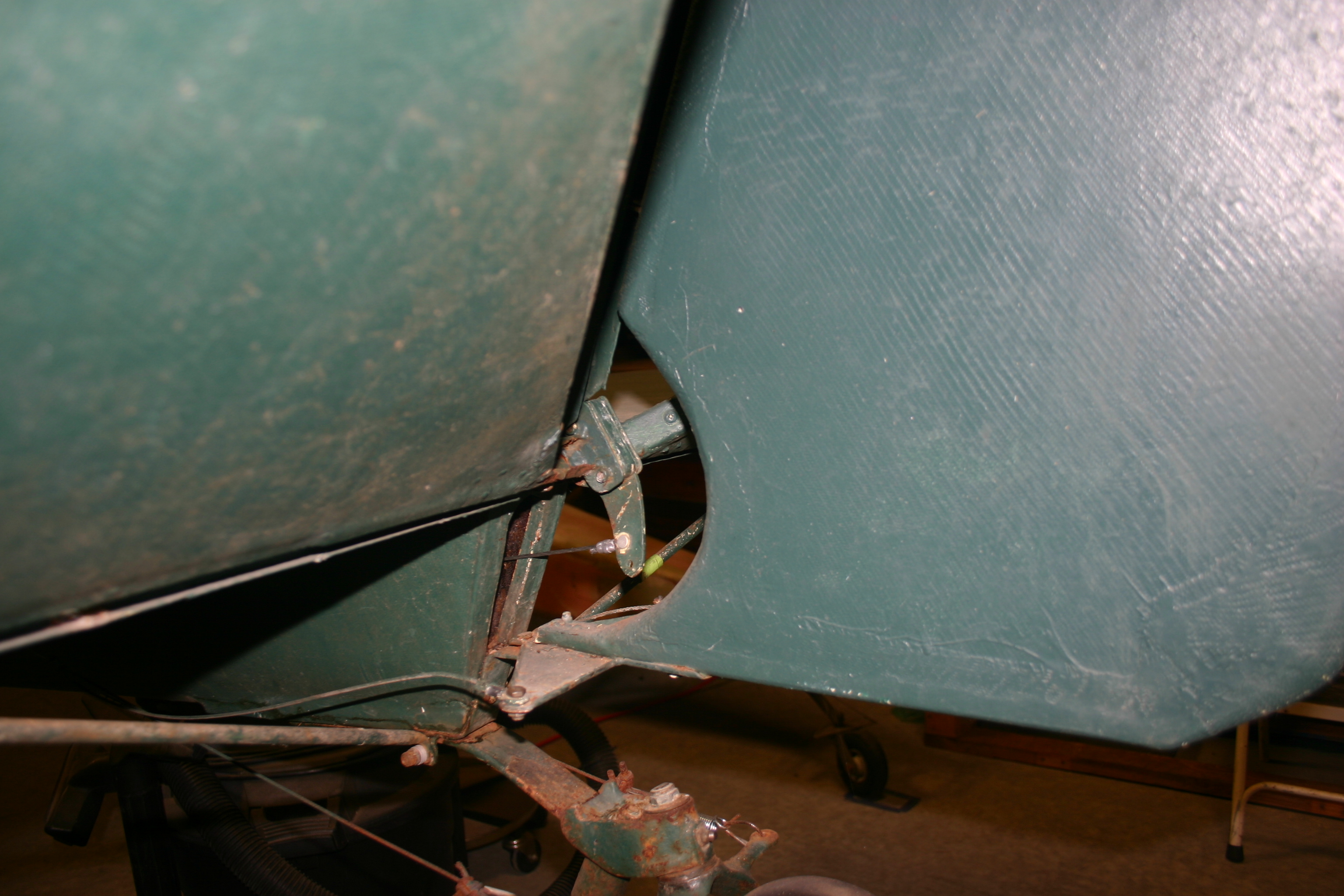

Horizontal stabilator & elevator

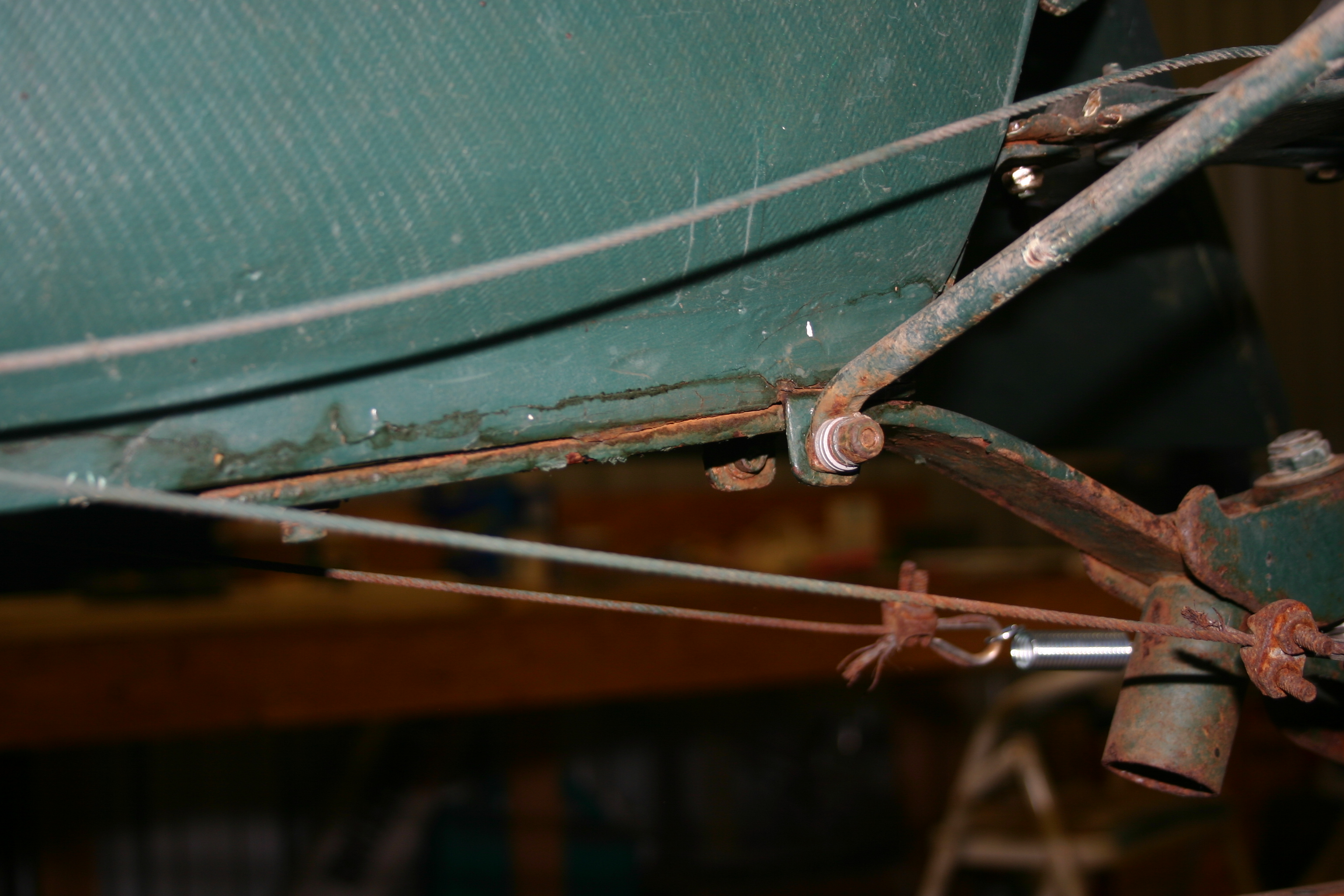

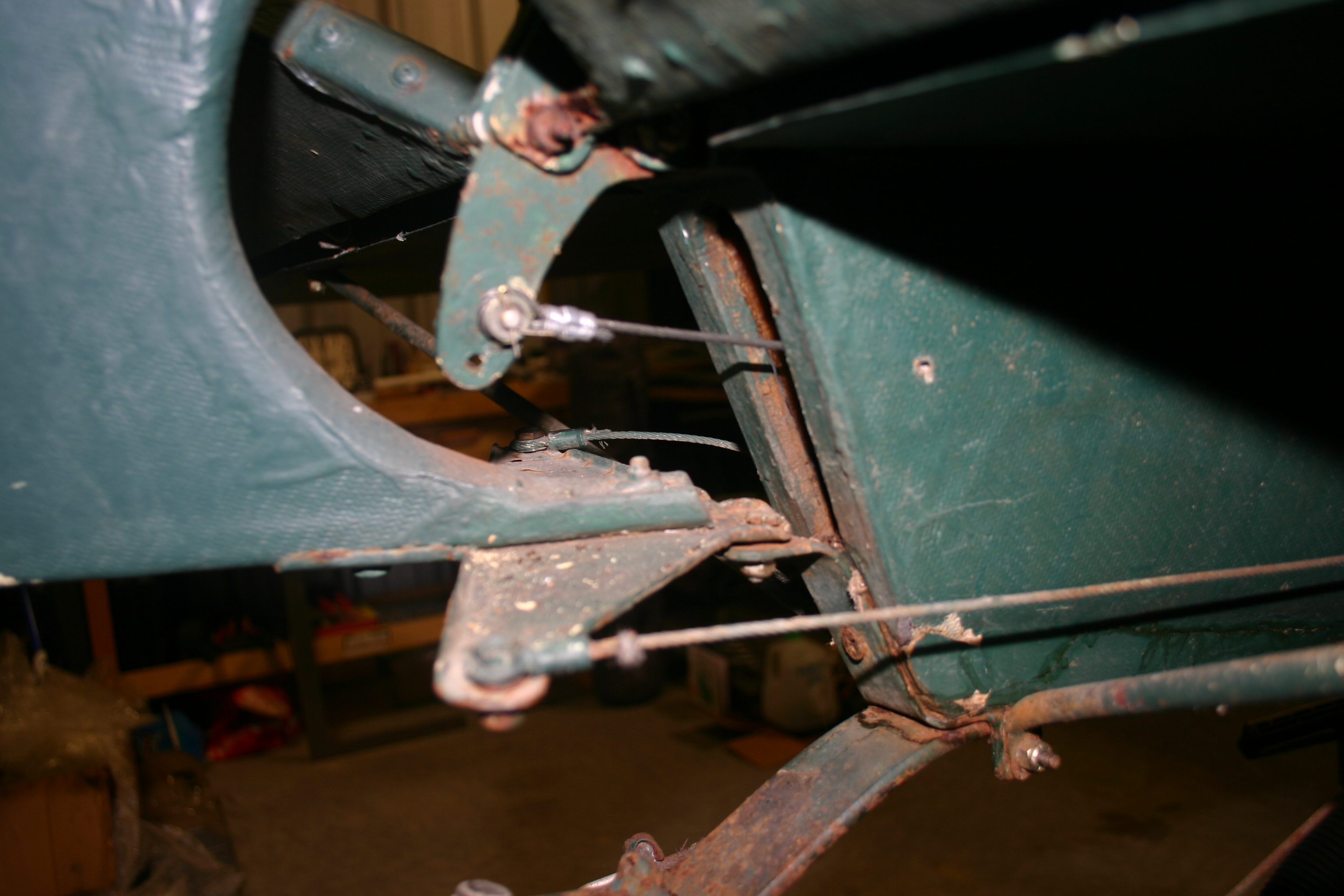

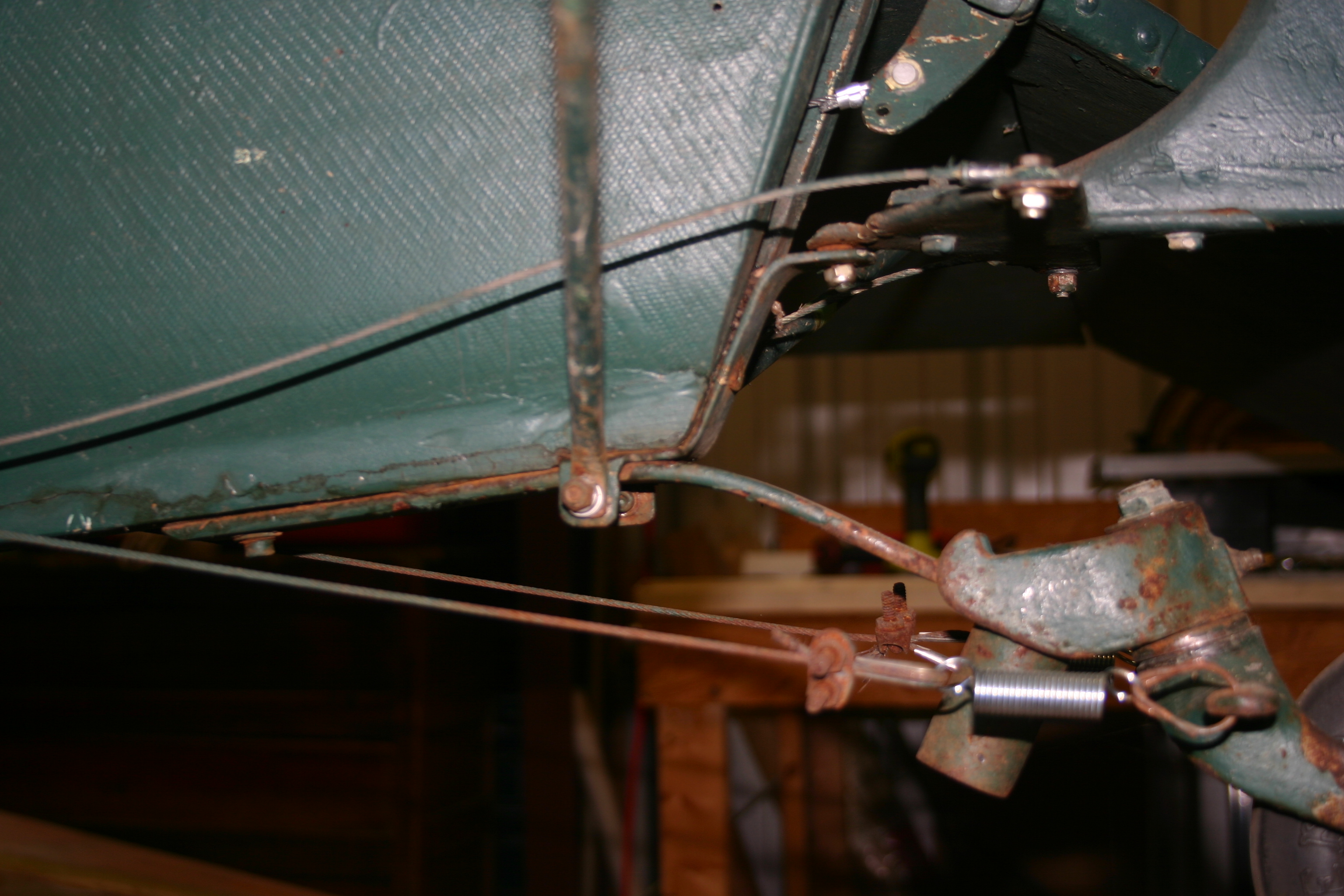

Rudder control

Pitch control

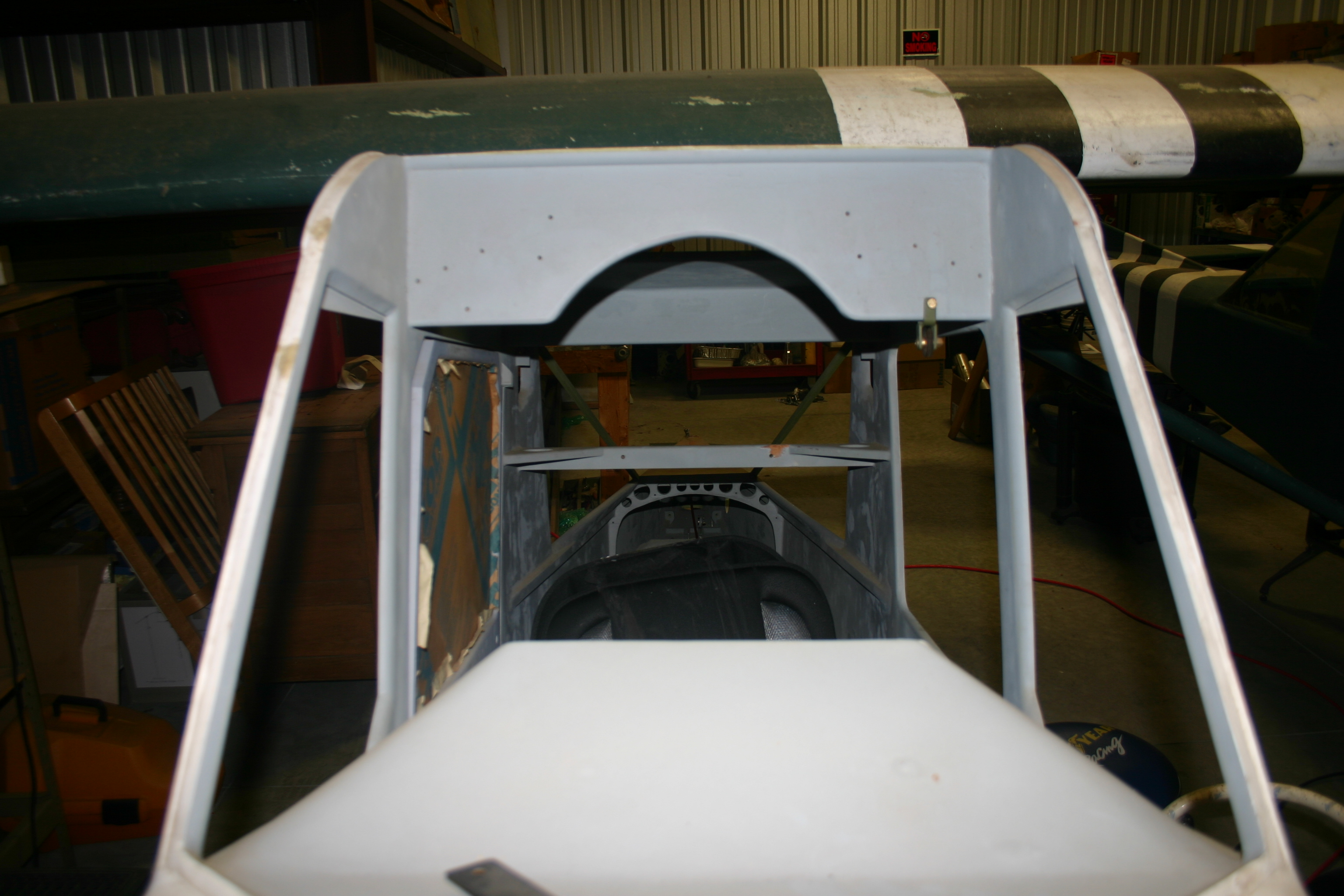

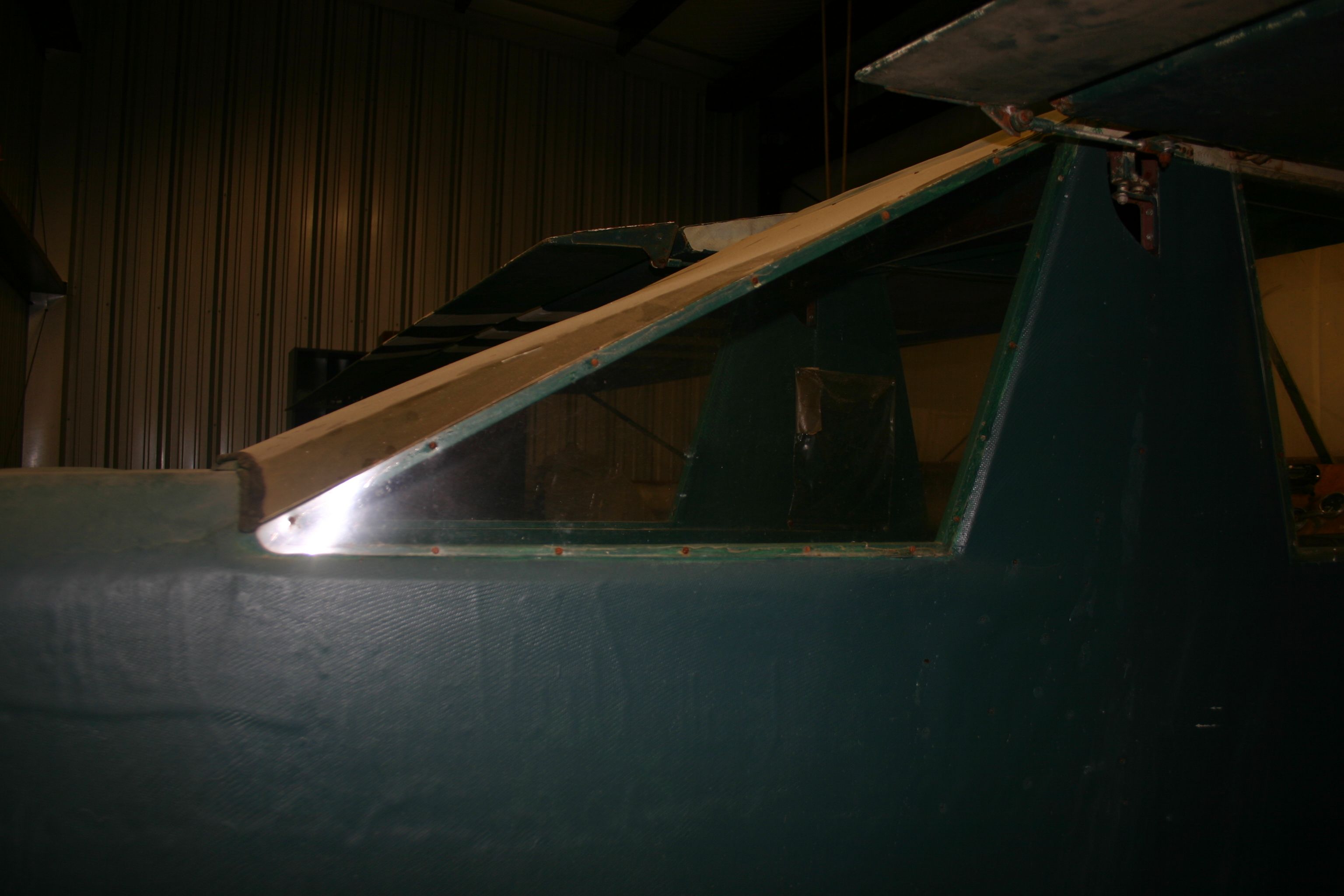

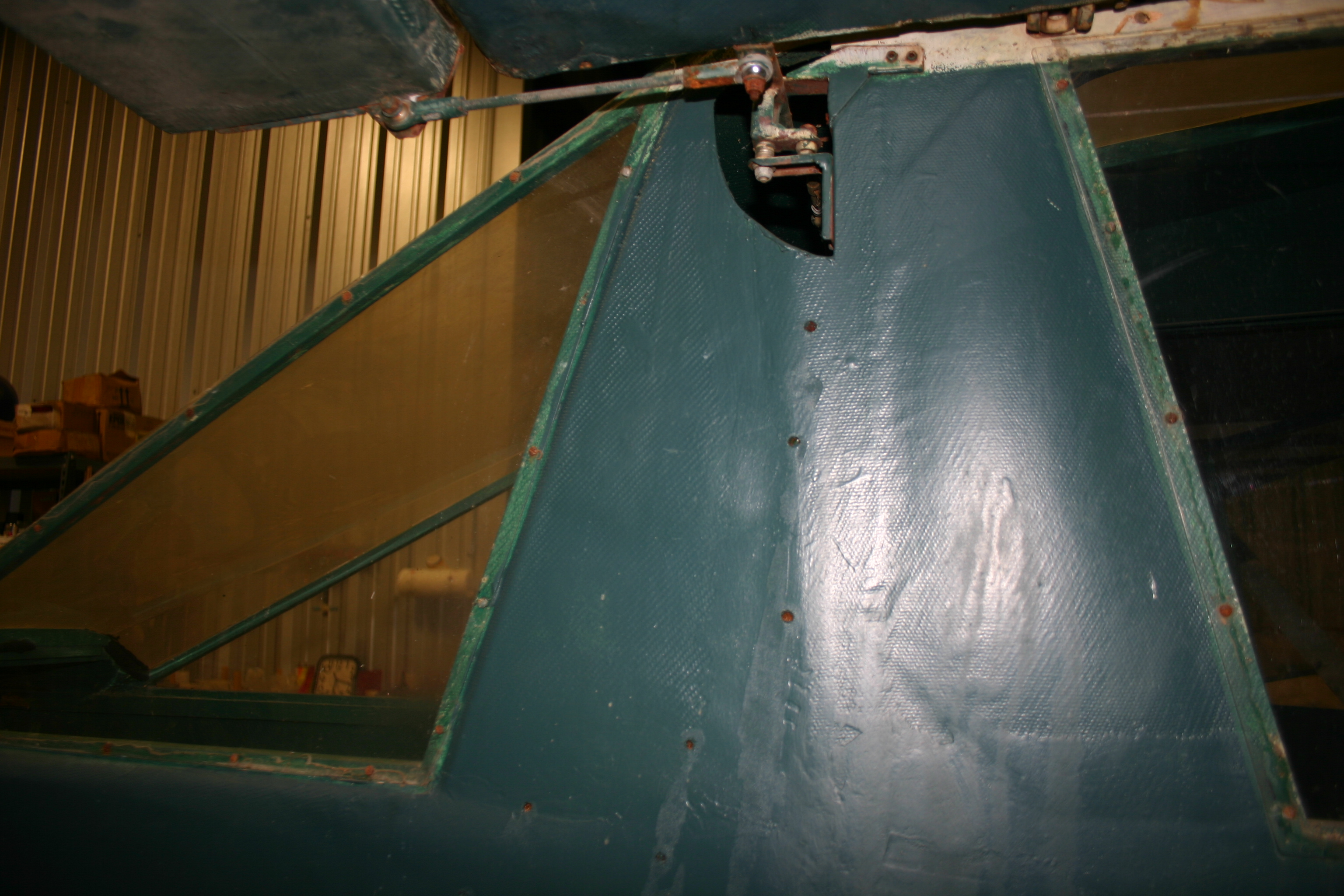

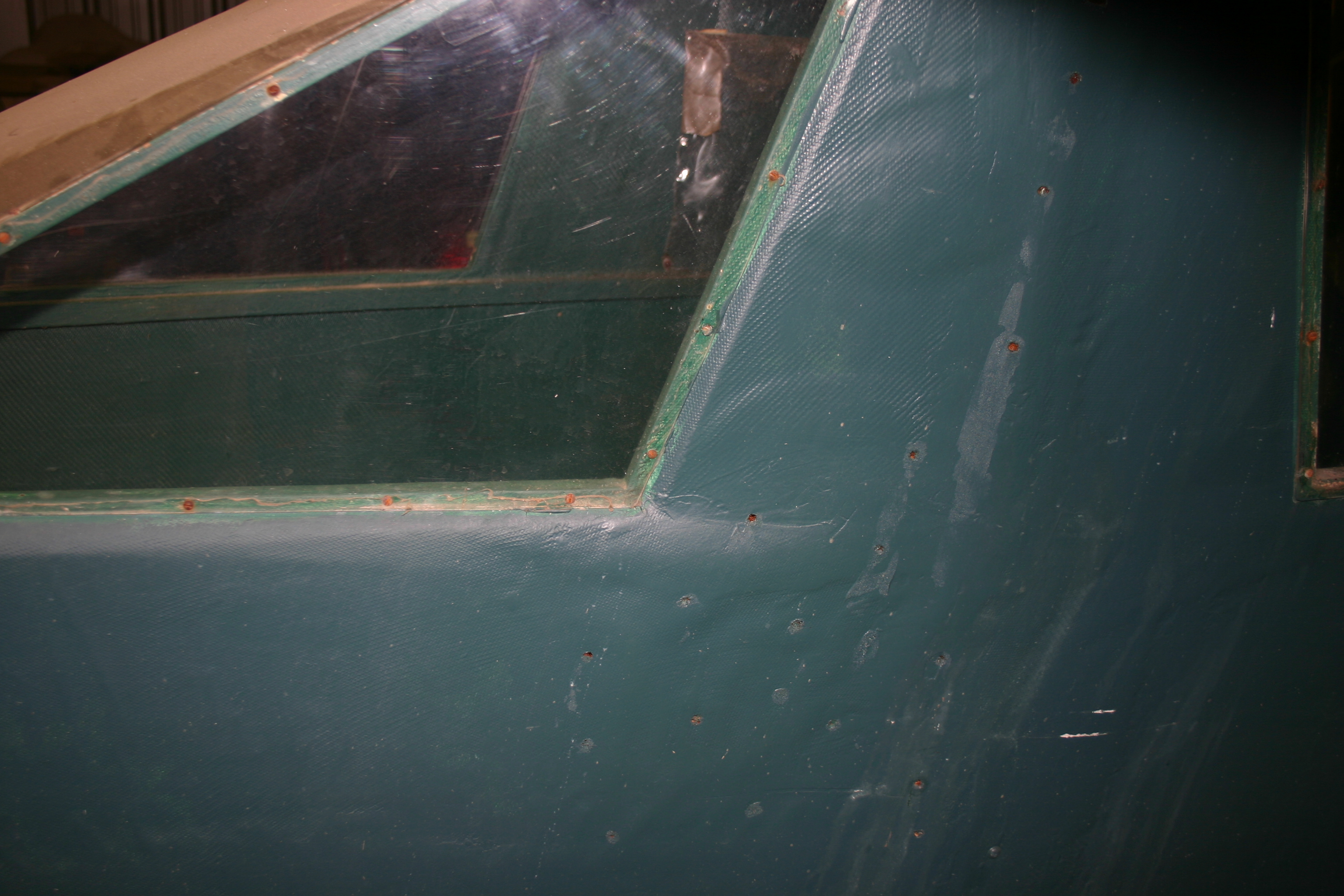

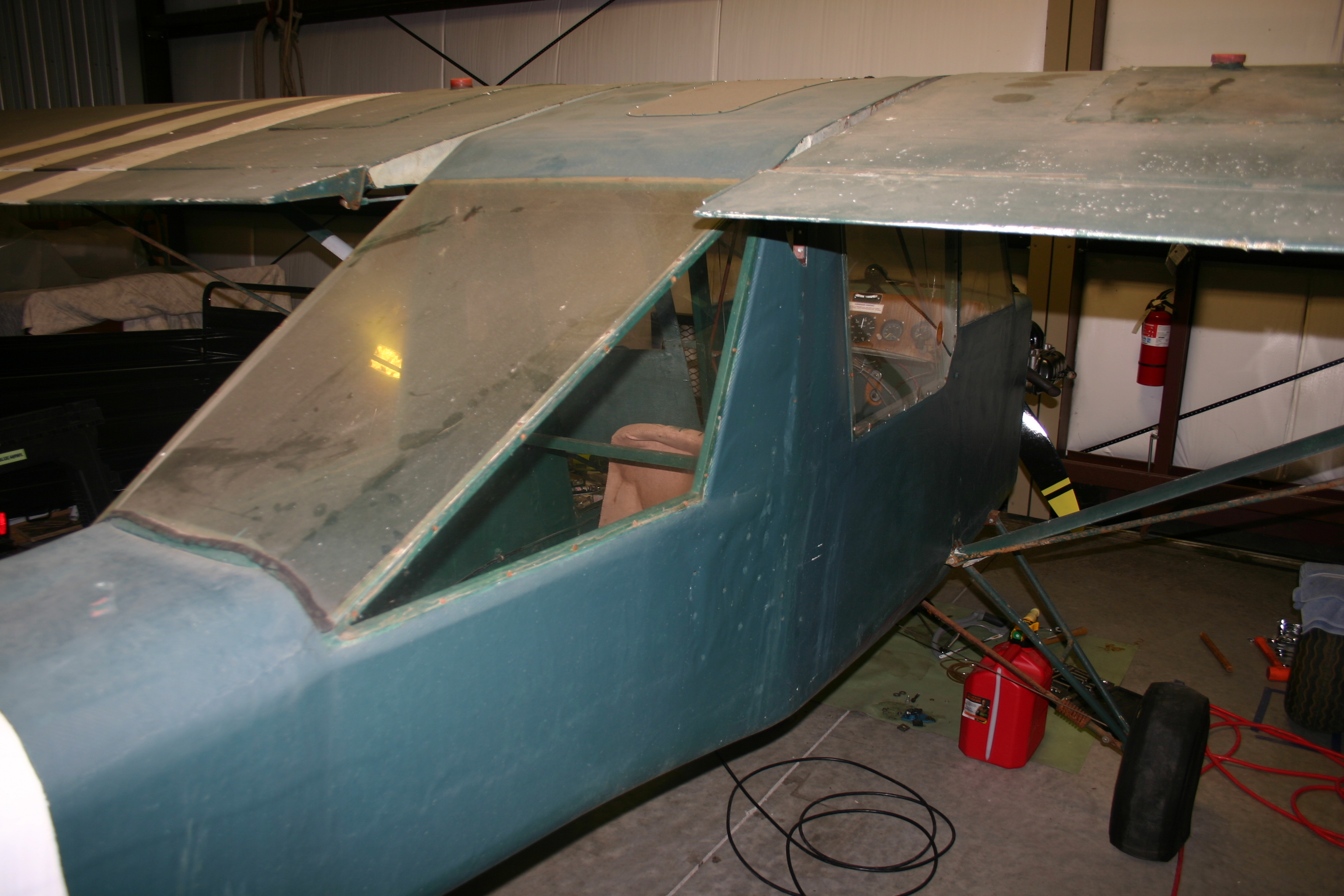

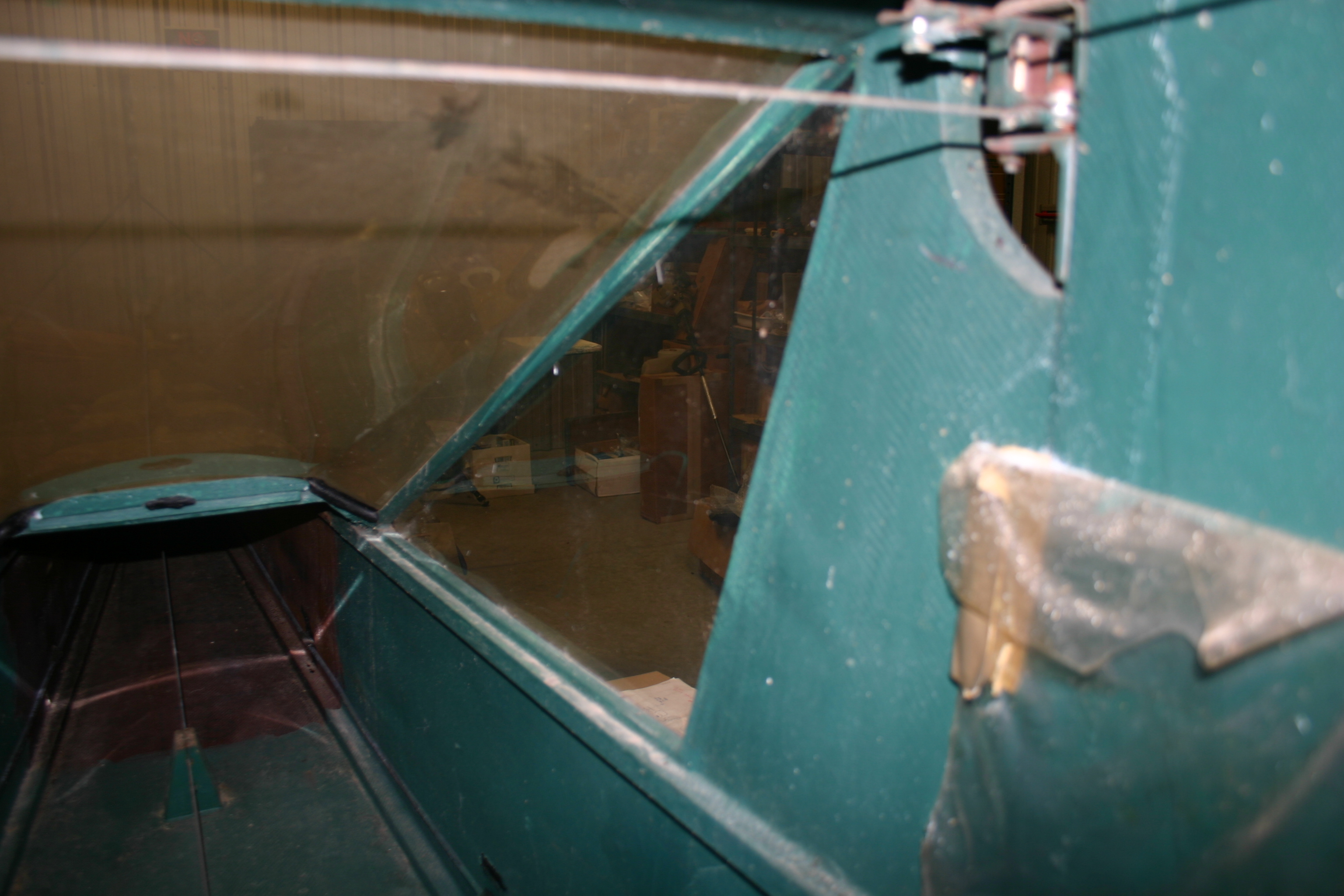

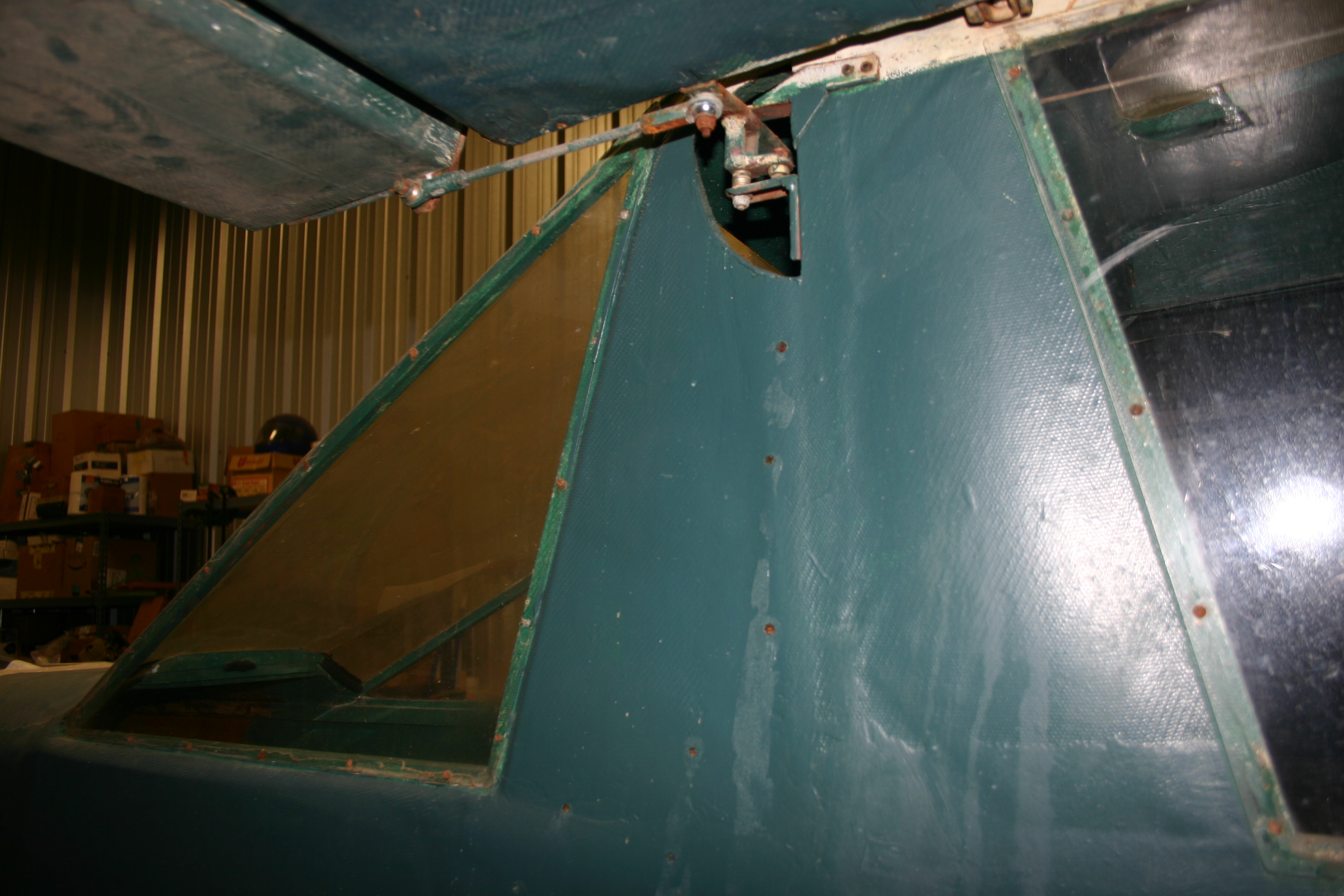

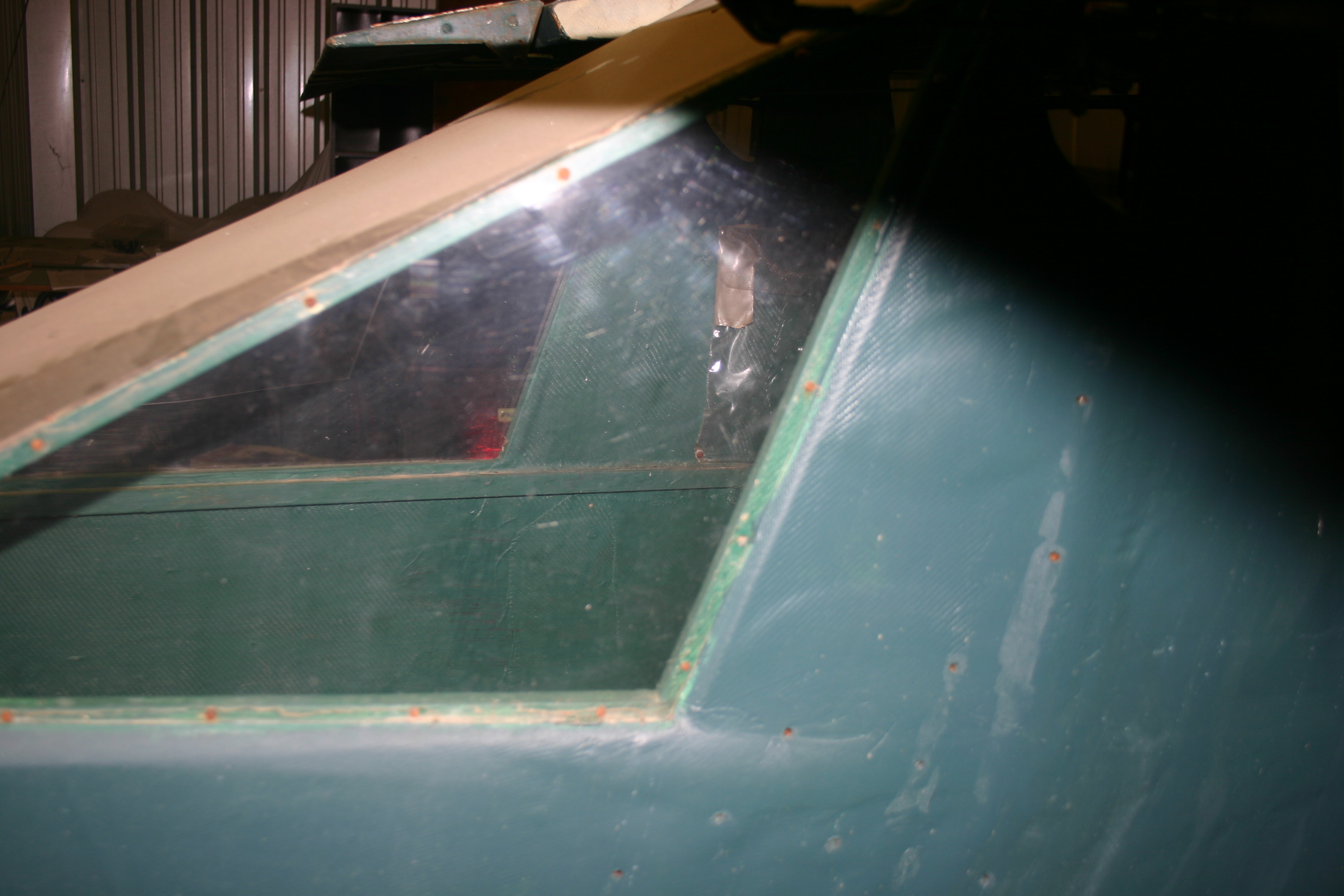

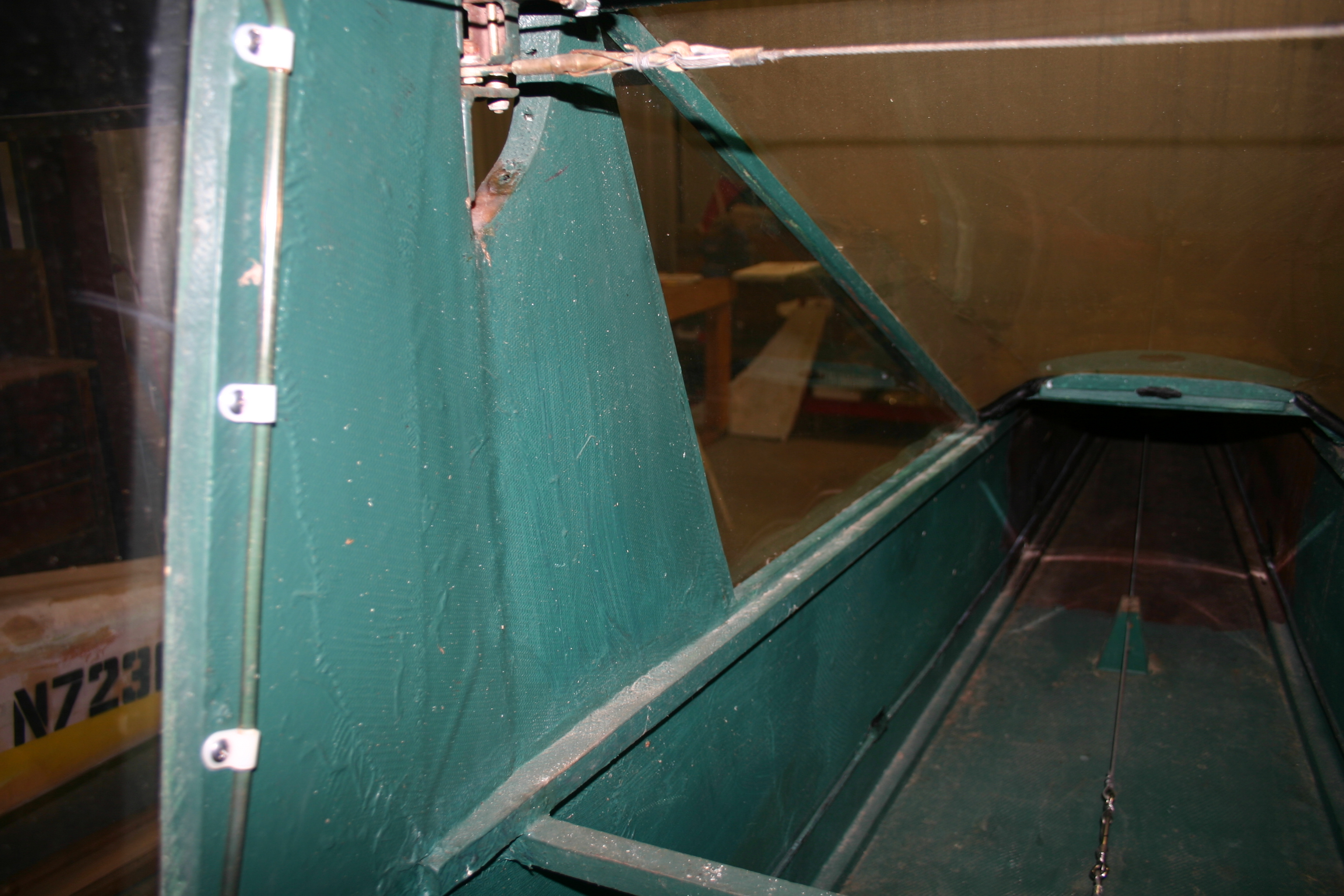

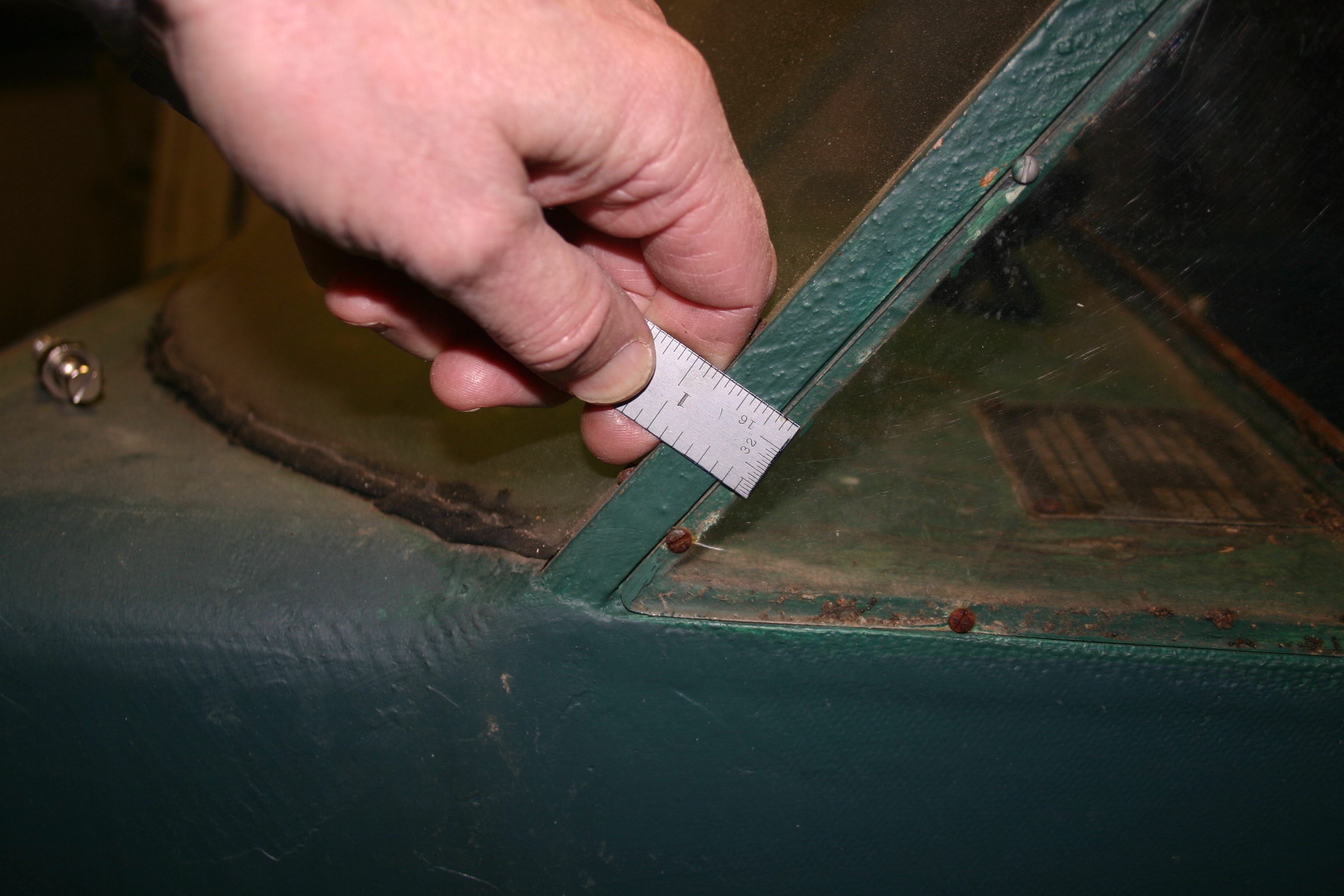

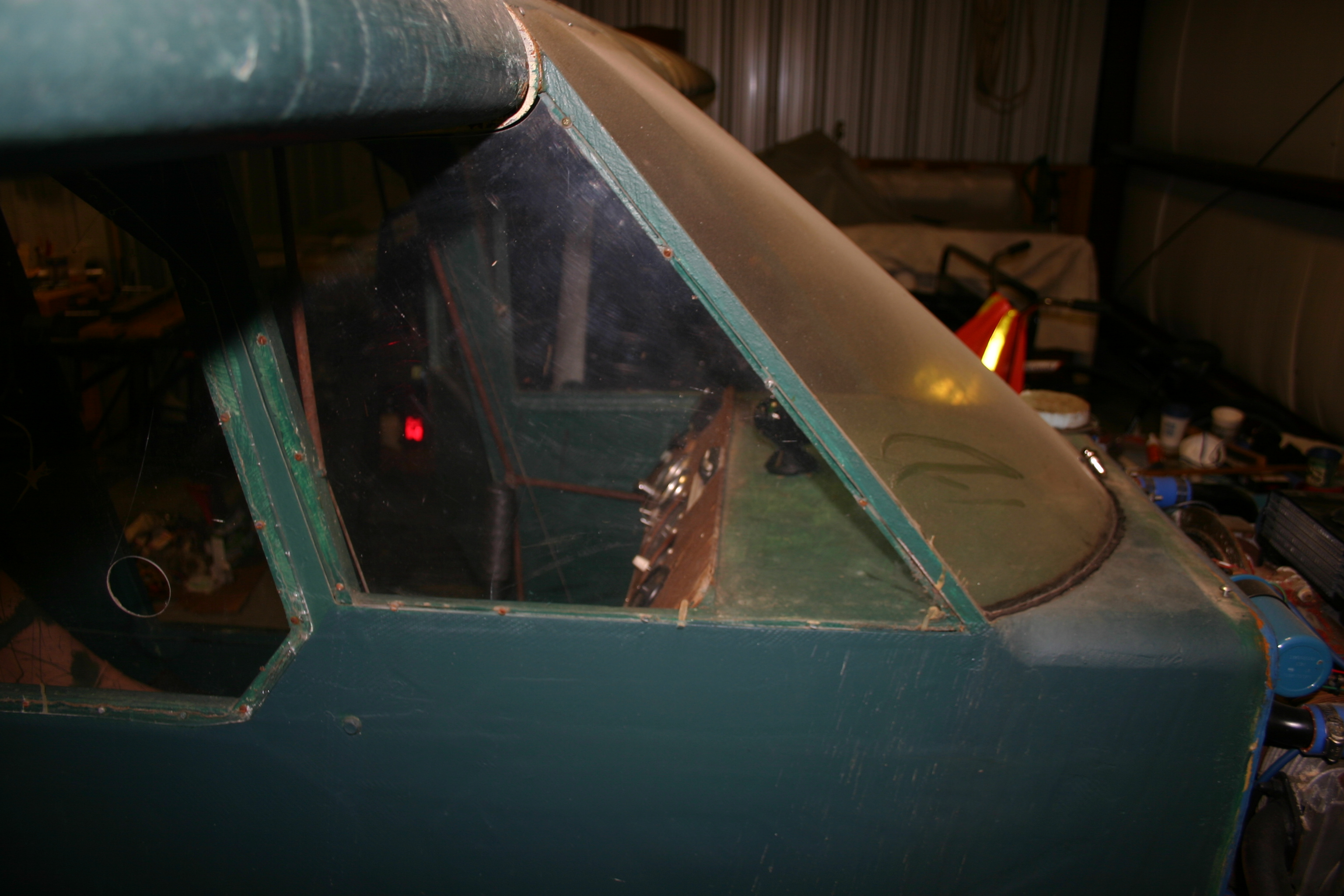

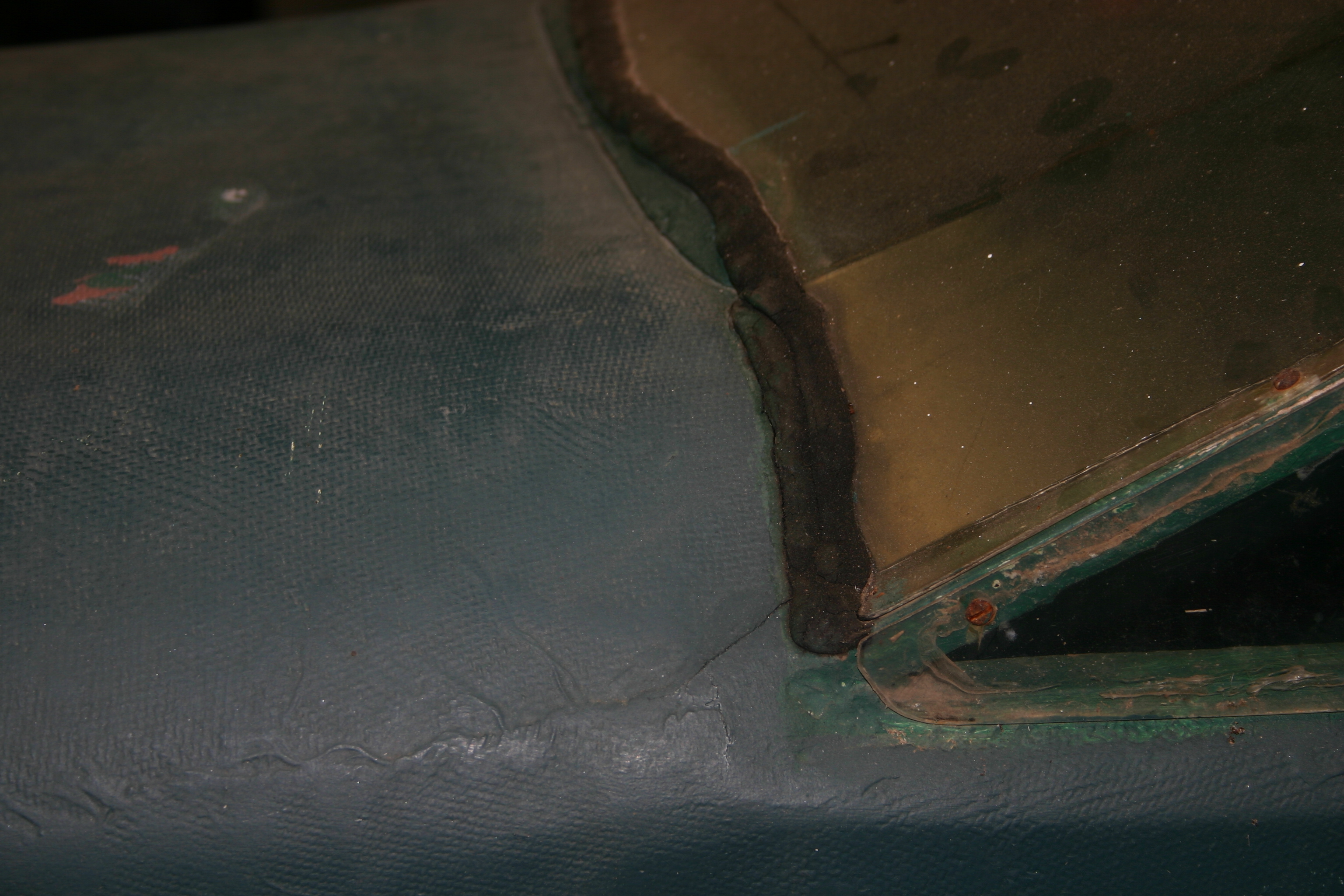

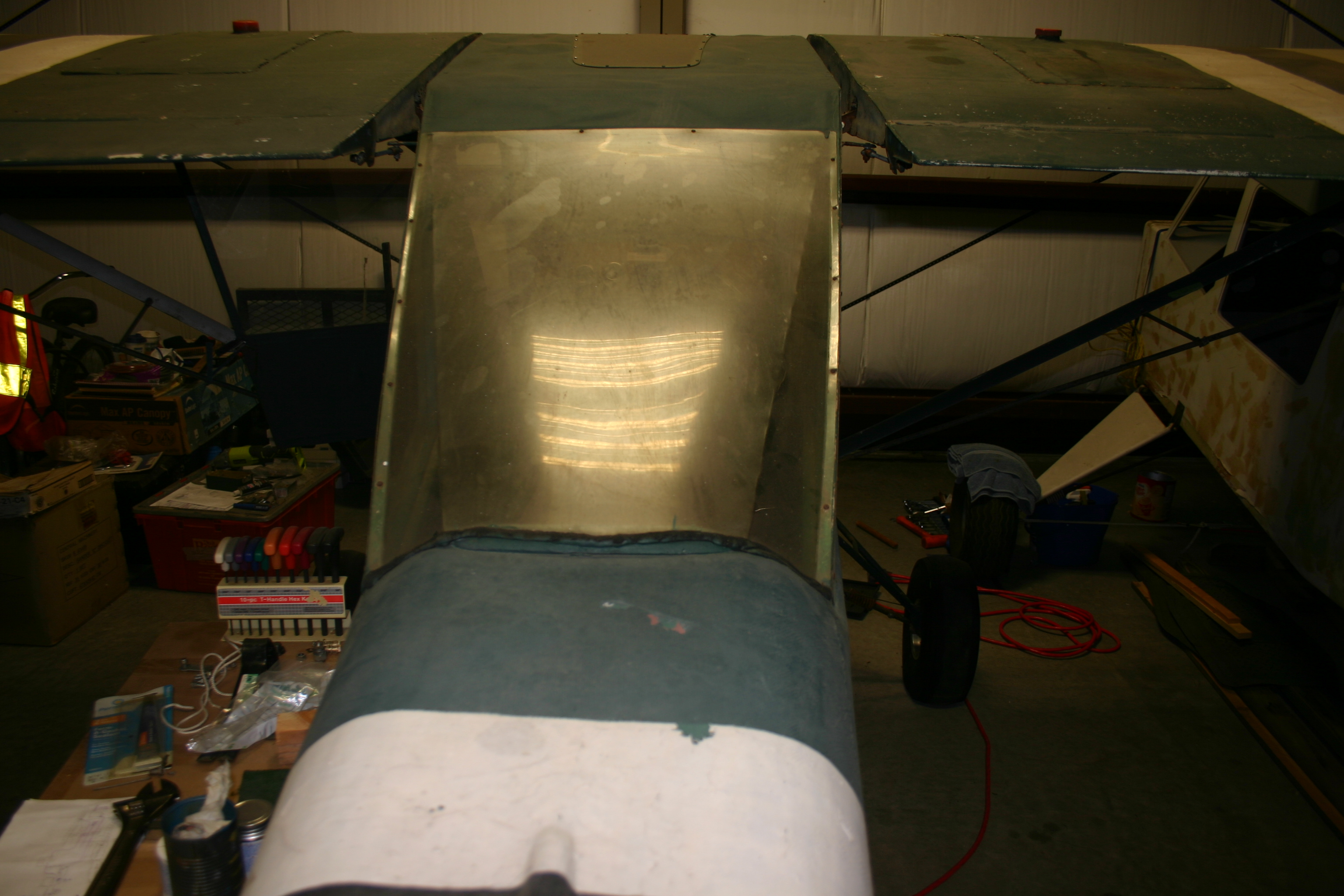

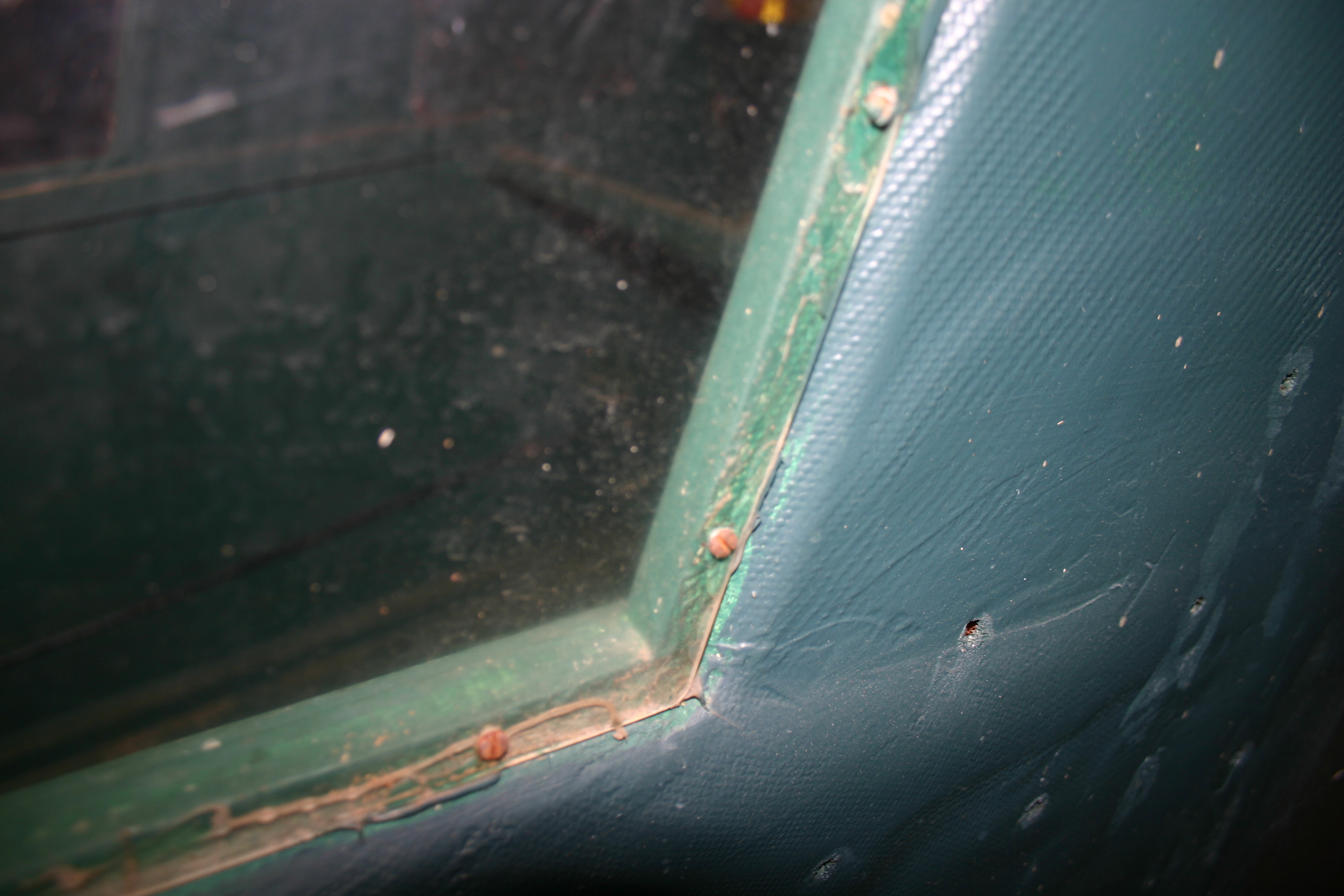

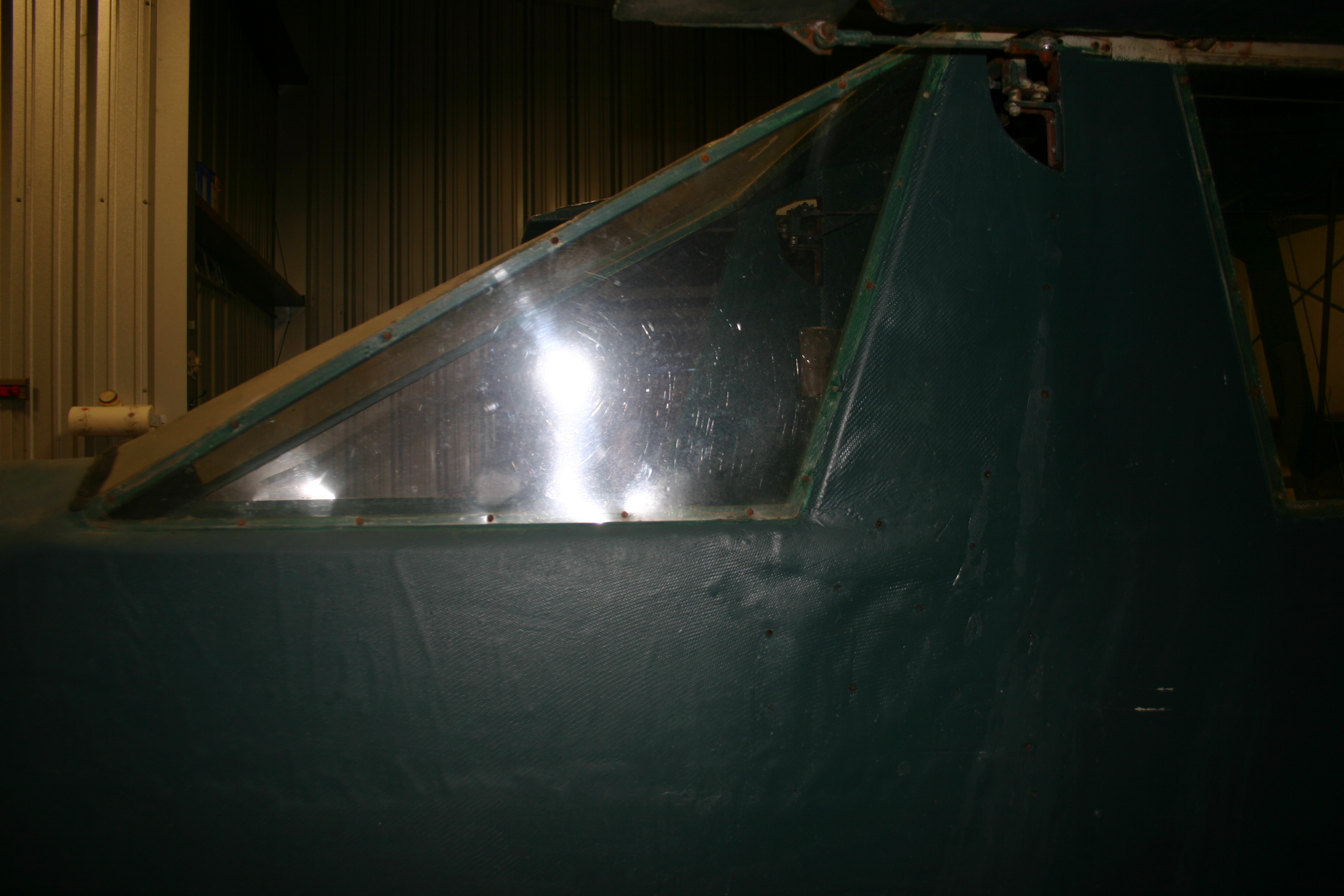

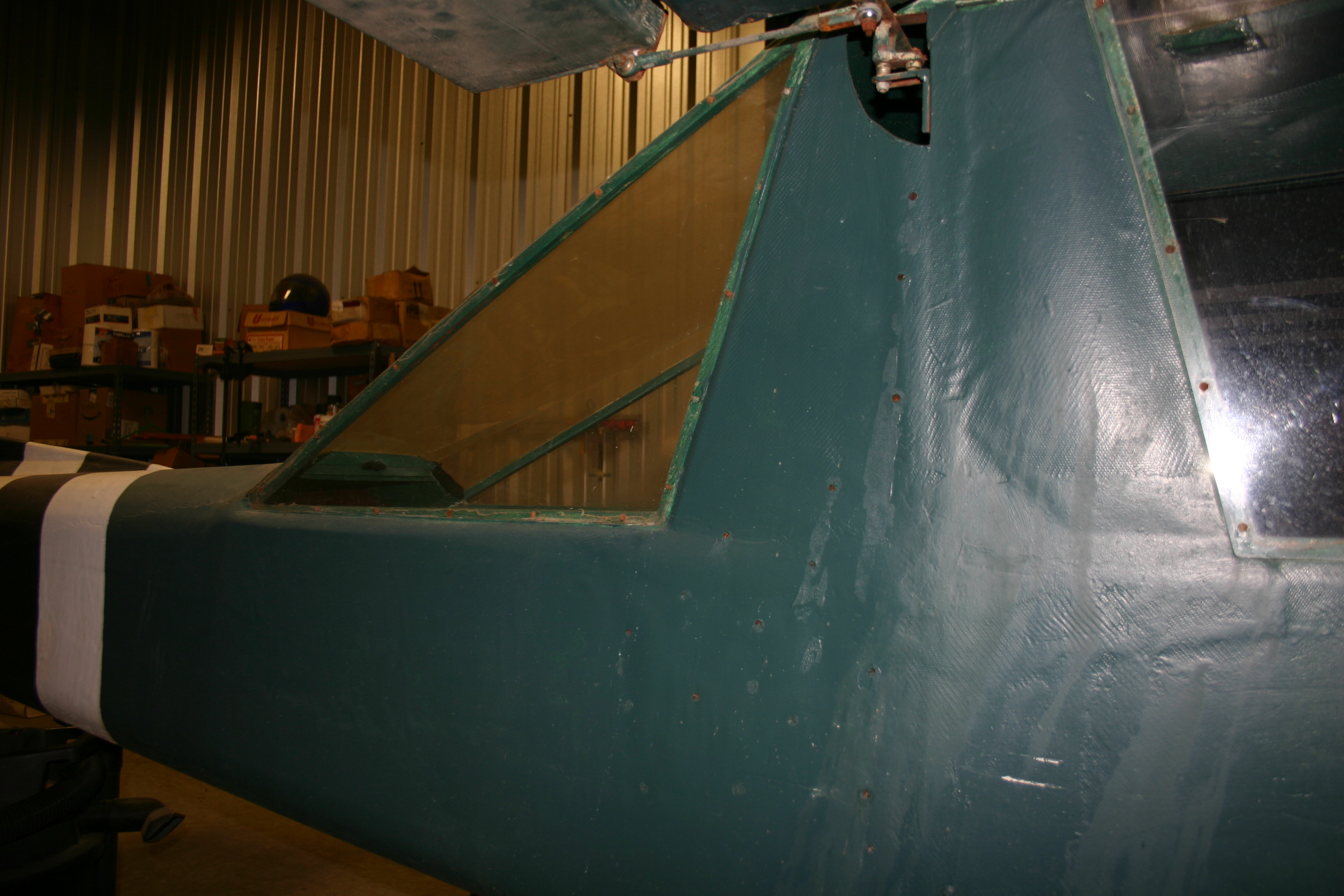

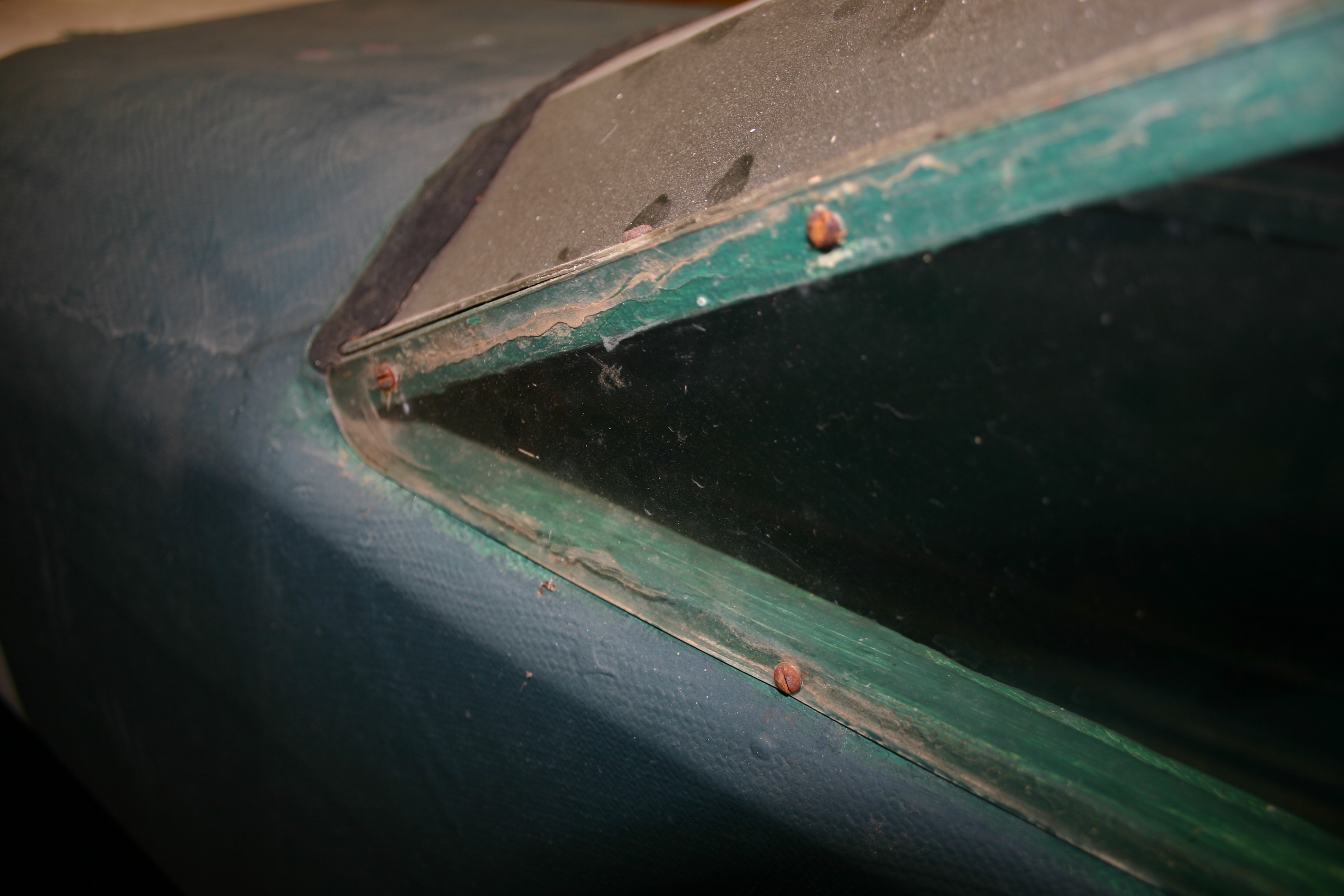

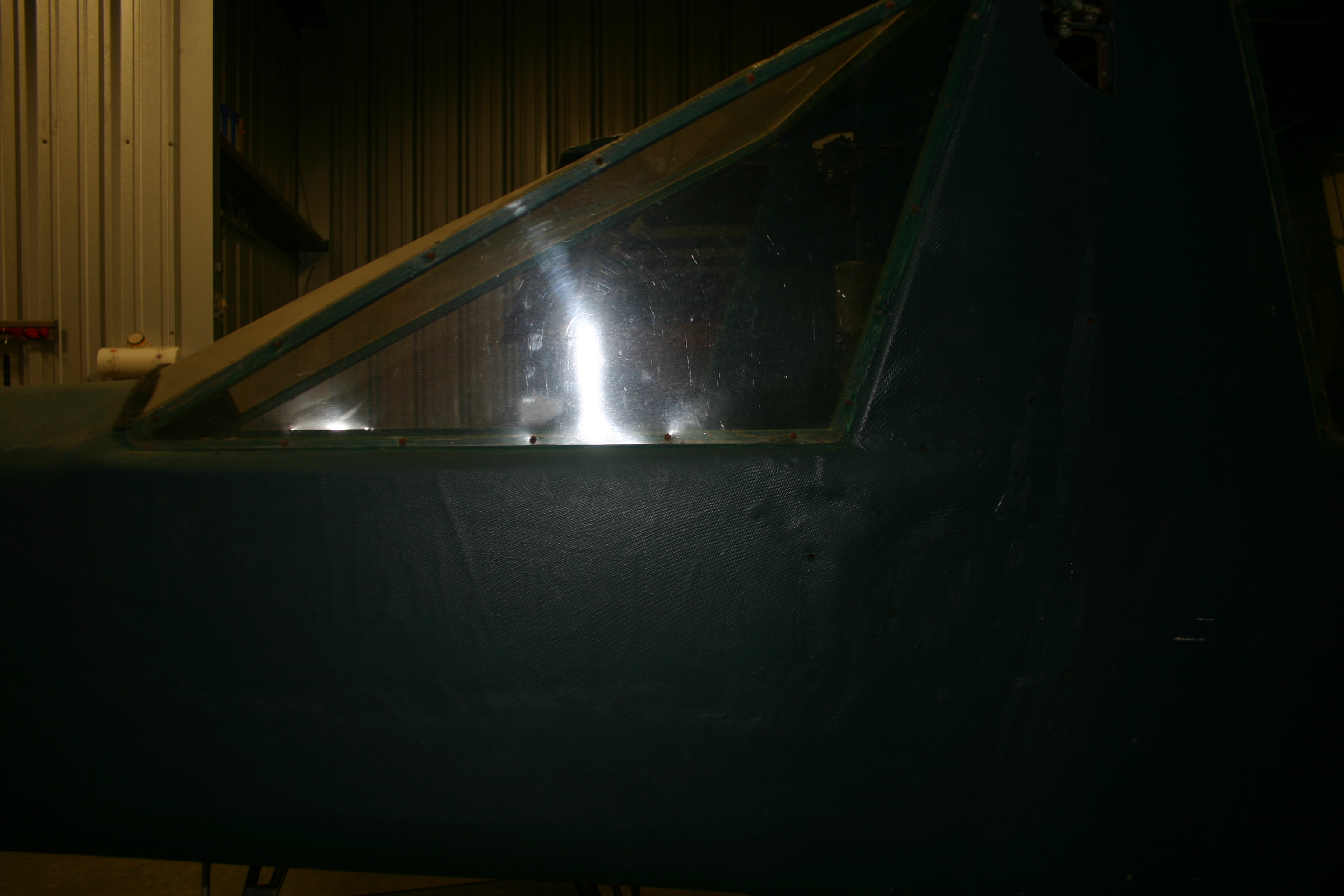

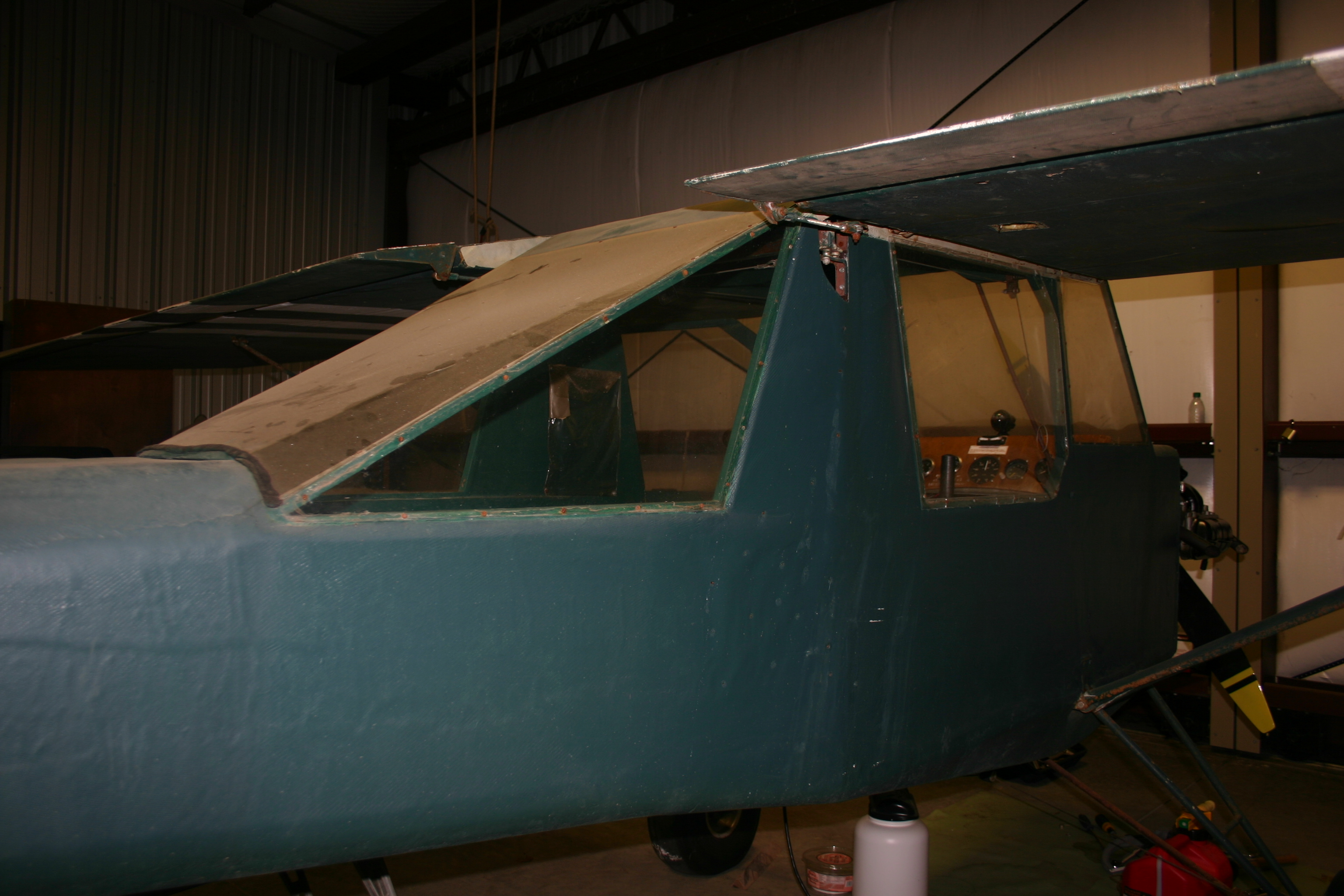

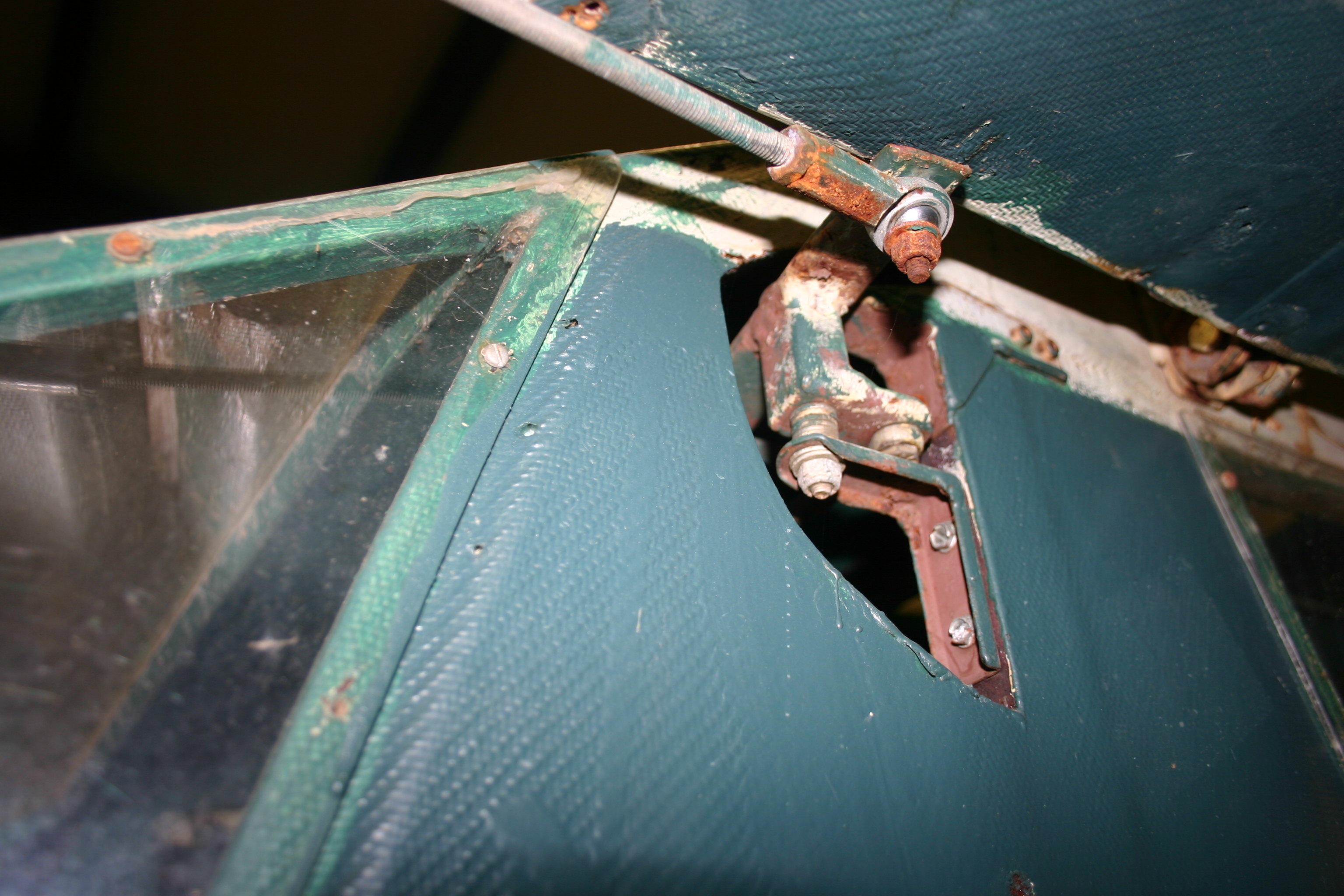

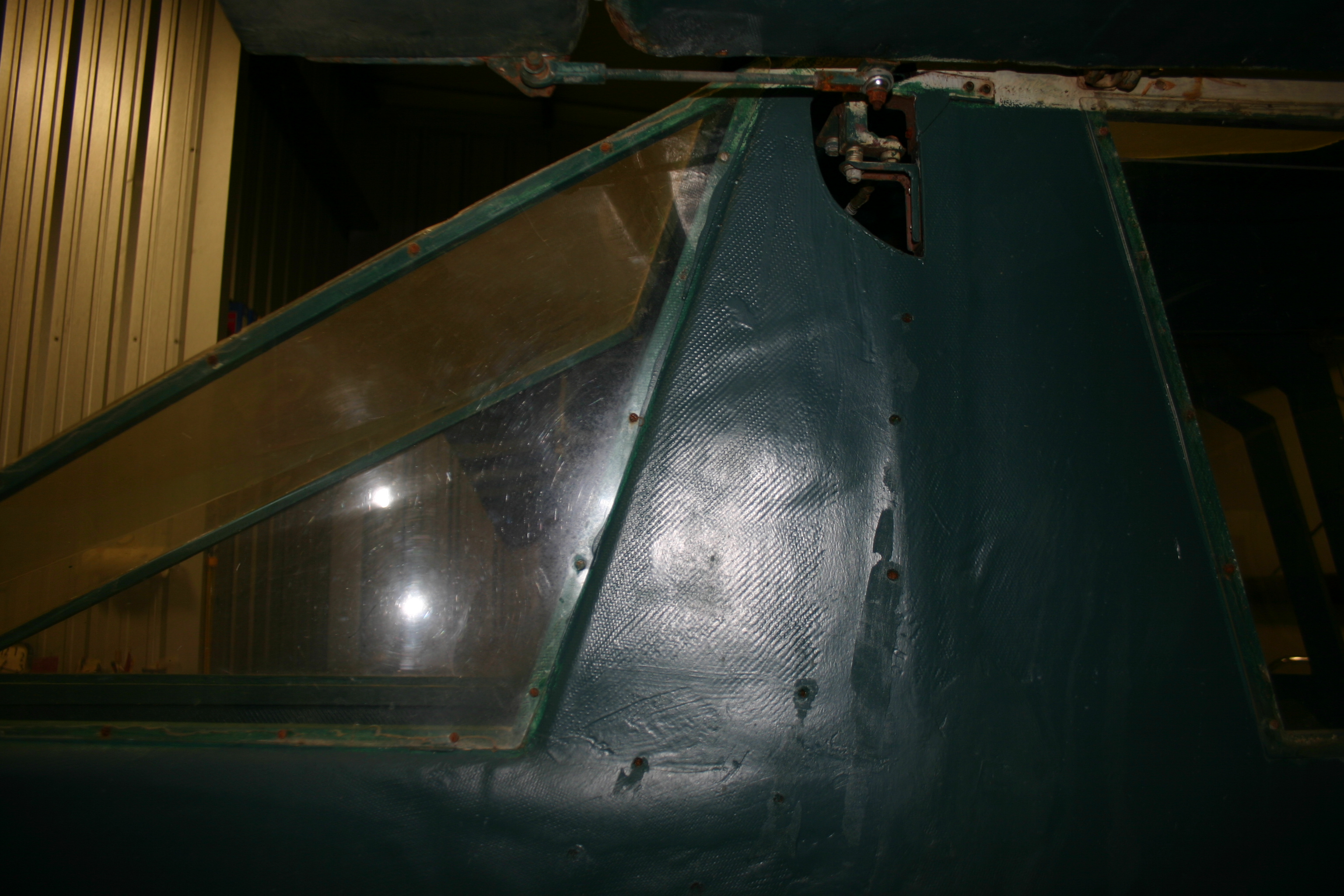

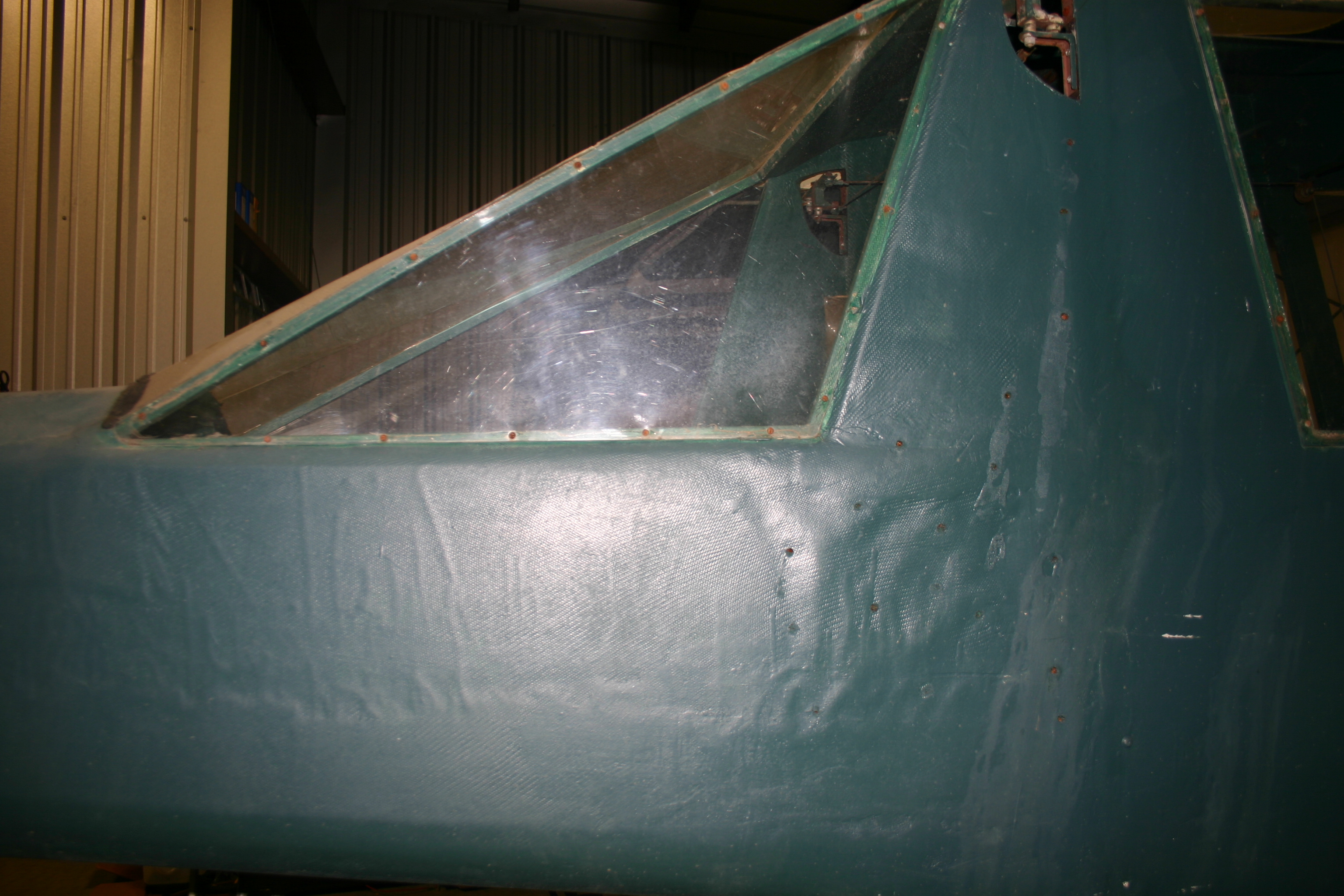

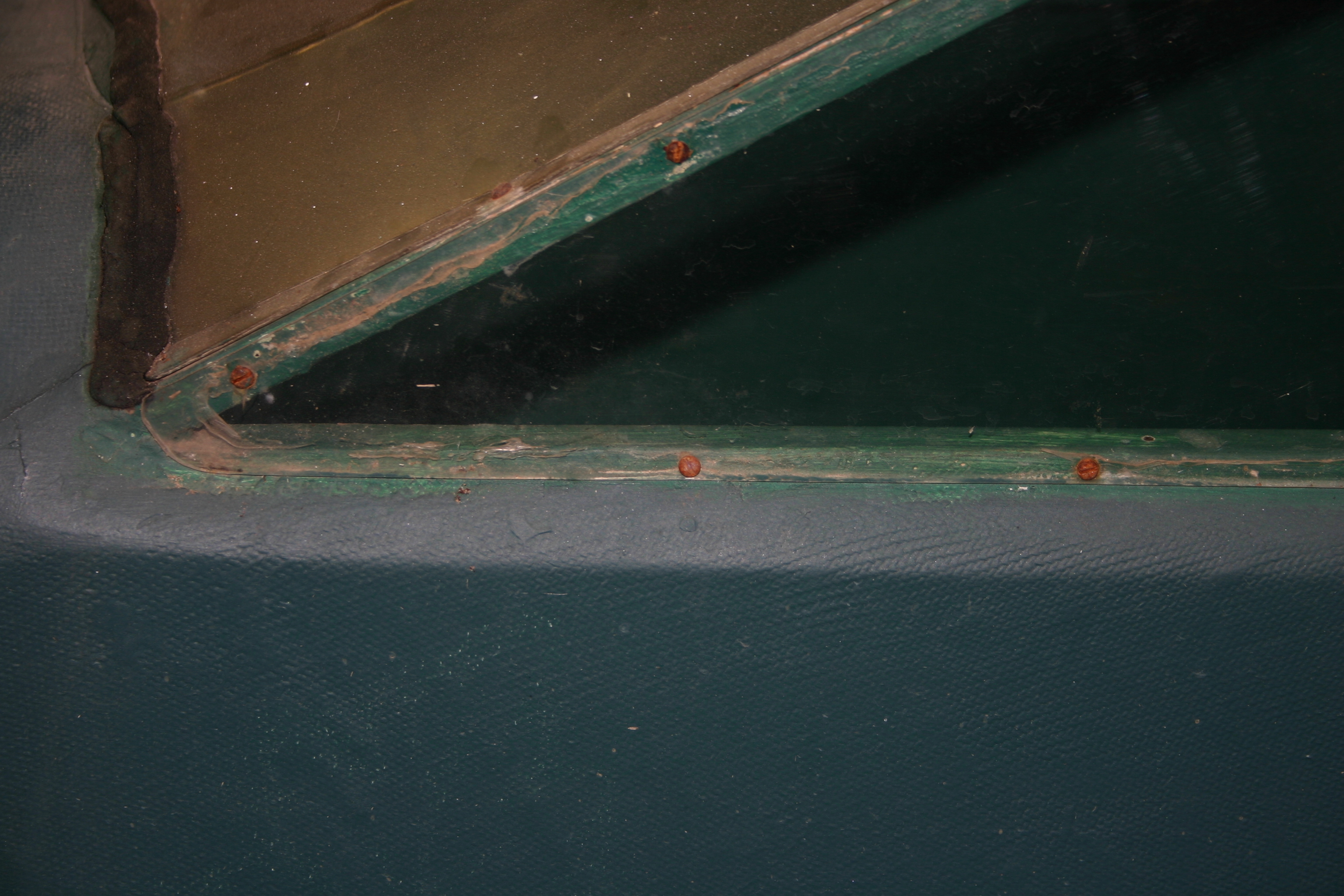

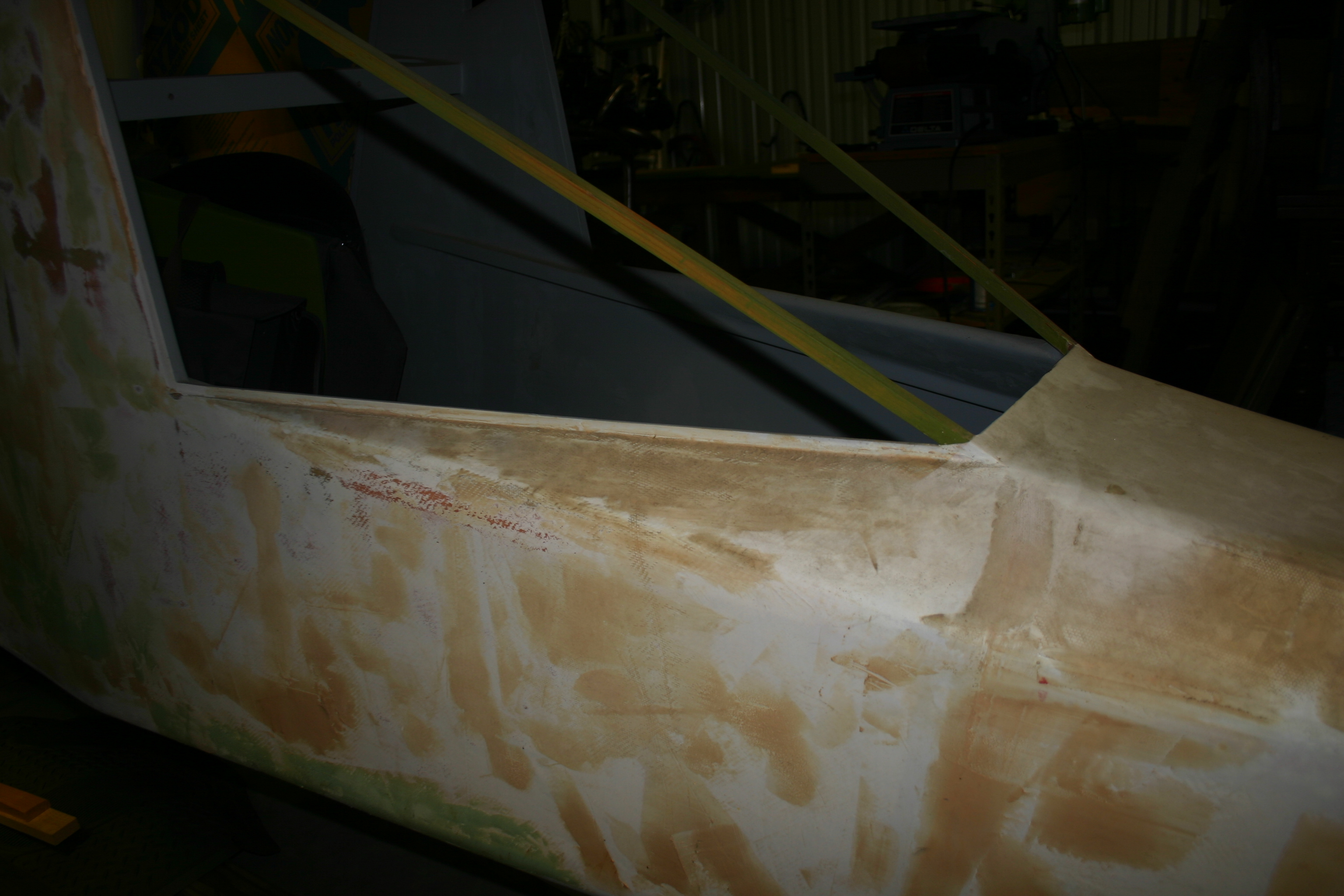

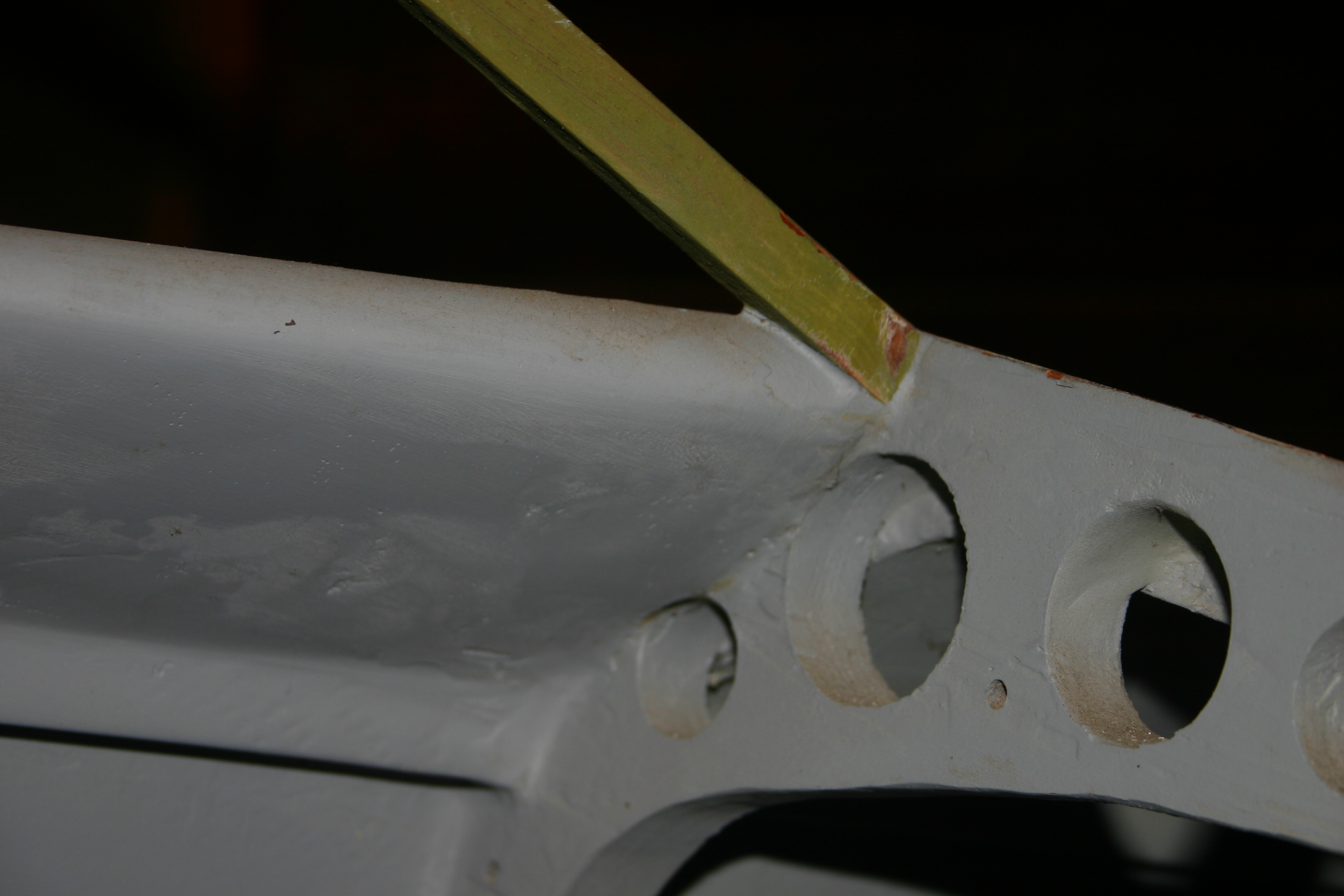

Rear window framing details

Roll control

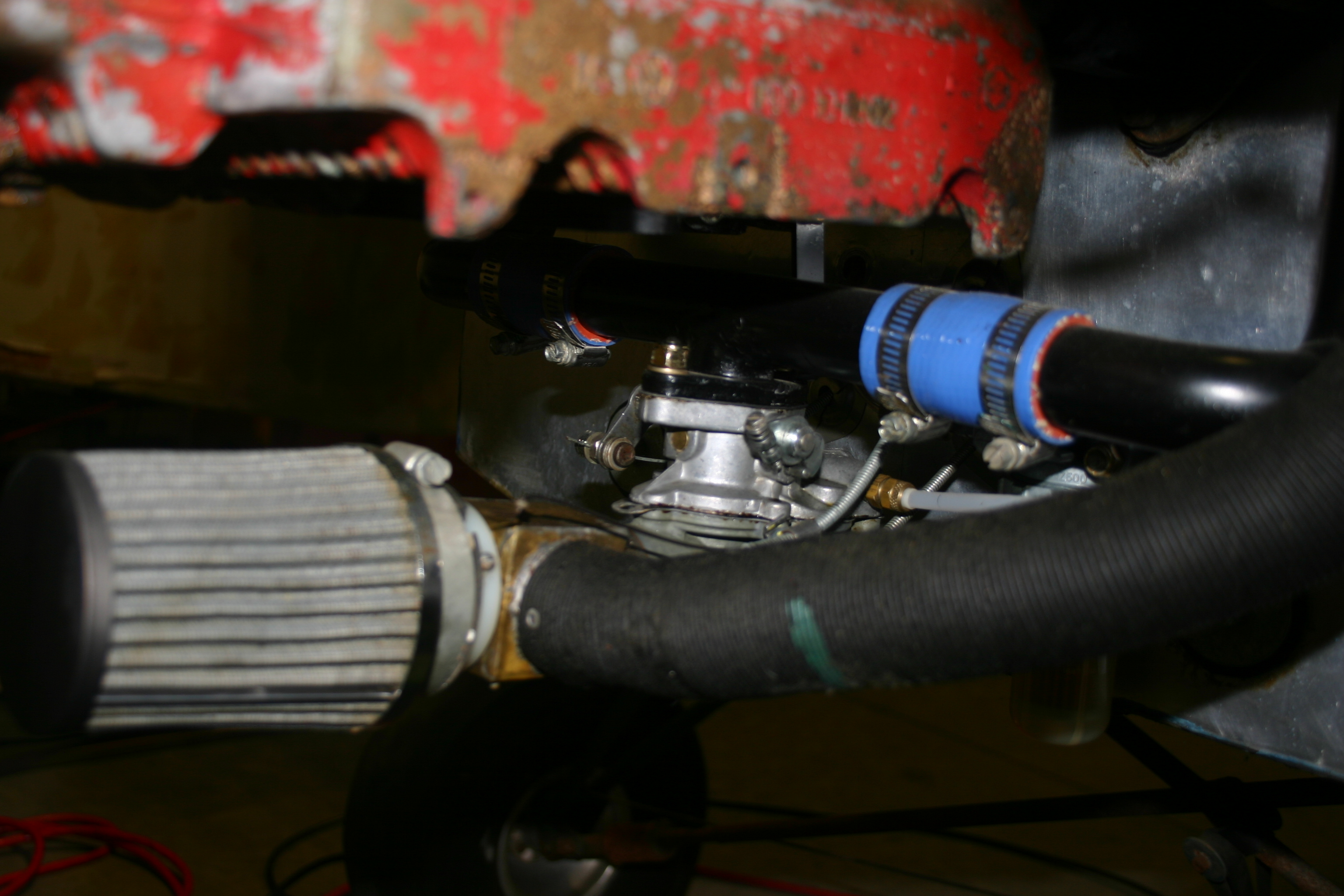

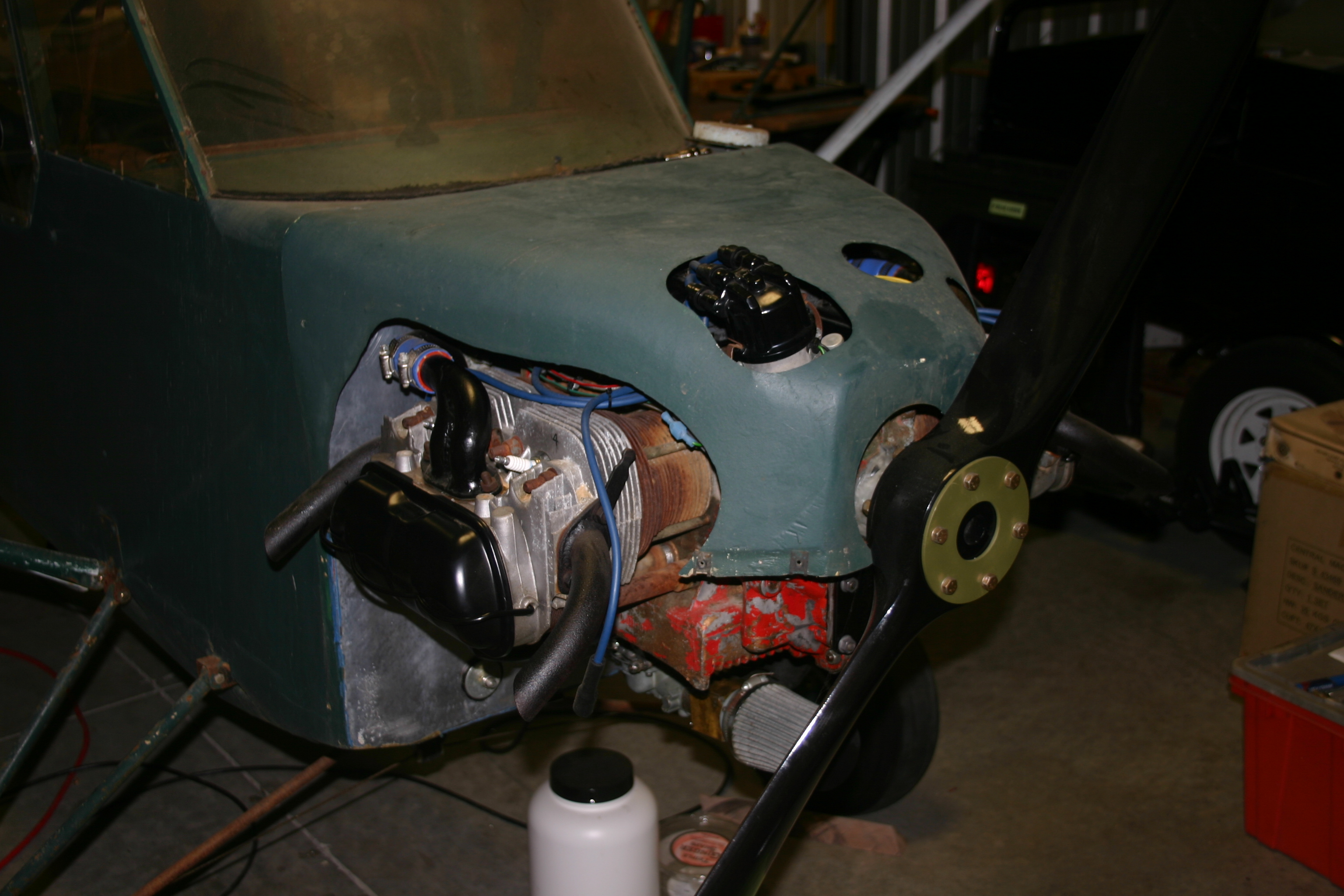

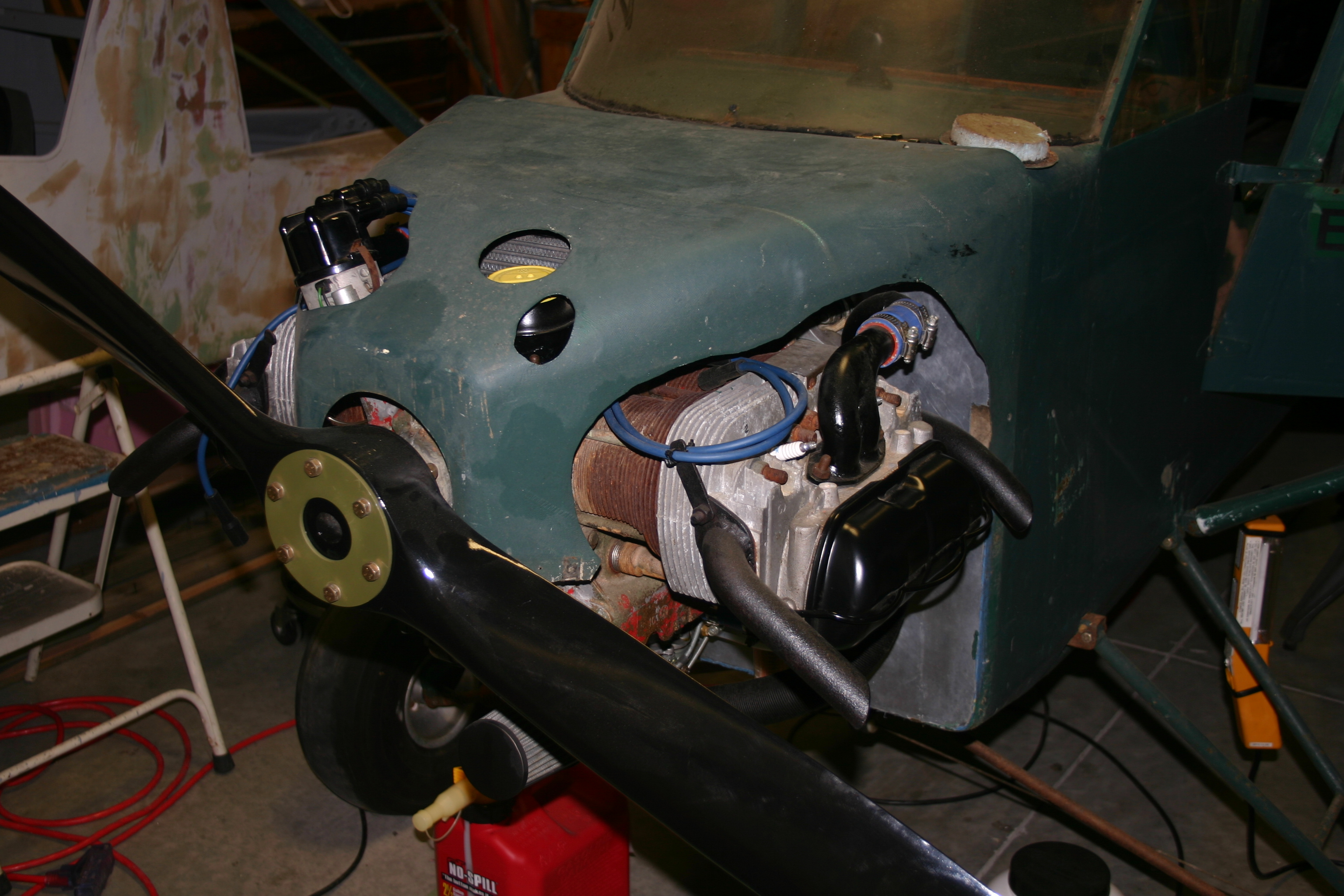

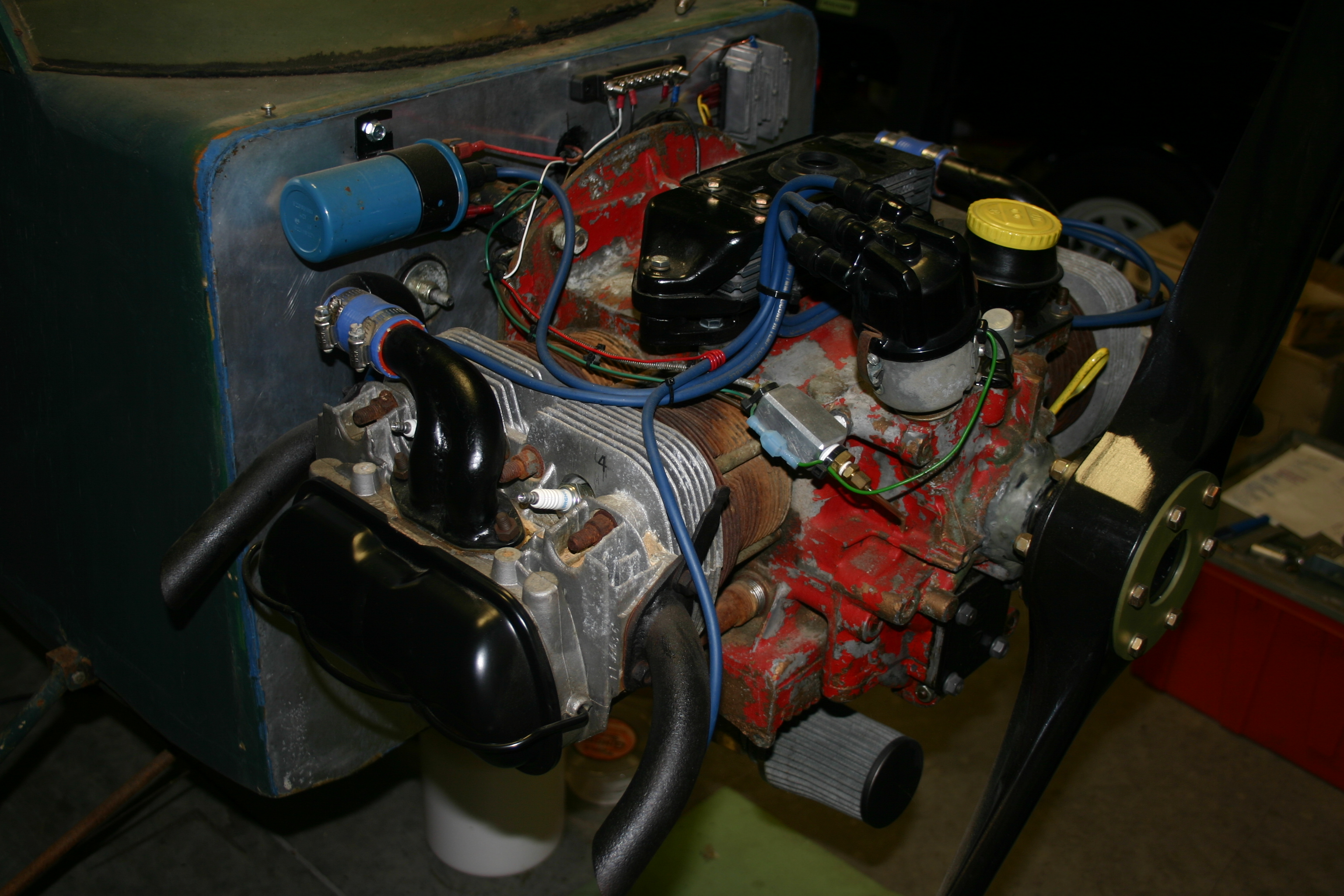

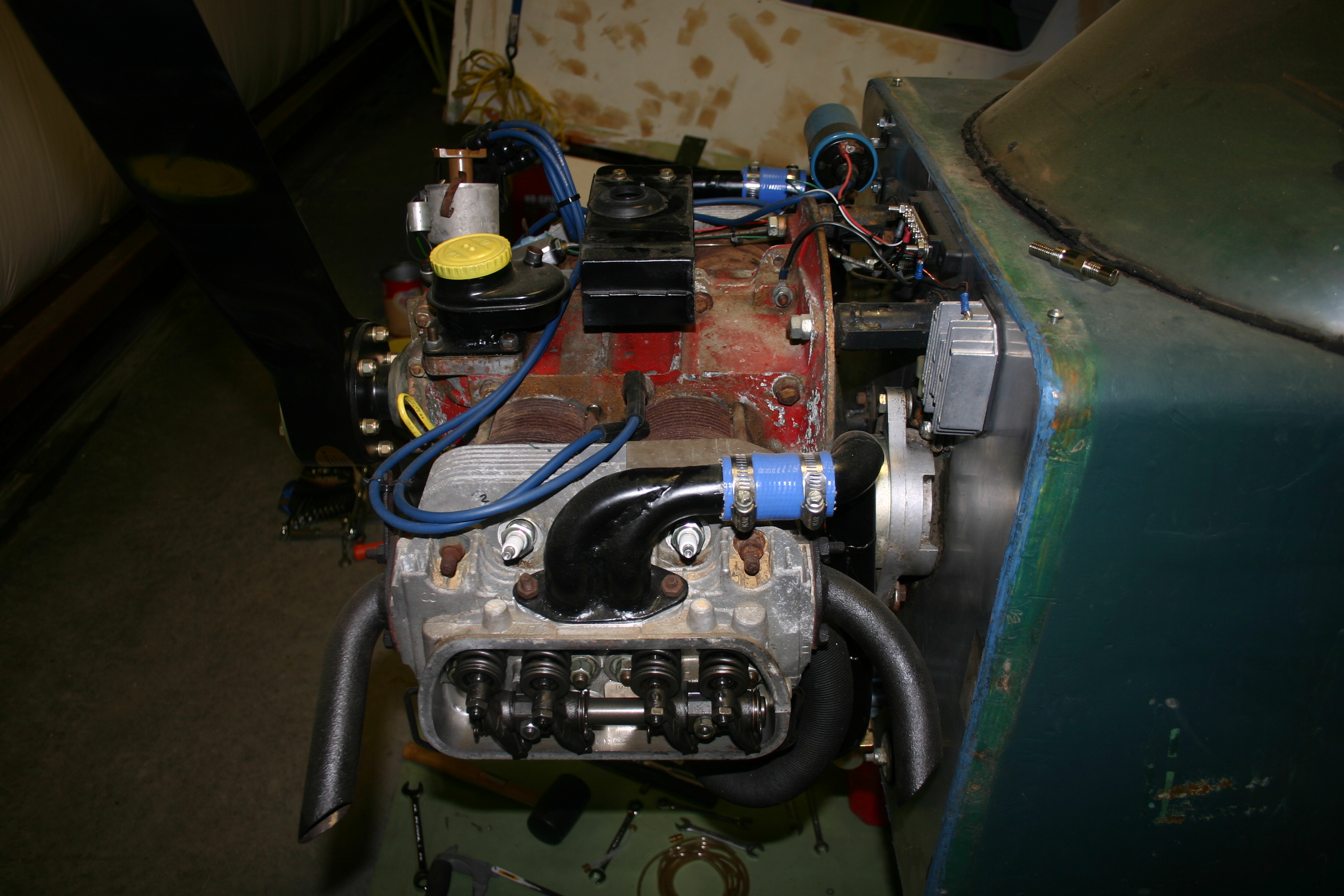

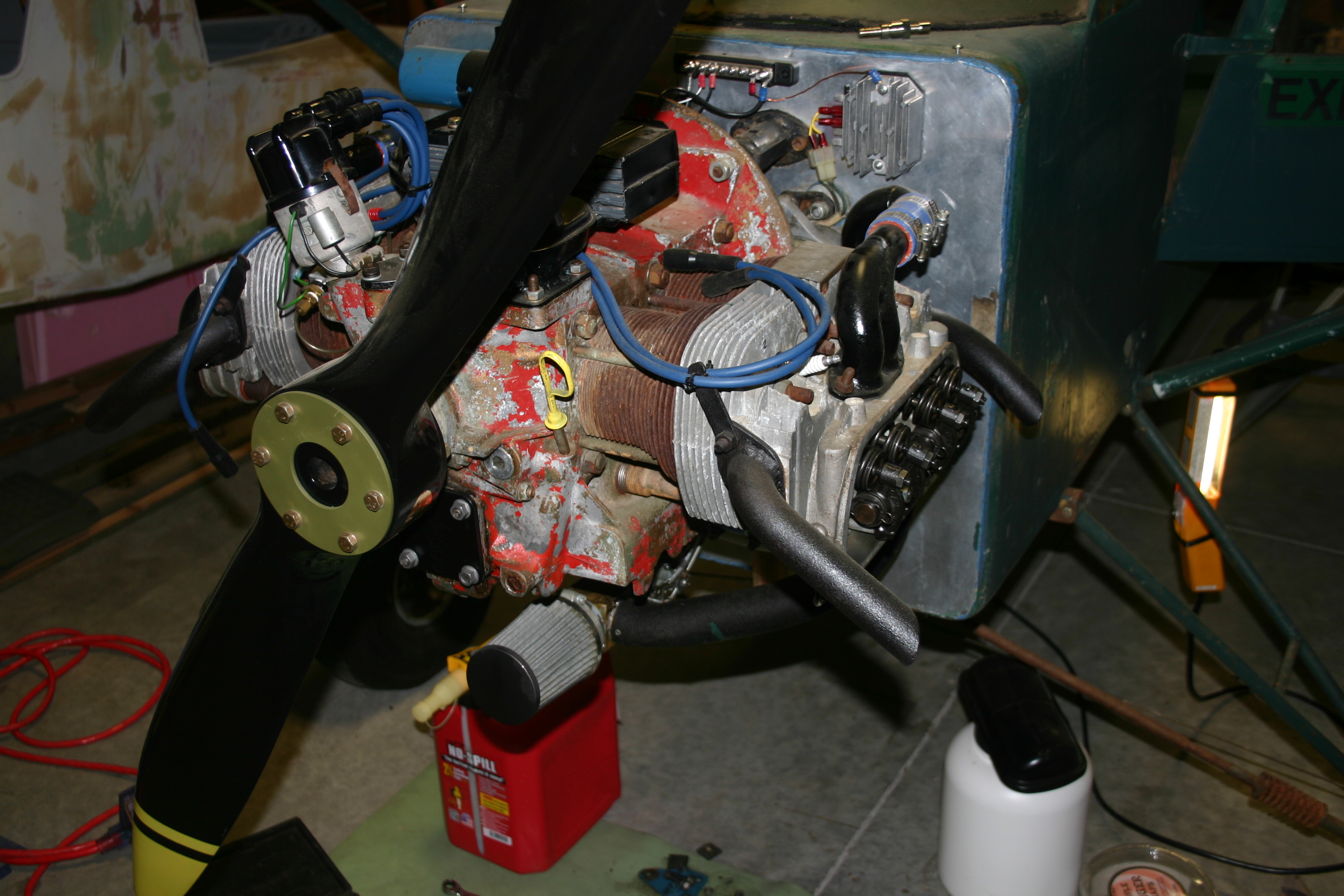

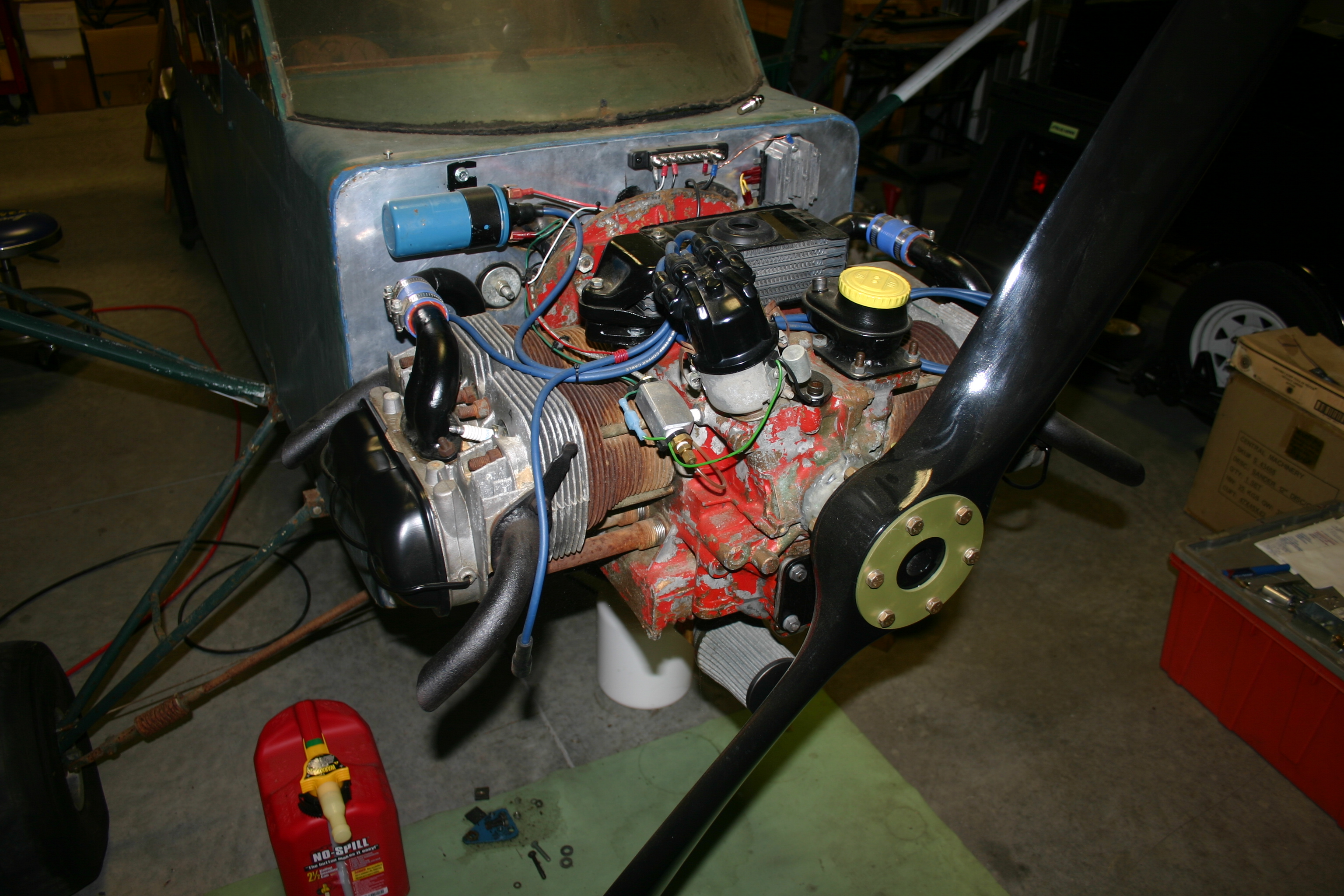

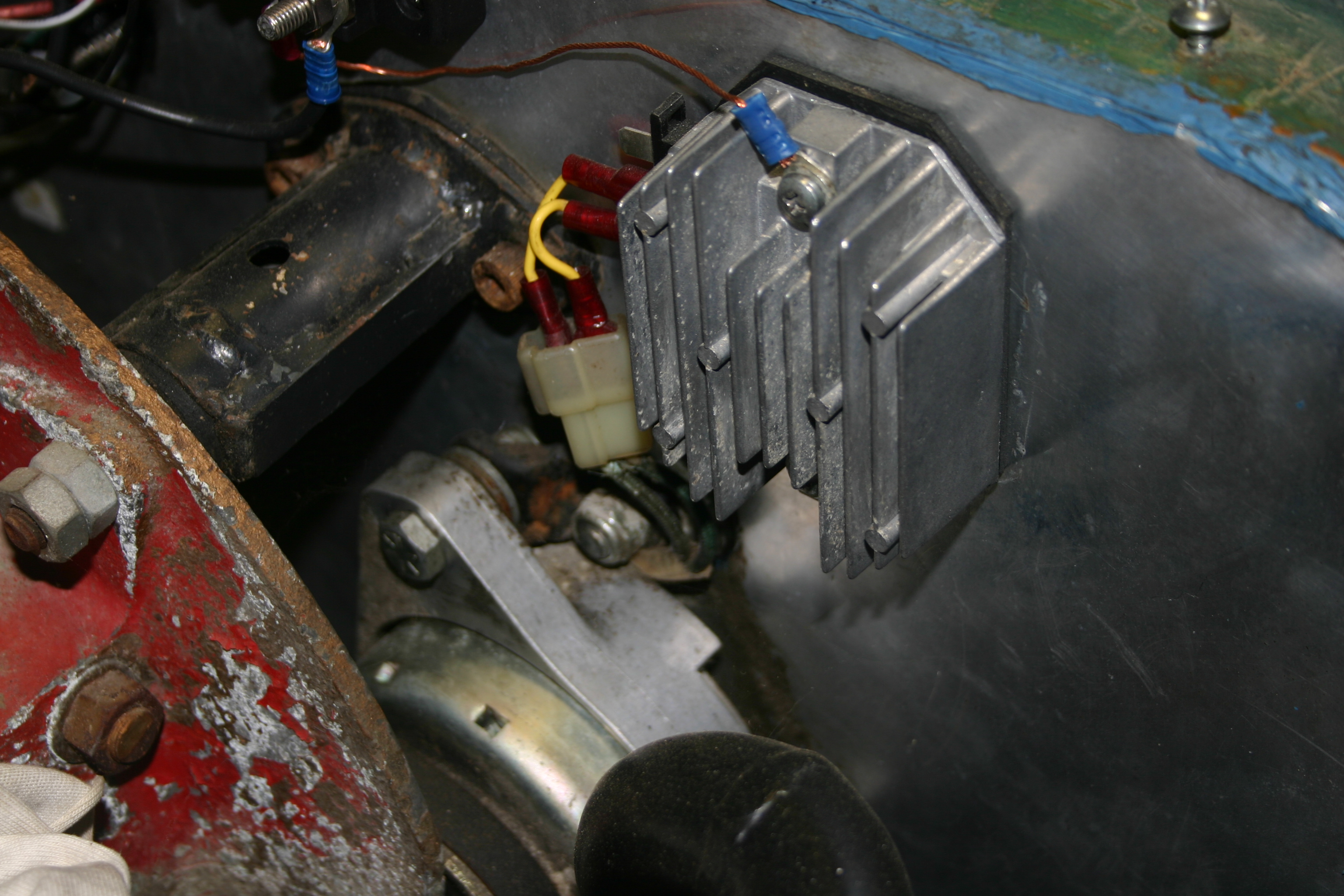

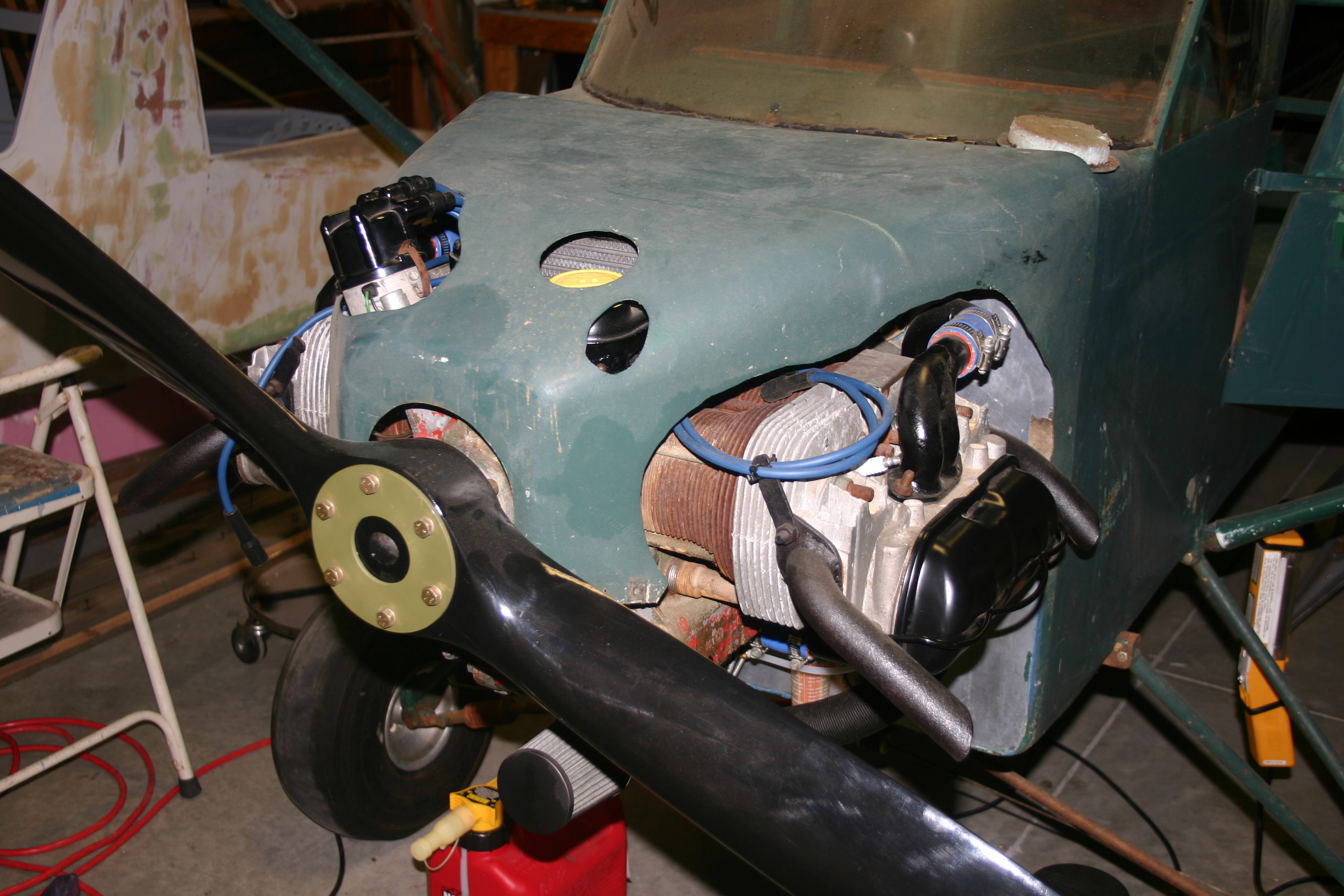

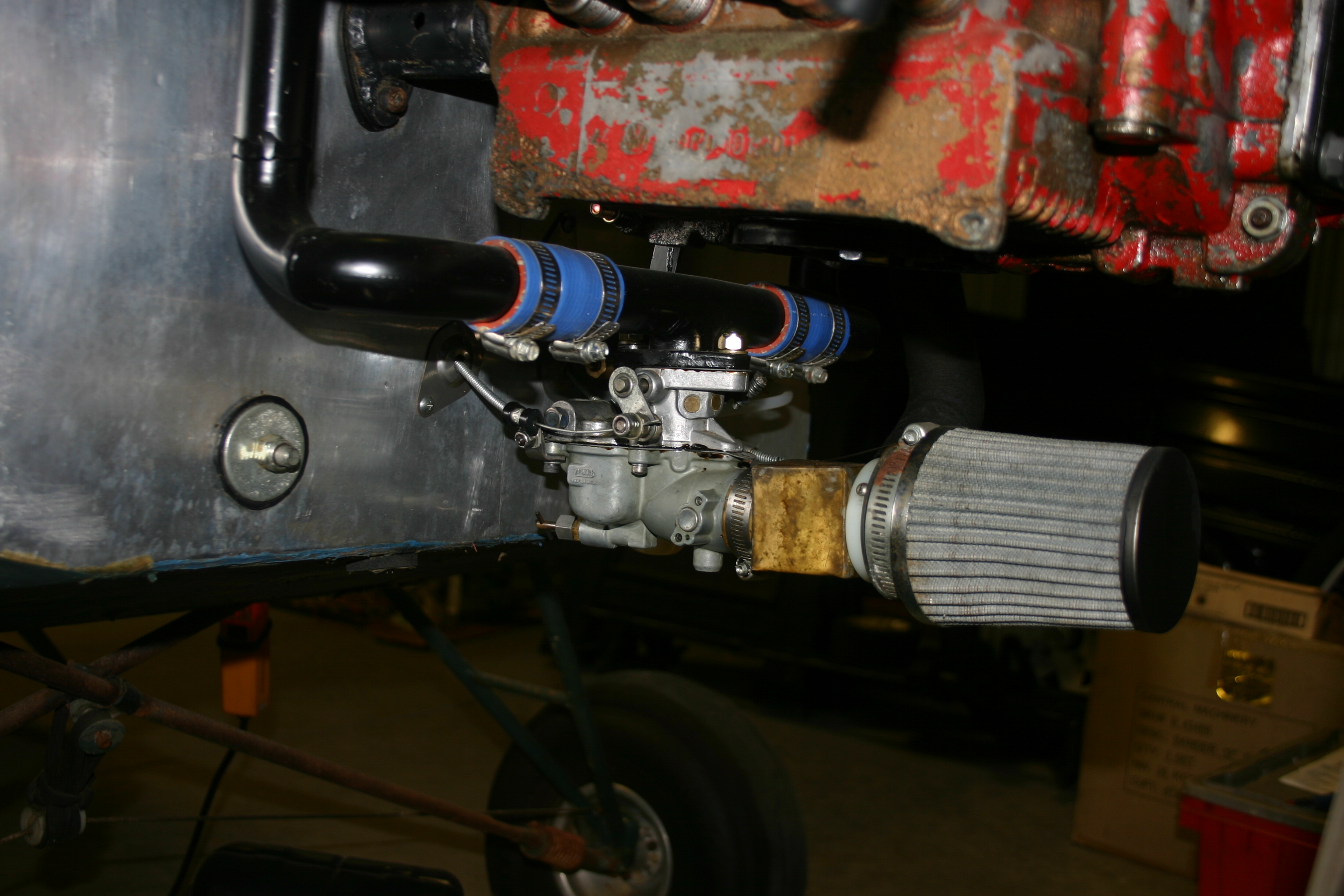

Engine installation details

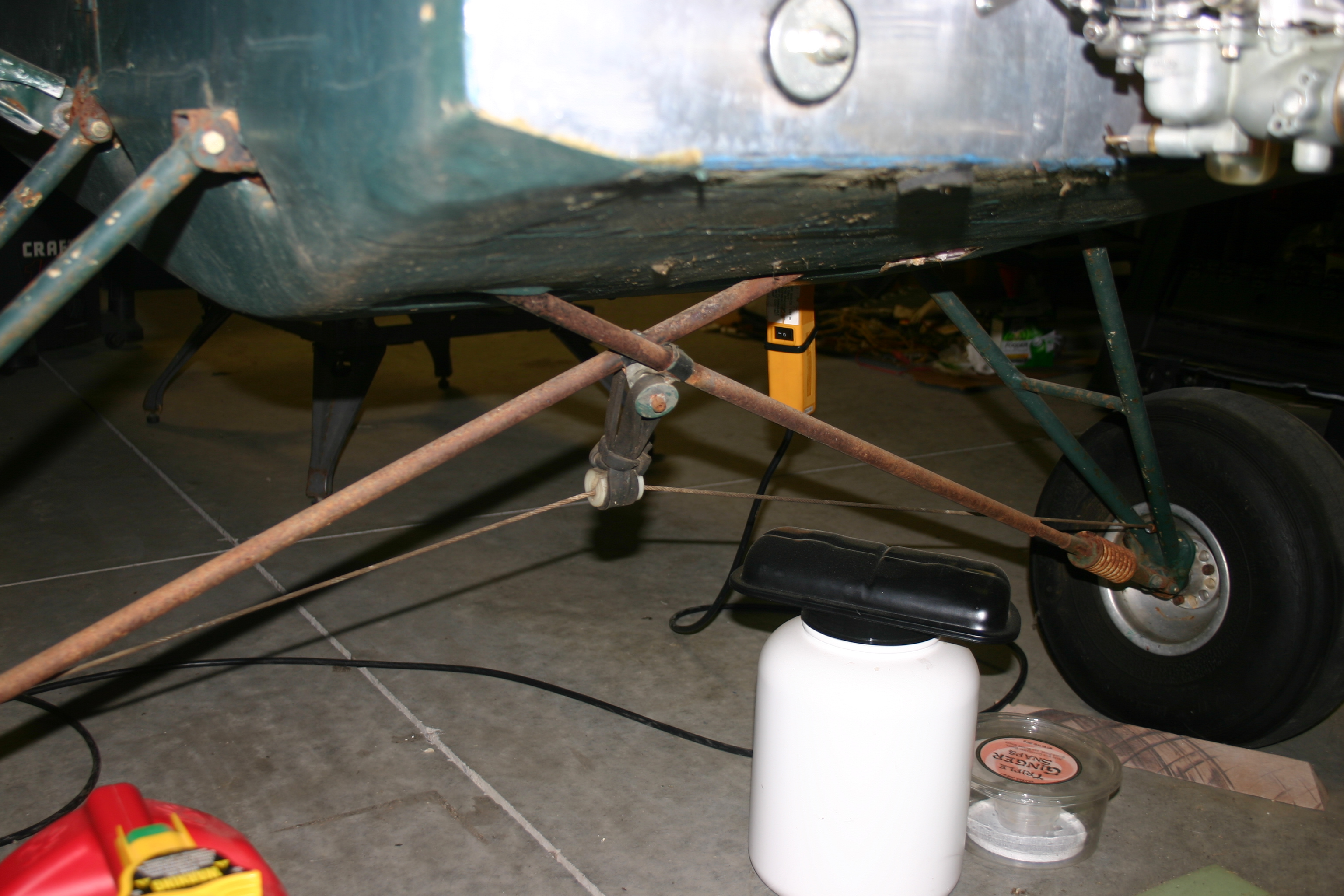

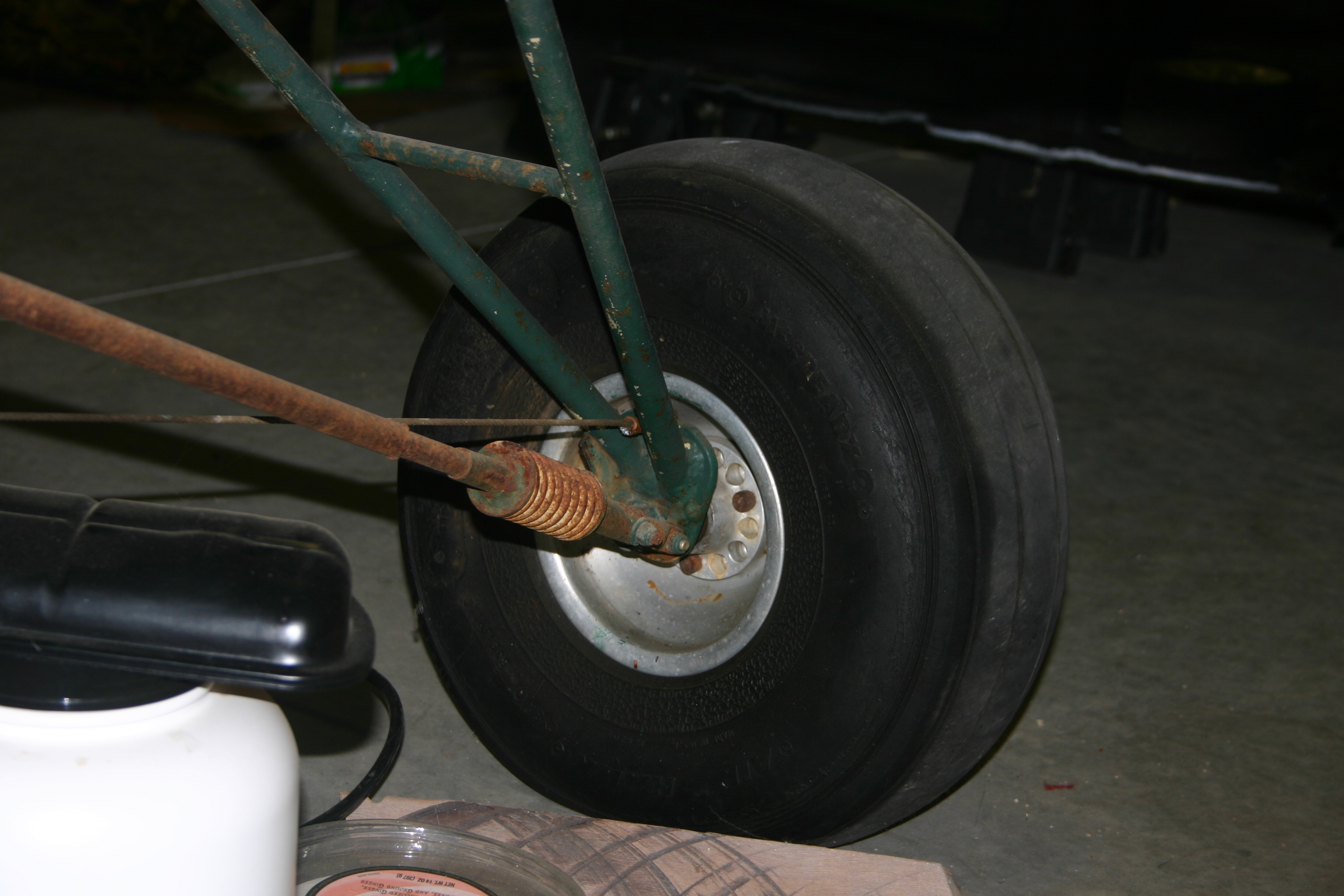

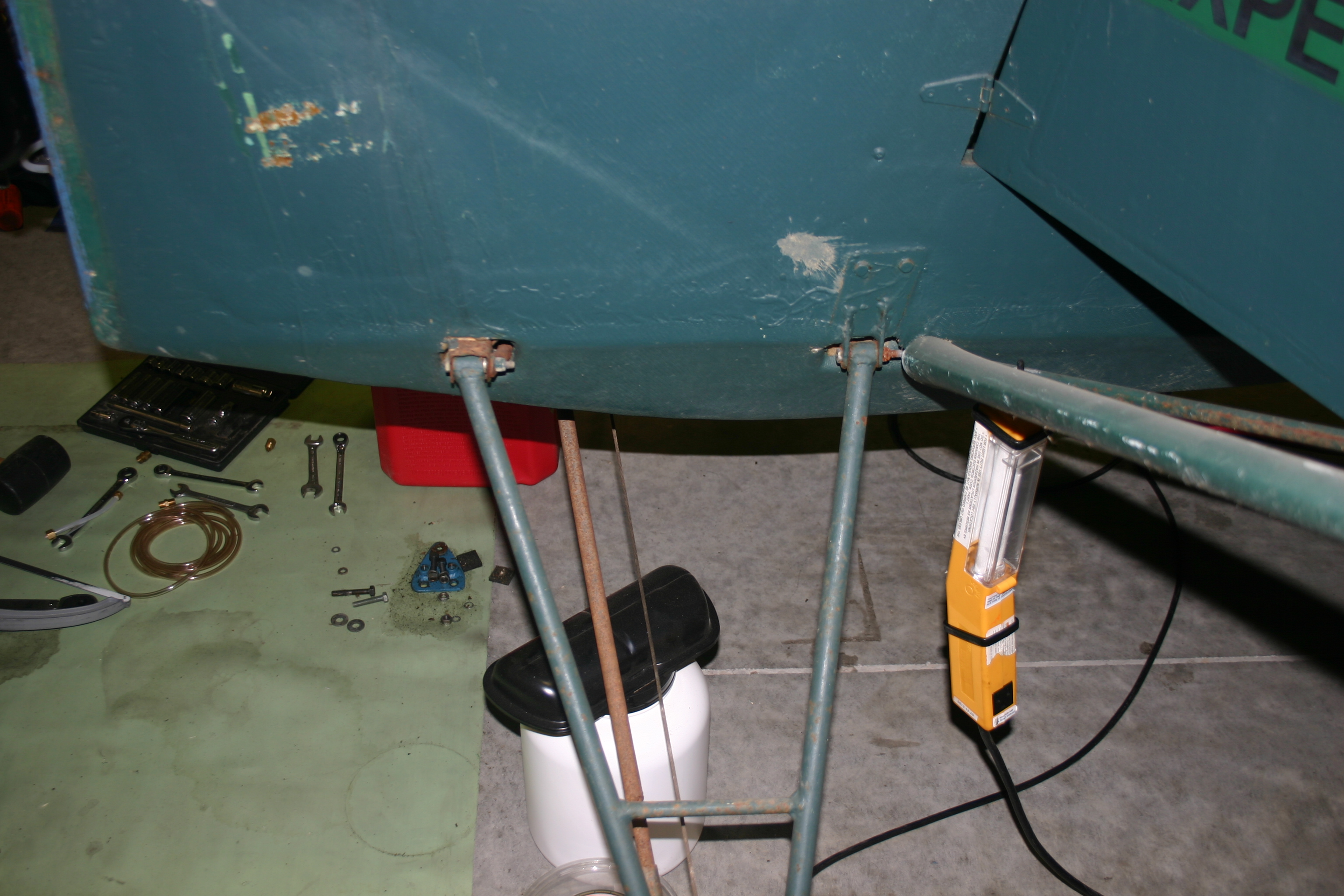

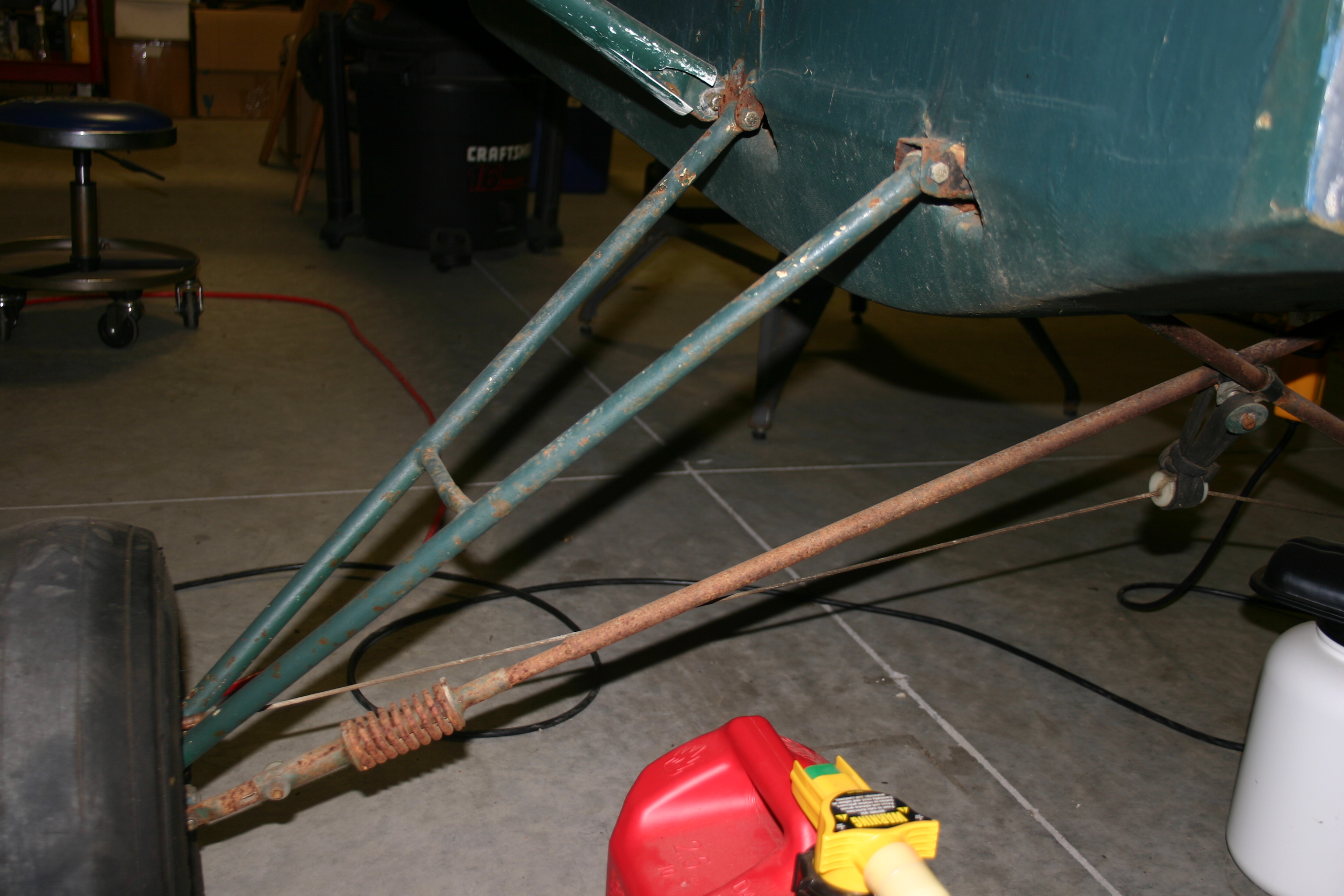

Main landing gear

Day 2 - less ordered...

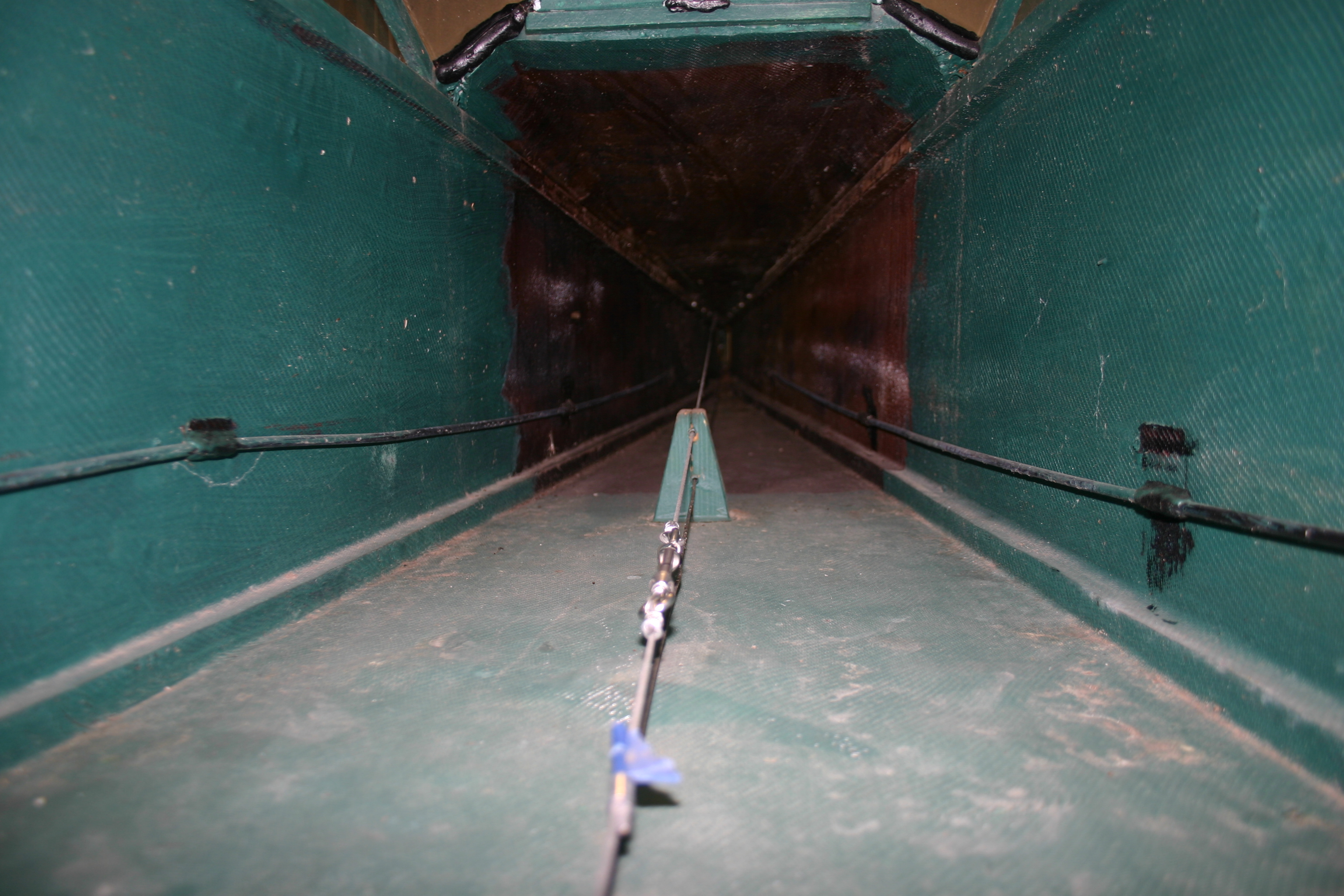

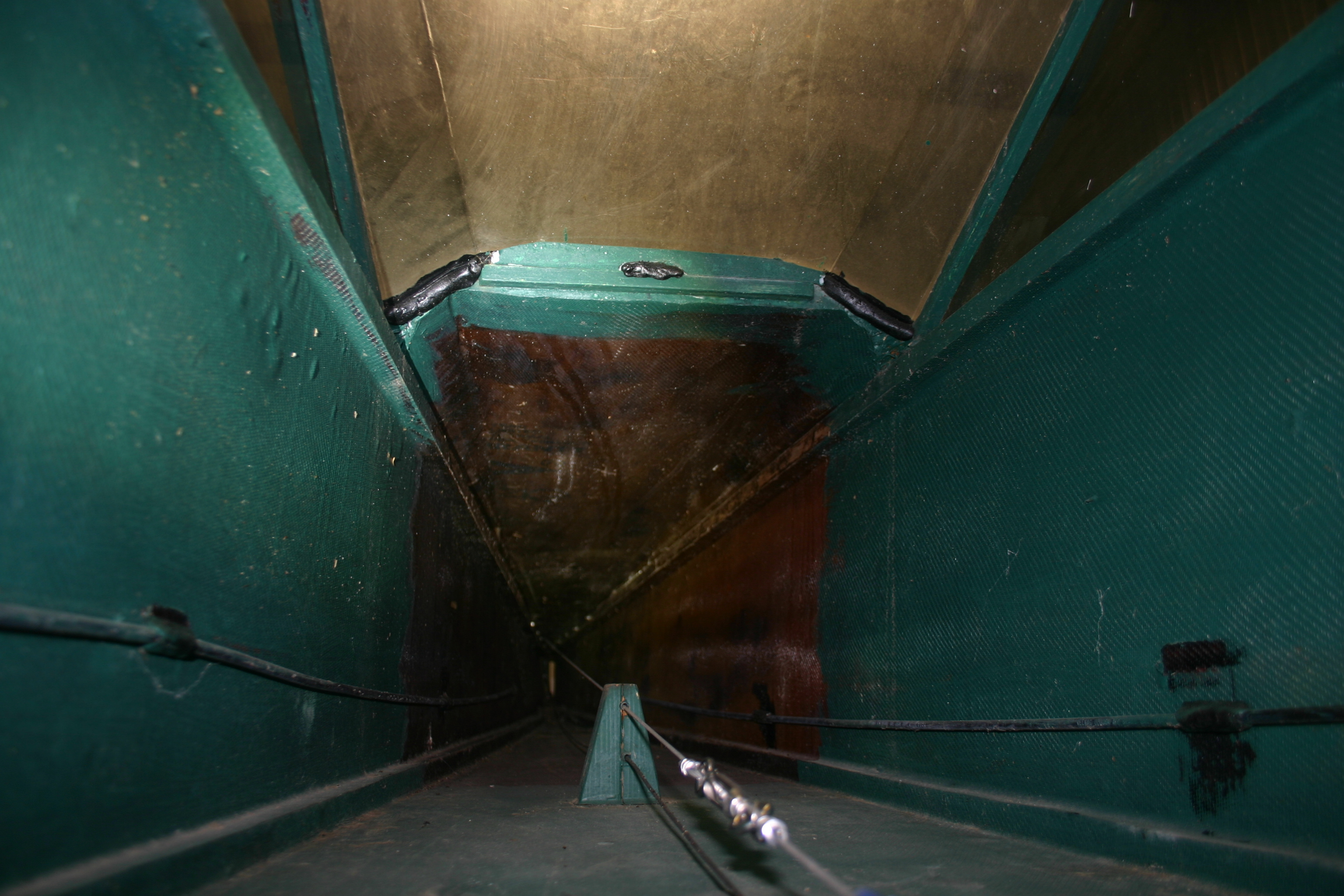

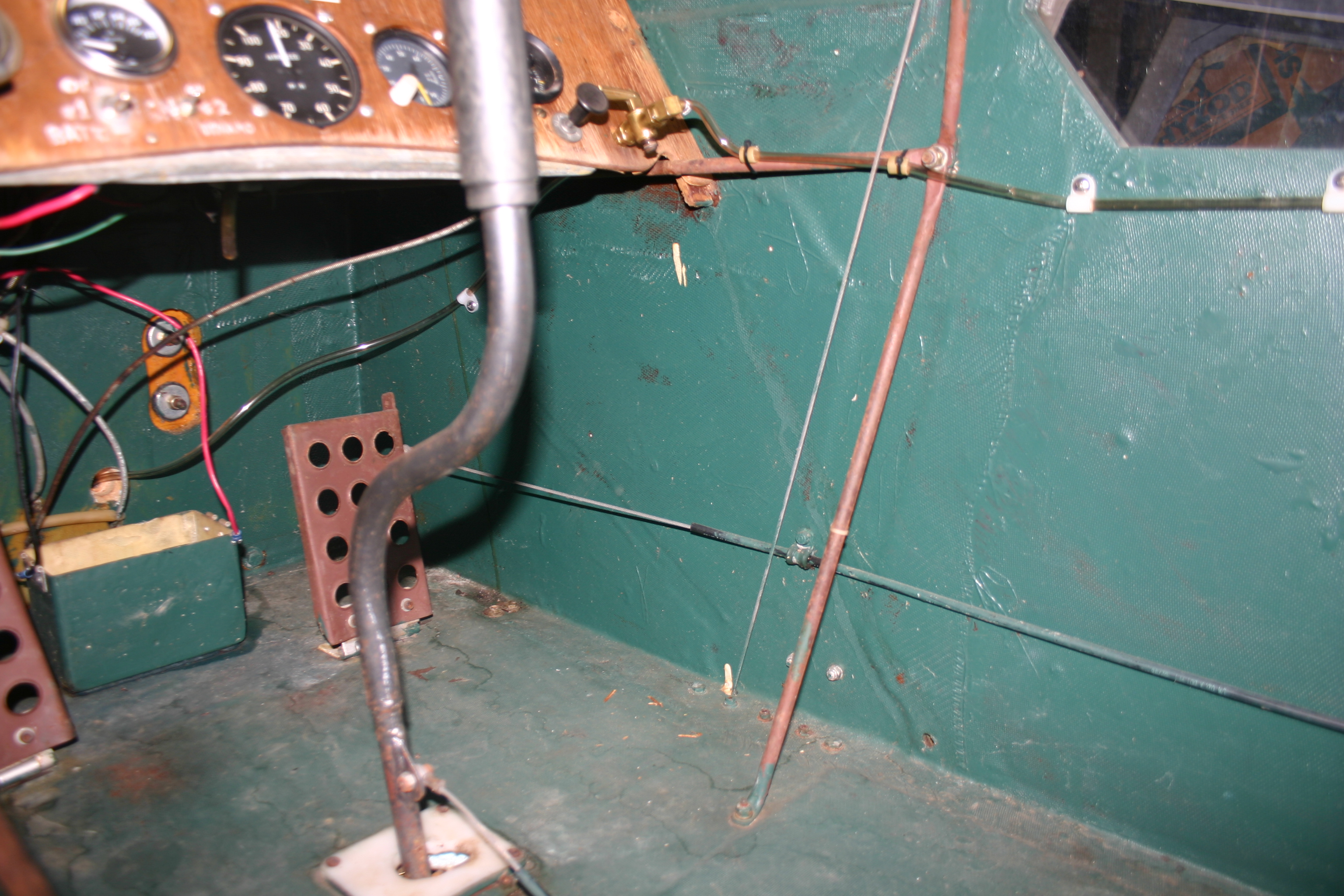

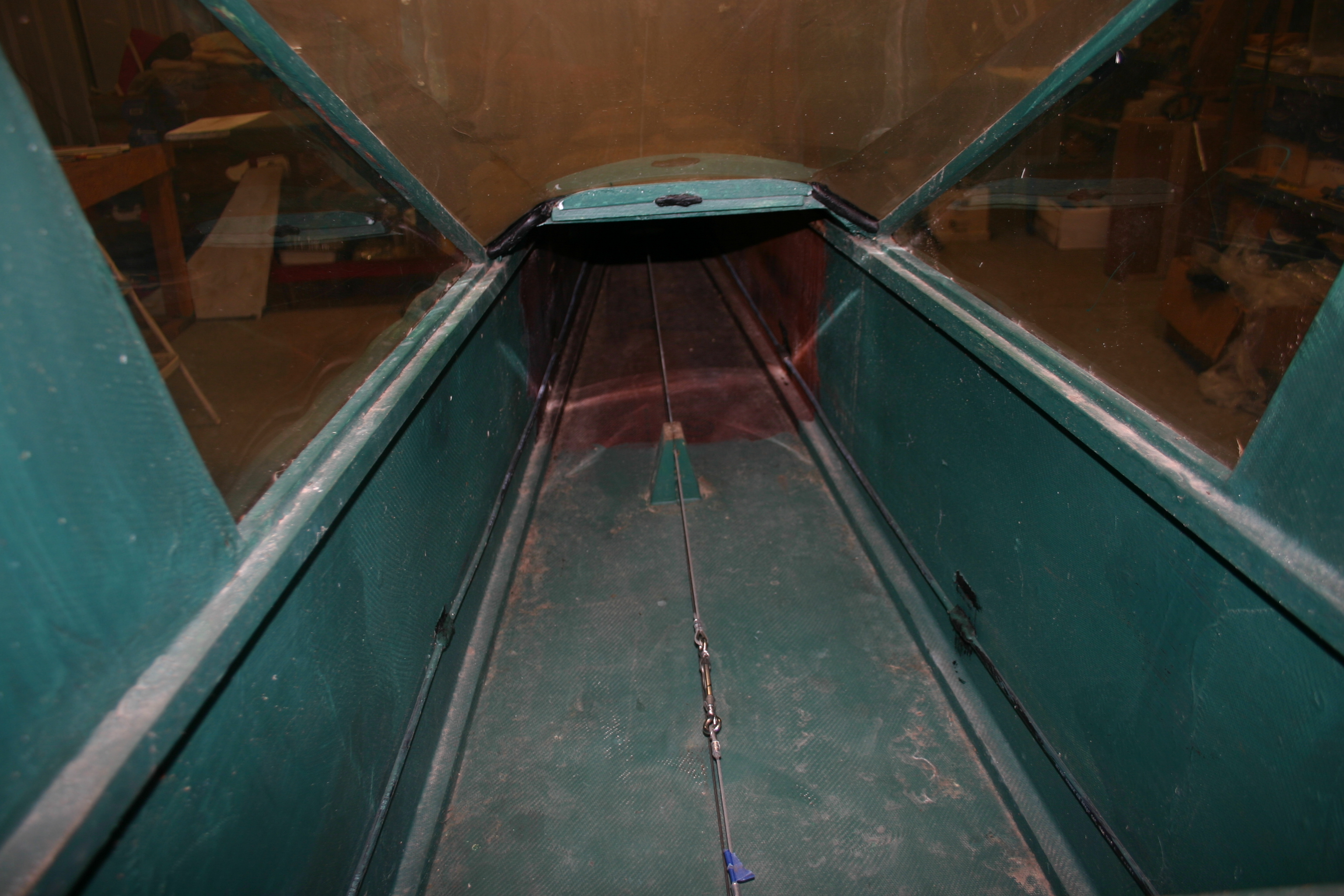

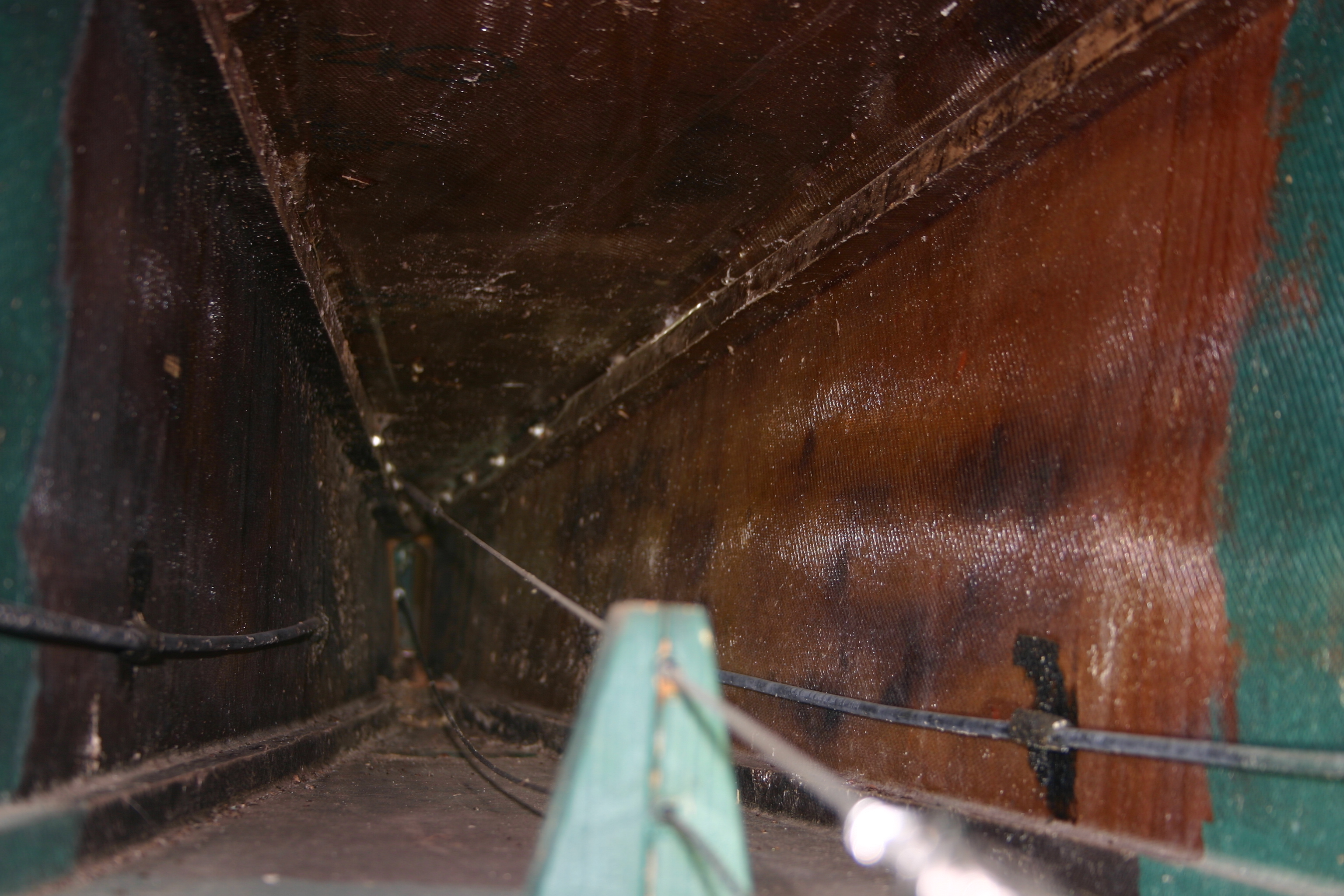

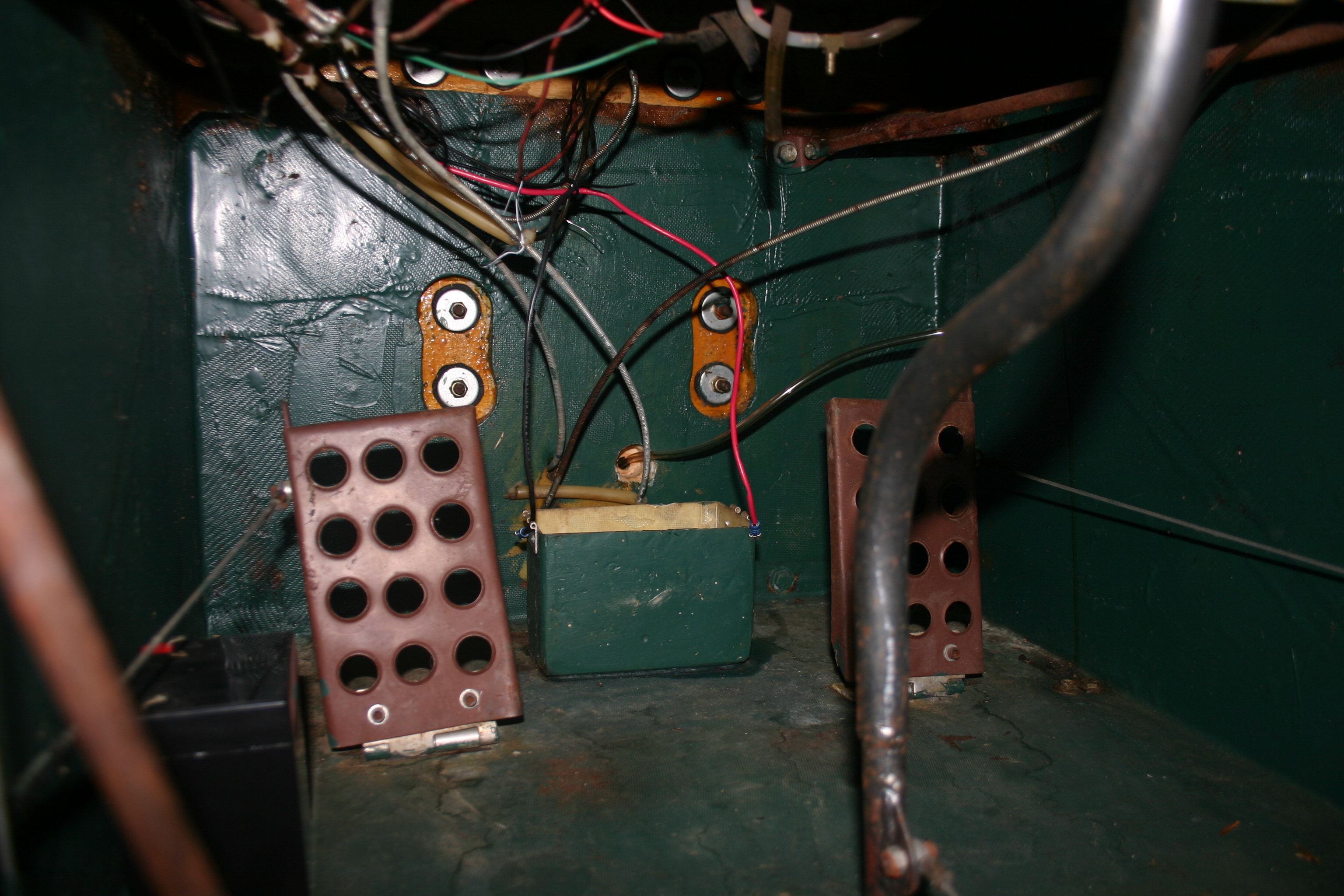

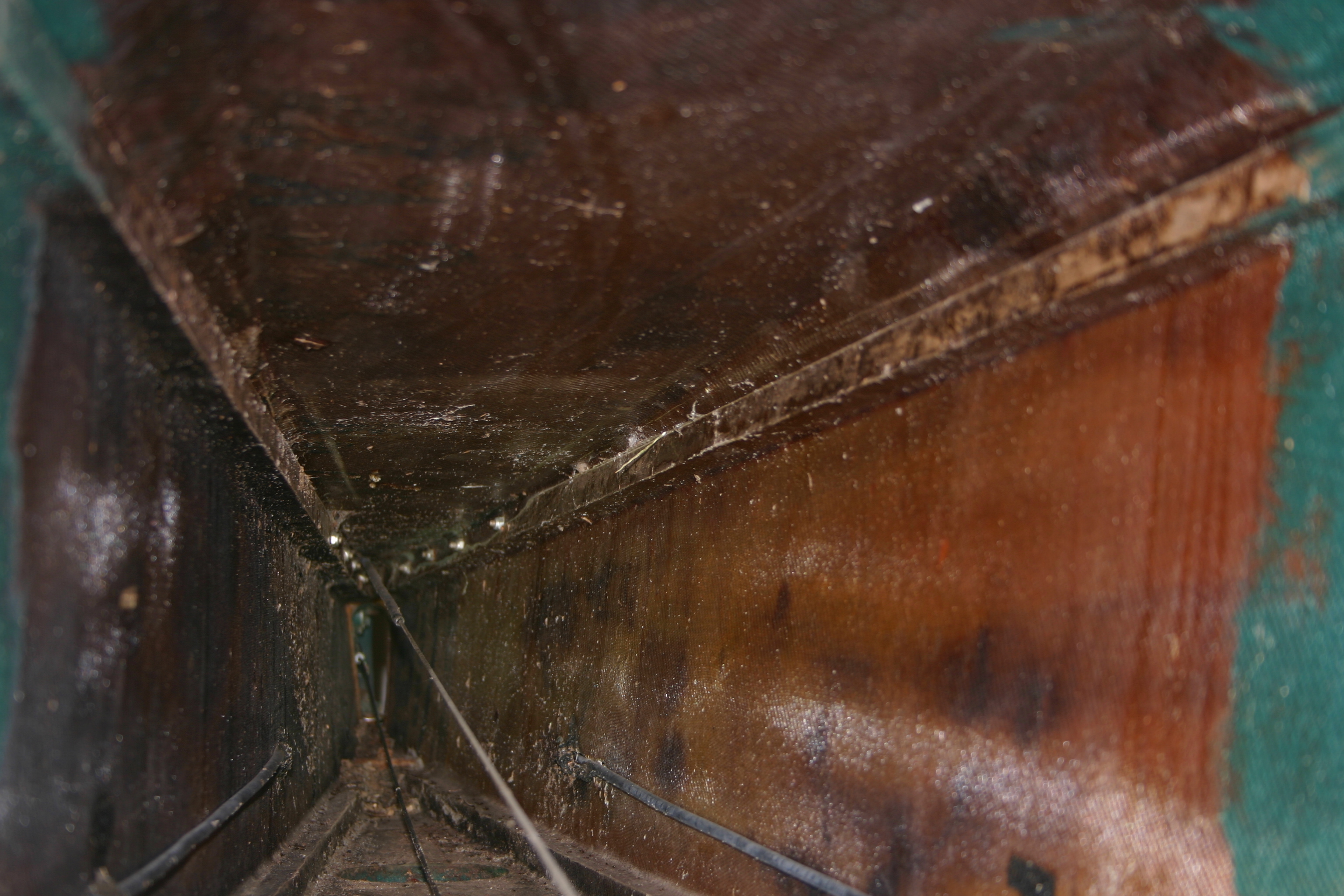

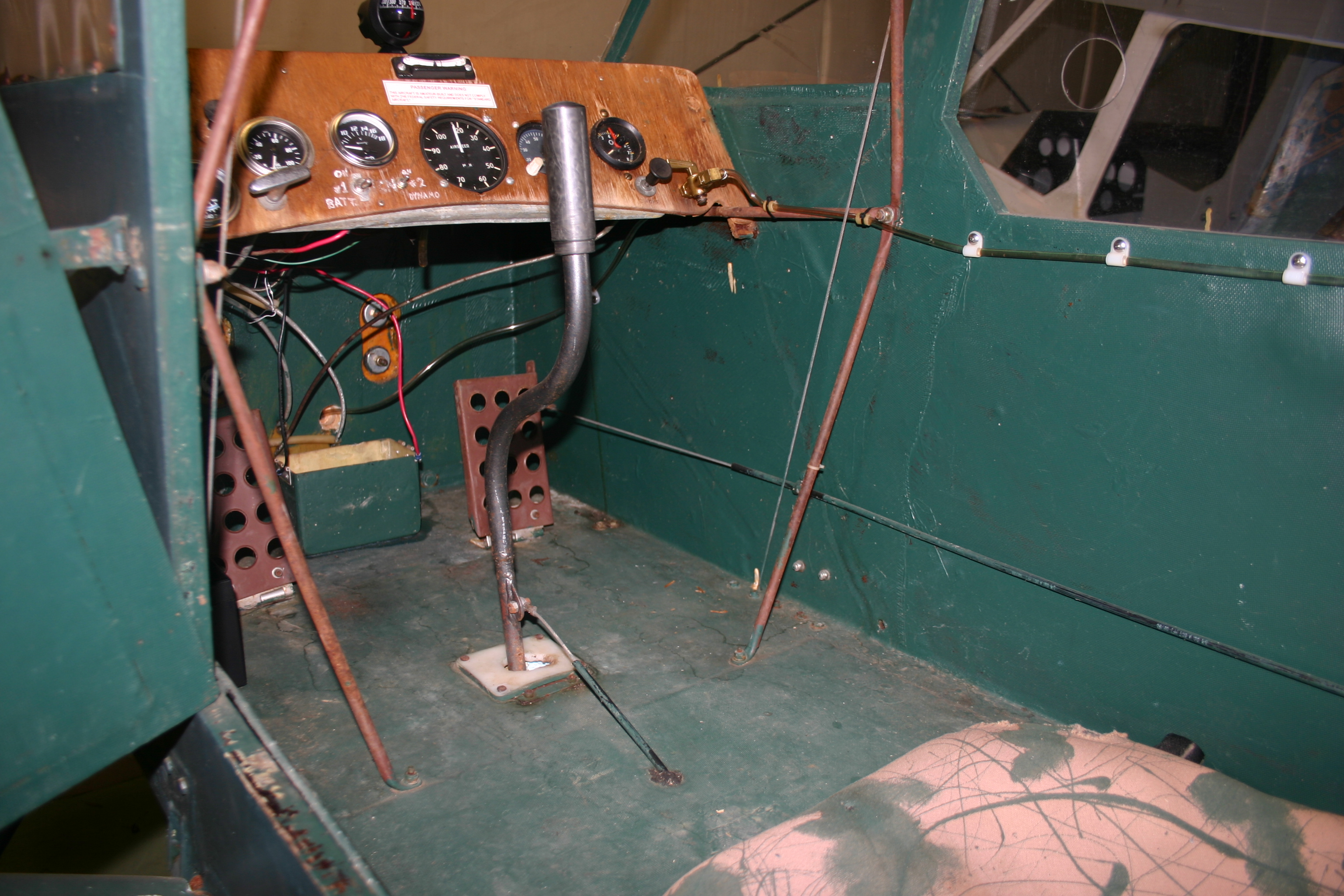

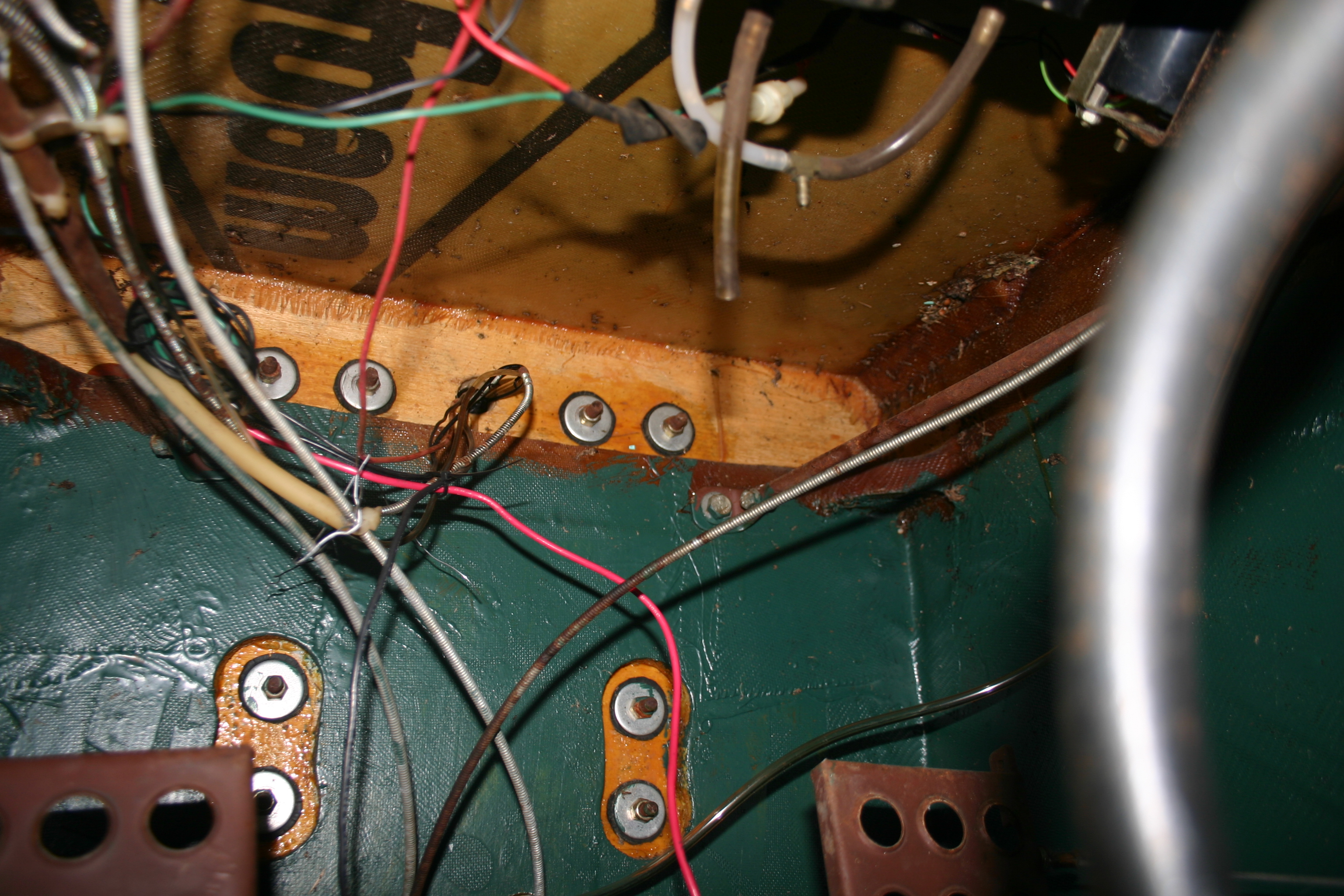

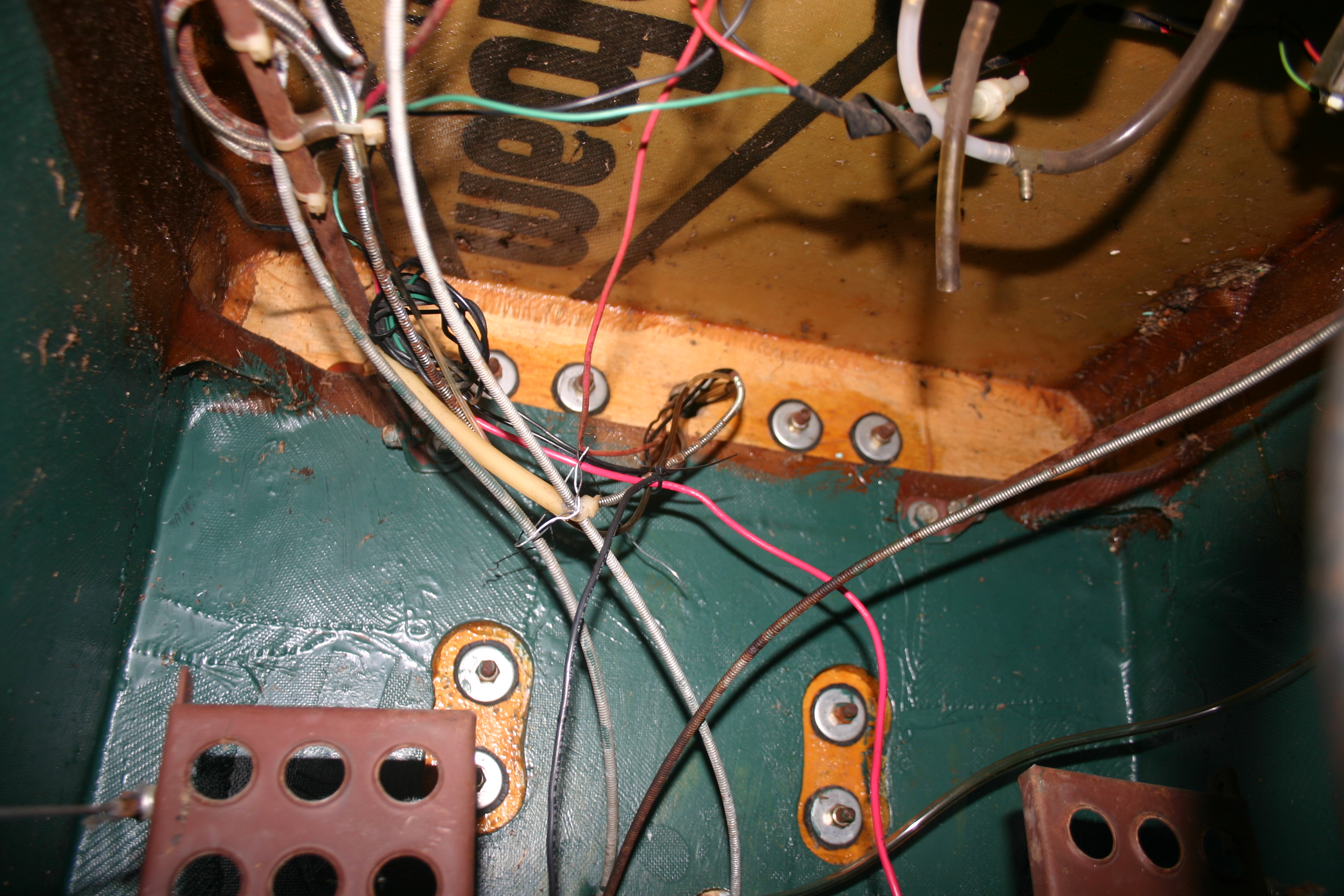

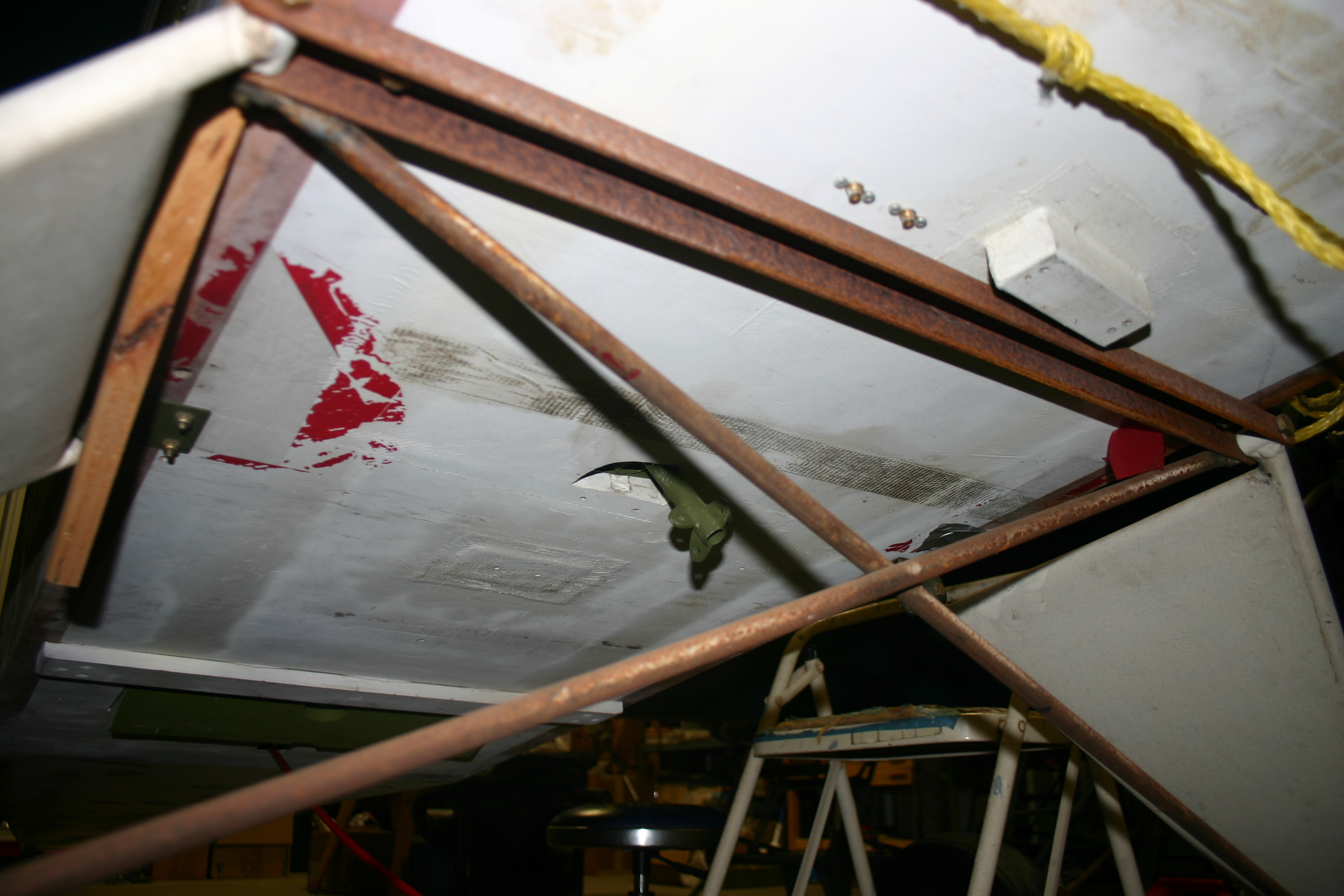

Inside the cockpit and empennage/ tailcone
